Product Details:
|
| Capacity: | 1000Kg | Power Monitor: | LCD Display |
|---|---|---|---|
| Resolution: | 1/250,000 | Test Space: | 500*500*500 |
| Unit: | N,KG,Lb Switchover | Force Range: | 1~100%FS |
| High Light: | paper testing equipment,paper testing machine |
||

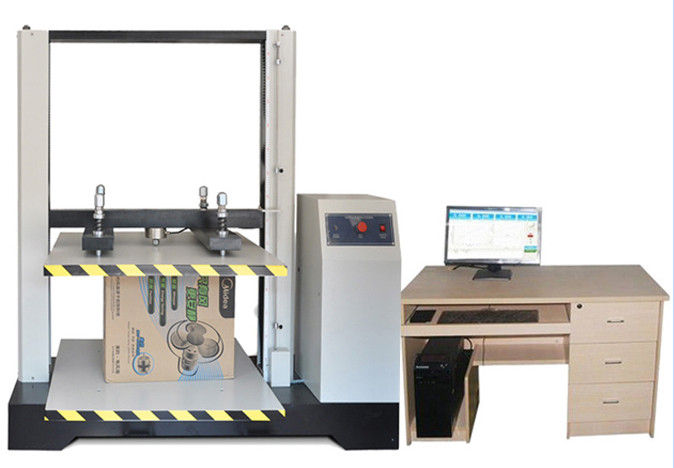

Computer Control Paper Testing Instruments 1000KG Carton Box Compression
Product Introduction:
Quickly detail :
Capacity | 1000kg |
Resolution | 1/250,000 |
Force range | 1~100%FS |
Unit | kg,lb,n,g switchable |
Uses:
Computer Control 1000KG Carton Box Compression Paper Test Instruments is used for measuring the pressure strengthof cartons, containers, etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.
Test Standards:
TAPPI-T804,JIS-Z0212,ISO2872,NF H13-001,CNS 2236/3511
Features:
1.Adopting windows platform, all the parameter settings can be processed in the dialog box, and it operates easily.
2.Computer Control 1000KG Carton Box Compression Paper Test Instruments use a single-screen operation, do not need to switch the screen.
3.With three languges in simplified Chinese, traditional Chinese and English, the software interface can be switched easily.
4.Choosing translational, overlapping mode at the same time to make sure a number of curve date comparison.
5.With a variety of measurement units, measure in imperial&metric are switchable.
6.With automatic magnification function, in order to achieve the most appropriate size of the graphics.
7.With an advanced design of machine structure which have strong rigidness and small volume but light weight.
Specifications:
Capacity | 1000kg |
Resolution | 1/250,000 |
Force range | 1~100%FS |
Unit | kg,lb,n,g switchable |
Test space | 500×500×500mm |
Drive System | servo system,precision ball screw, DC variable speed drive system |
Test speed | 0.5~500mm/min, keyboard inputing |
Dimension | 170×100×185cm |
Weight | About 200kg |
Power | 1φ,220V/50Hz |
Safety Device | Stroke protection,Force and Elongation protection,Emergency stop device, |
Software Functions:
1. Computer Control 1000KG Carton Box Compression Paper Test Instruments use windows working platform, set all parameter with dialog forms and operate easy;
2. Computer Control 1000KG Carton Box Compression Paper Test Instruments use a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7. Computer Control 1000KG Carton Box Compression Paper Test Instruments With many units of measurement, the metric system and british system can switch;
8. Computer Control 1000KG Carton Box Compression Paper Test Instruments Have automatic calibration function;
9. Computer Control 1000KG Carton Box Compression Paper Test Instruments Have user-defined test method function;
10. Computer Control 1000KG Carton Box Compression Paper Test Instruments Have test data arithmetic analysis function;
11. Computer Control 1000KG Carton Box Compression Paper Test Instruments have the function of automatic magnification, to achieve the most appropriate size of graphics;
Pictures:
