Universal Tensile Testing Machine 2000N with 850mm Stroke

Large Image : Universal Tensile Testing Machine 2000N with 850mm Stroke

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Liyi

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Universal Tensile Testing Machine 2000N with 850mm Stroke

Description

Power:	400W	Accuracy:	±0.5%
Voltage:	220V, 380V, 240V, 110V	Protection Class:	IP65
Weight:	75kg	Minimum Test:	3g
Test Speed:	0.1~500mm/min	Power Supply:	220V 50Hz / 380V 60Hz
Test Stroke:	850mm (Contain Clamps)	Motor:	Panasonic Sevor Motor
Max Force:	2000N	Resolution:	1/250,000, 1/150,000
Capacity Choice:	1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000 Kg Optional	Force Error:	±0.5%
Displacement Error:	±0.5%
Highlight:	Universal Testing Machine 2000N capacity , Tensile Testing Machine 850mm stroke , Universal Testing Machine with warranty

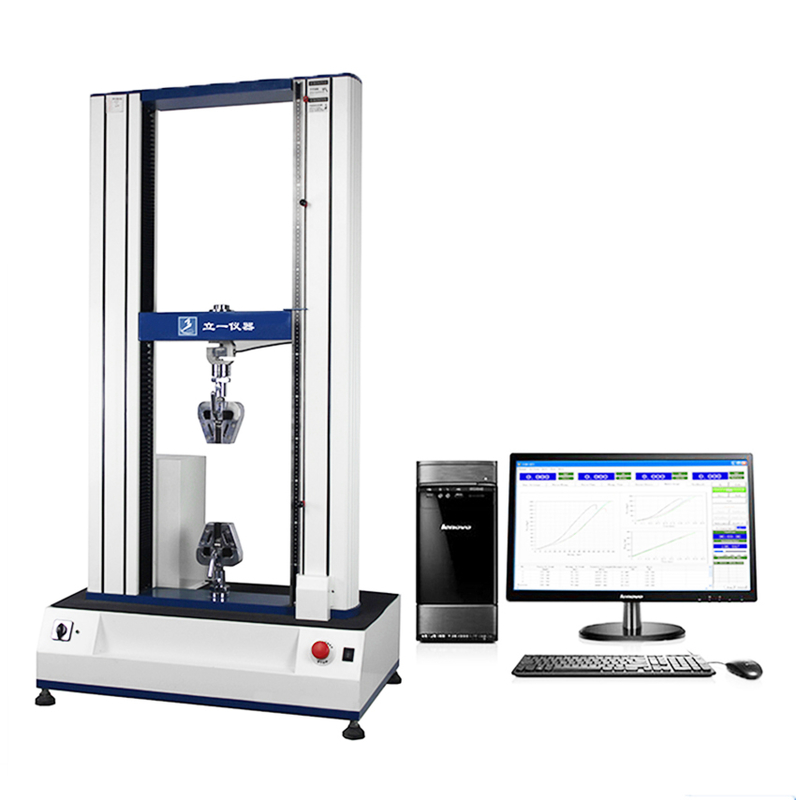

Liyi Manufacturing Universal Tensile Strength Tester / Universal Testing Machine

Product Overview

The Liyi Universal Tensile Strength Tester is specially designed for the fabric industry, capable of testing numerous materials including semi-finished and finished products. This versatile testing machine is widely used for push and pull testing across various industries including metal, yarn, textiles, leather, plastic, rubber, and cable.

Key Features

Built-in printer for test result output

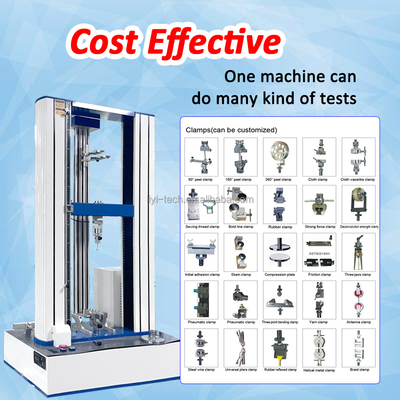

Customizable clamps and test stroke available
Maximum force capacity of 2000N
Complies with multiple international standards: CNS11888, JIS-K6854, PSTC7, ASTM D903, GB/T2790/2791/2792

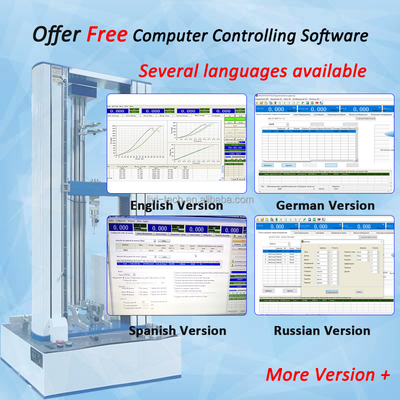

Windows-based operation system
Includes computer, printer, and system operation manual

Technical Specifications

Attribute	Value
Warranty	12 months
Customized Support	OEM, ODM
Power	400W

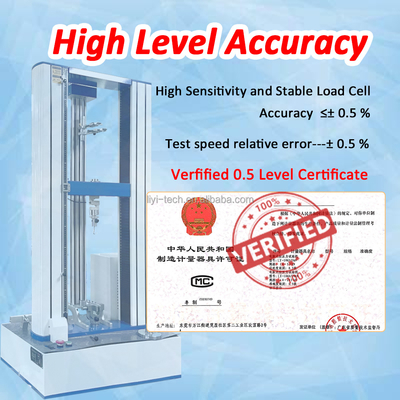

Accuracy	0.5%
Voltage	220V, 380V, 240V, 110V
Protection Class	IP65
Weight	75kg
Minimum Test	3g
Test Speed	0.1~500mm/min
Power Supply	220V 50Hz / 380V 60Hz
Standard	ASTM ISO EN JS
Test Stroke	850mm (Contain Clamps)
Motor	Panasonic Servo Motor

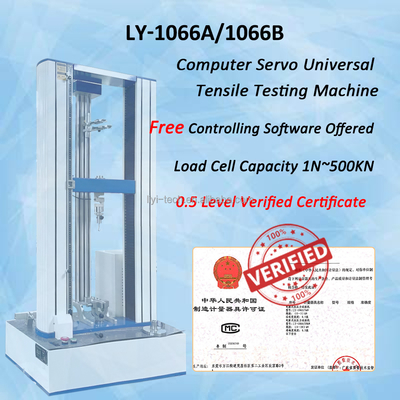

Model Specifications

Specification	LY-1066A	LY-1066B
Range of Speed	0.1~500mm/min	50~500 mm/min
Motor	Panasonic servo motor	AC motor
Resolution	1/250,000	1/150,000
Capacity Choice	1, 2, 5,10, 20, 50,100, 200, 500,1000,2000,5000 kg optional
Stroke	1200 mm (can be customized)
Accuracy	± 0.5 %
Force Relative Error	± 0.5 %
Displacement Relative Error	± 0.5 %
Test Speed Relative Error	± 0.5 %
Weight	150 kg
Dimension (W × D × H)	80 × 50 × 150 cm
Power	1 PH, AC 220 V, 50/60 Hz

Product Images

Frequently Asked Questions

Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers in China. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2 months extension considering sea transportation time. If your machine doesn't work, you can contact us via email or phone, and we will provide solutions within 24 to 48 hours after confirming the problem.

What's the delivery term?

For standard machines, we typically have stock available. If no stock is available, delivery time is usually 15-20 working days after deposit receipt. We can make special arrangements for urgent orders.

Do you accept customization service? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the machine.

How can I install and use the machine?

We provide an English operation video via email after purchase. Most machines are shipped fully assembled - you only need to connect the power cable to begin use. If necessary, we can assist with on-site installation.
