2000kN Automatic Concrete Compression Testing Machine ISO 679

Large Image : 2000kN Automatic Concrete Compression Testing Machine ISO 679

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LIYI
Model Number:	LIYI

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

2000kN Automatic Concrete Compression Testing Machine ISO 679

Description

Maximum Test Force:	2000KN	Test Force Range:	4%-100%FS
Test Force Resolution:	0.01kN	Hydraulic Pump Pressure:	40MPa
Bearing Plate Size:	370*370mm	Piston Diameter:	250mm
Piston Stroke:	50mm	Motor Power:	0.75 Kw
Machine Weight:	1600kg	Accuracy:	±1%
Max Compression Space:	250mm	Compression Plate Size:	260×300mm
Rate Of Work:	1.0kW	Fuse:	8A
Power Supply:	380V±10%V,50Hz
Highlight:	2000kN concrete compression tester , automatic concrete testing machine ISO 679 , universal testing machine with warranty

Liyi ISO 679 2000KN Full Automatic Concrete Compression Testing Machine

Key Specifications

Attribute	Value
Maximum test force (kN)	2000KN
Test force testing range (kN)	4%-100%FS
Test force resolution	0.01kN
Hydraulic pump pressure rated	40MPa
Fluctuation bearing plate size	370*370mm
Piston diameter	250mm
Piston stroke	50mm
Motor power	Three-phase 0.75 kw
Weight	1600kg
Certificate	CE ISO
Customized support	OEM, ODM
Power	Electronic
Warranty	12 months

Product Description

The Liyi ISO 679 2000KN Full Automatic Concrete Compression Testing Machine is designed for compression strength testing of building materials including brick, cement, concrete specimens, and components. With special accessories, it can also perform bending, flexure resistant tests, and compression tests for red brick.

This machine complies with international standards including ISO 679, ASTM C39, and BS-EN 1881, among others.

Key Features

Hydraulic loading system with electronic load measurement
Digital display for load, loading speed, and maximum load
Overload protection and power data functions
Compact structure with high precision sensor testing
Stable test force values with digital display
Maximum peak holding test force capability
Built-in results printing function

Technical Specifications

Model	LY-2000
Max force	2000kN
Accuracy	±1%
Test force range	0-2000 KN
Working pressure	40MPa
Piston stroke	50mm
Max compression space	250mm
Compression plate size	260×300mm
Rate of work	1.0kW
Machine weight	About 750KG
Machine size (L×W×H)	About 800×500×1300mm
Power	380V±10%V, 50Hz

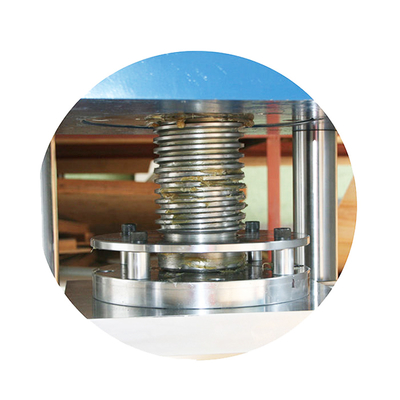

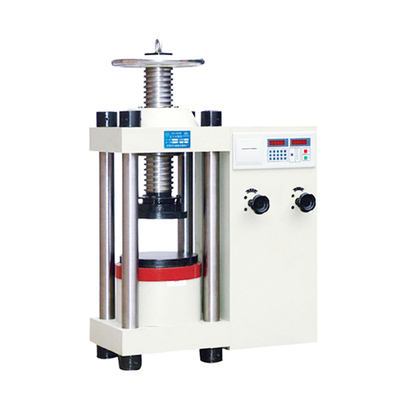

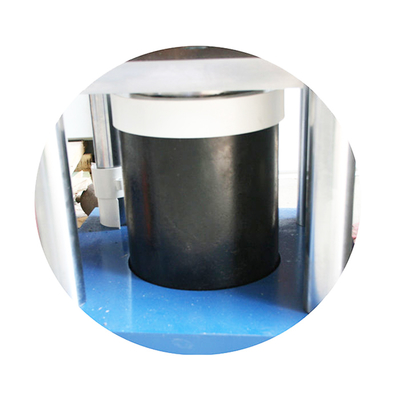

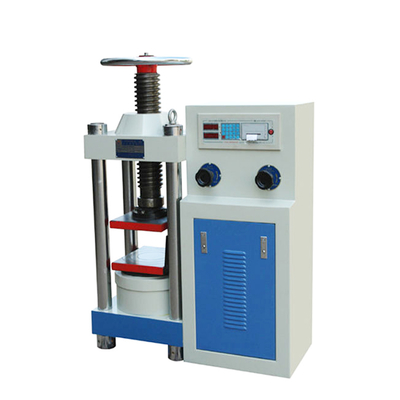

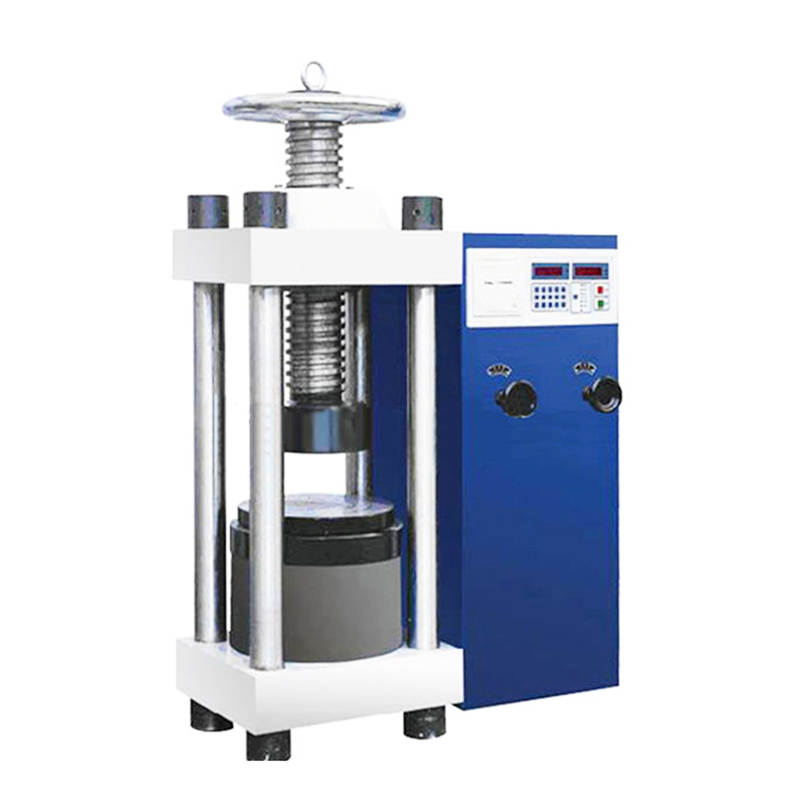

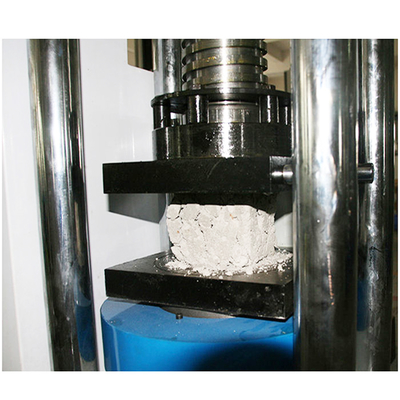

Product Images

Frequently Asked Questions

1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of testing equipment. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer free maintenance for 12 months, with an additional 2-month extension to account for sea transportation time.

If your machine requires service, you can contact us via email or phone. We will diagnose the problem through conversation or video chat if necessary, and provide a solution within 24 to 48 hours.

2. What's the delivery term?

Standard machines are typically available from stock. If not in stock, delivery time is 15-20 working days after deposit receipt for standard machines. We can arrange expedited production for urgent orders.

3. Do you accept customization service? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.

4. How can I install and use the machine?

We provide English operation videos via email after purchase. Most machines are shipped fully assembled - you only need to connect the power cable to begin operation. If required, we can also assist with on-site installation.
