Hydraulic Universal Testing Machine 100kN-1000kN for Tensile Strength

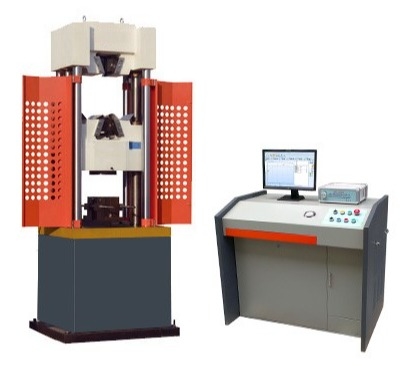

Large Image : Hydraulic Universal Testing Machine 100kN-1000kN for Tensile Strength

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LIYI

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Hydraulic Universal Testing Machine 100kN-1000kN for Tensile Strength

Description

Max Load:	300kN, 600kN, 1000kN, 2000kN	Test Range:	6KN-300kN, 12KN-600kN, 20KN-1000kN, 40KN-2000kN
Test Force Accuracy:	±1%	Displacement Resolution:	0.01mm
Deformation Test Accuracy:	±0.5%	Max Drawing Space:	800mm, 850mm
Max Compressing Space:	700mm	Flat Sample Clamp Thickness:	0-15mm, 0-40mm, 0-60mm
Round Sample Clamp Diameter:	φ6-φ26mm, φ13-φ40mm, φ13-φ60mm, φ13-φ70mm	Bending Test Branch Space:	450mm
Branch Width:	140mm	Branch Diameter:	30mm

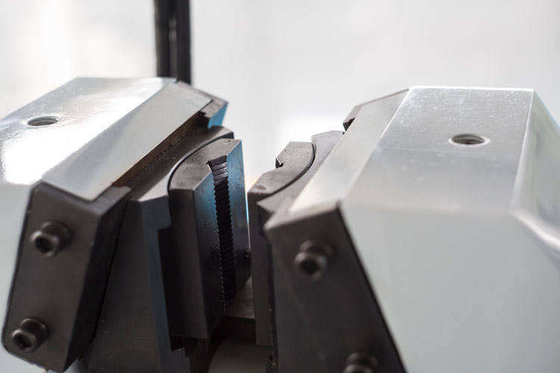

Piston Stroke:	250mm	Clamp Method:	Built-in Hydraulic Clamp
Outer Dimension:	990×600×2435mm, 990×600×2453mm, 1100×770×2490mm, 1160×1100×2600mm	Complete Weight:	2800kg, 3000kg, 4700kg, 6500kg
Highlight:	Hydraulic Universal Testing Machine 100kN , Universal Testing Machine for tensile strength , 1000kN hydraulic testing machine

100kN-1000kN Universal Steel Test Equipment Hydraulic Fastener Tensile Strength Testing Machine

Product Specifications

Attribute	Value
Warranty	1 YEAR
Customized Support	OEM, ODM, OBM
Power	Electronic
Test Force Accuracy	±1%
Displacement Resolution	0.01mm
Deformation Test Accuracy	±0.5%
Max Drawing Space	800mm
Piston Stroke	250mm
Weight	6500kg

Product Description

The Liyi hydraulic universal testing machine is designed for tension, compression, bending, and shear testing of metal materials. With additional accessories, it can perform various mechanical performance tests.

Key Features

Bottom-mounted oil cylinder with tension space above the load frame

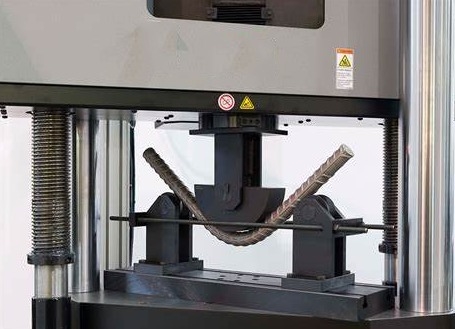

Compression and bending space between lower cross head and working table
Motor-driven lower cross head with decelerator, chain transmission, and screw pair for precise space adjustment
Load cell measurement system with computer control and display

Technical Specifications

Model	LYH-300D	LYH-600D	LYH-1000D	LYH-2000D
Max Load (kN)	300	600	1000	2000
Test Range	6KN-300kN	12KN-600kN	20KN-1000kN	40KN-2000kN
Max Drawing Space	800mm	800mm	850mm	800mm
Max Compressing Space	700mm	700mm	700mm	700mm
Complete Weight	2800kg	3000kg	4700kg	6500kg

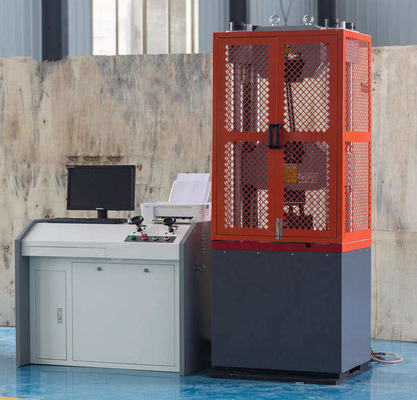

Product Images

Frequently Asked Questions

Are you the manufacturer? What about after-sales service and warranty?

Yes, we are a professional manufacturer of testing equipment. All machines come with 12 months warranty (extendable to 14 months for overseas shipments). We provide free maintenance during warranty period and offer technical support via email or video call with solutions typically provided within 24-48 hours.

What is the delivery time?

Standard machines are typically available for immediate shipment. For out-of-stock items, delivery time is 15-20 working days after deposit. Rush orders can be accommodated with special arrangements.

Do you offer customization and branding options?

Yes, we provide OEM and ODM services including custom machine configurations and branding with your logo.

How do I install and use the machine?

Most machines ship fully assembled - just connect power to begin operation. We provide English operation videos and can assist with on-site installation if needed.

Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high-tech enterprise specializing in environmental testing equipment. With advanced technology and experienced personnel, we serve customers in over 150 countries from our manufacturing base in Dongguan, Guangdong, with additional offices in Kunshan, Jiangsu for Eastern China support.

Our product range includes environmental test chambers, universal tensile testers, UV aging chambers, industrial furnaces, and material testing equipment. We combine international standards with customer-specific requirements to deliver quality testing solutions.
