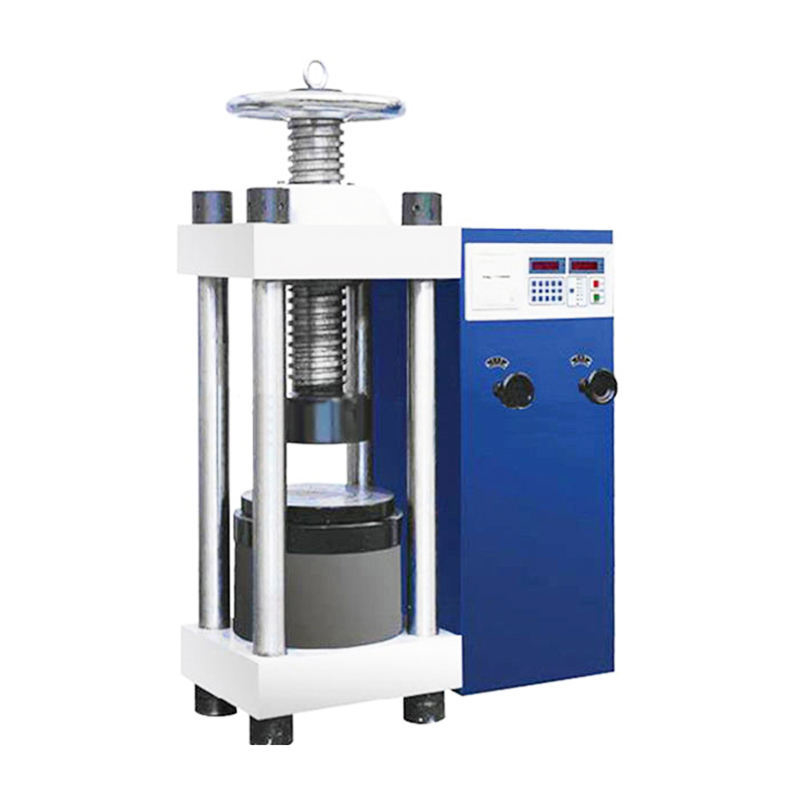

2000kN Automatic Concrete Compression Testing Machine

Large Image : 2000kN Automatic Concrete Compression Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LIYI

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

2000kN Automatic Concrete Compression Testing Machine

Description

Maximum Test Force:	2000kN	Test Force Resolution:	0.01kN
Hydraulic Pump Pressure:	40MPa	Bearing Plate Size:	260*300mm
Piston Diameter:	250mm	Motor Power:	380V±10%V,50Hz
Accuracy:	±1%	Rate Of Work:	1.0kW
Machine Weight:	750kg	Piston Stroke:	50mm
Max Compression Space:	250mm	Compression Plate Size:	260×300mm
Printing Paper Size:	45mm	Fuse:	8A
Machine Dimensions:	800×500×1300mm
Highlight:	2000kN concrete compression tester , automatic concrete testing machine , universal compression testing machine with warranty

Liyi Automatic Concrete Compression Testing Machine

Key Specifications

Attribute	Value
Maximum test force (kN)	2000
Test force resolution	0.01kN
Hydraulic pump pressure rated	40MPa
Fluctuation bearing plate size	260*300mm
Piston diameter	250mm
Motor power	380V±10%V,50Hz
Accuracy	±1%
Machine weight	About 750kg
Warranty	12 months

Product Description

The Liyi Automatic Concrete Compression Testing Machine is designed for compression strength testing of building materials including brick, cement, concrete specimens, and components. With special accessories, it can also perform bending, flexure resistant tests, and compression tests for red brick.

This machine complies with international standards including ISO 679, ASTM C39, and BS-EN 1881. It features hydraulic loading, electronic load measurement, digital display of load and loading speed, peak load holding, overload protection, and data printing capabilities.

Key Features

Compact structure with high-precision force sensor
Digital display of test force and loading speed
Maximum peak holding function
Built-in results printing capability
Stable performance with ±1% accuracy
Automatic operation for efficient testing

Technical Specifications

Max force	2000kN
Test force range	0-2000 KN
Working pressure	40MPa
Piston stroke	50mm
Max compression space	250mm
Compression plate size	260×300mm
Machine size (L×W×H)	800×500×1300mm

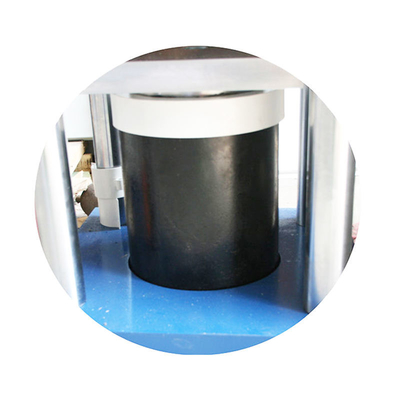

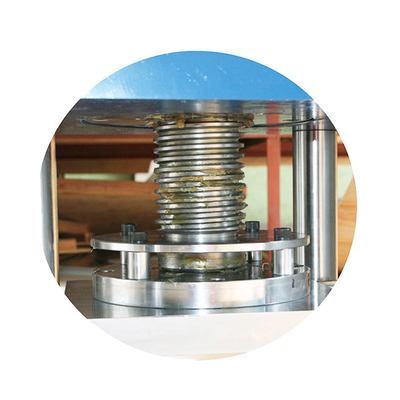

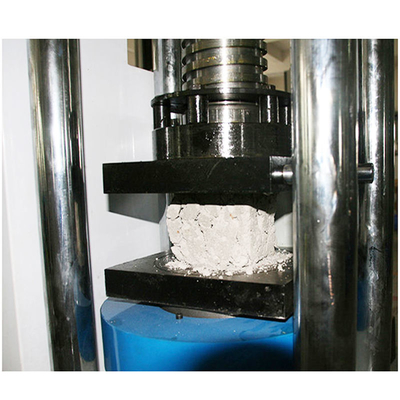

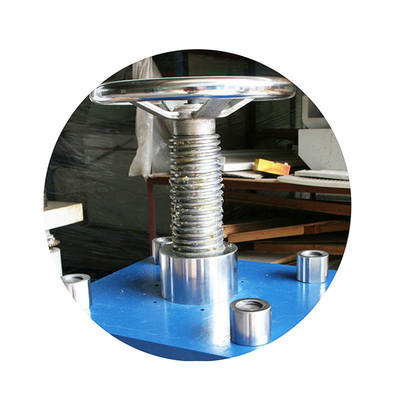

Product Images

Manufacturer Information

Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing and manufacturing various environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we serve customers in over 150 countries.

Frequently Asked Questions

Are you the manufacturer? What about after-sales service and warranty?

Yes, we are a professional manufacturer with 12 months warranty on all machines. We offer free maintenance during warranty period and extend 2 months for sea transportation. Technical support is available via email or video chat, with solutions typically provided within 24-48 hours of problem confirmation.

What is the delivery time?

Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.

Do you accept customization and OEM services?

Yes, we offer both standard and customized machines according to customer requirements, including OEM and ODM services with customer logos.

How can I install and use the machine?

Most machines are shipped fully assembled - just connect power to begin operation. We provide English operation videos via email, and can assist with on-site installation when necessary.
