Corrosion Resistance Salt Spray Test Chamber

Corrosion Resistance Salt Spray Test Chamber
Corrosion Resistance Salt Spray Test Chamber Corrosion Resistance Salt Spray Test Chamber

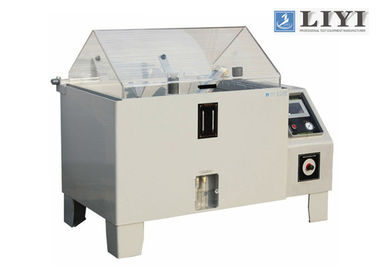

Large Image :  Corrosion Resistance Salt Spray Test Chamber

Product Details:
Place of Origin: China
Brand Name: LIYI
Model Number: LY-609-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: US$899~1899/set
Packaging Details: export polywood packing
Delivery Time: 7 - 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month

Corrosion Resistance Salt Spray Test Chamber

Test Chamber Capacity(L): 108L Test Chamber Size: 60*45*40 Cm
Max Volum Of Test Liquid(L): 15L Volume: 107*60*118cm
Voltage: 220V Controller: PLC Touch Screen Controller
Warranty Period: 12 Months Usage: Salt Spray Corrosion Test
Power: Electronic
High Light:

salspray test equipment


salt spray testing machine


Programmable Salt Spray Test Chamber For Corrosion Resistance Test





Salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.


Design standards:


ISO9227,CNS3627,3885,4159,7669,8886,JIS D-0201,H-8502,H-8610,K-5400,Z-2371,ISO 3768,3769,3770,ASTM B-117,B-268,GB-T2423,GJB 150.



  • LCD display and touch screen programmable controller.
  • Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products, strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.
  • Controller are in the same panel, the operation simple and clear.
  • Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test laboratory
  • The cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
  • A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.
  •  Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.

The Main Technical Parameter:


Model:                                       LY-609-60

Inner Box Size (L×W×H)

60×40×45 cm
Outside Box Size(L×W×H) : 107×60×118 cm
Temperature Range : 35°C~55 °C
Temperature Fluctuations : ≤±0.5°C
Temperature Uniformity : ±1°C
Brine Temperature : 35°C±1°C
Spray Quantity : 1.0~2.0 ml / 80cm2 / hr
Lab Volume : 108L
Brine Tank Capacity : 15L
Power : AC220V,10A
Accessories : Testing Salt/ Measuring tank/ Equipment  each 1 set
Equipment Material Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent  P.V.C. rigid plastic board
Test Chamber Temperature Salt Spray Method (NSS ACSS)35±1°C
Corrosion-resistant Testing Method(CASS)50±1°C
Saturated air Barrel Temperature Salt Spray Method (NSS ACSS)47±1°C
Corrosion-resistant Testing Method(CASS)63±1°C
PH Salt Spray Method (NSS ACSS6.5~7.2)Corrosion-resistant Testing Method(CASS)3.0~3.2
Multiple Safety Protection Devices : Current discharge protection, over pressure protection,over temperature protection, over load fuse protection
