Product Details:
|
Model: | LY-ZW | Temperature Range: | RT+10°C~70°C |
---|---|---|---|
Himidity Range: | ≥95%R.H | Ultraviolet Wavelength: | 290nm~400nm |
Material: | #SUS 304 Stainless Steel | Controller: | TEMI880 |
UV Lamp: | UVA | Function: | UV, Water Spray, Condensation |
Dimensions: | 70*135*145cm | Rate Of Lamp: | 40W |
High Light: | accelerated uv testing,accelerated weathering machine |

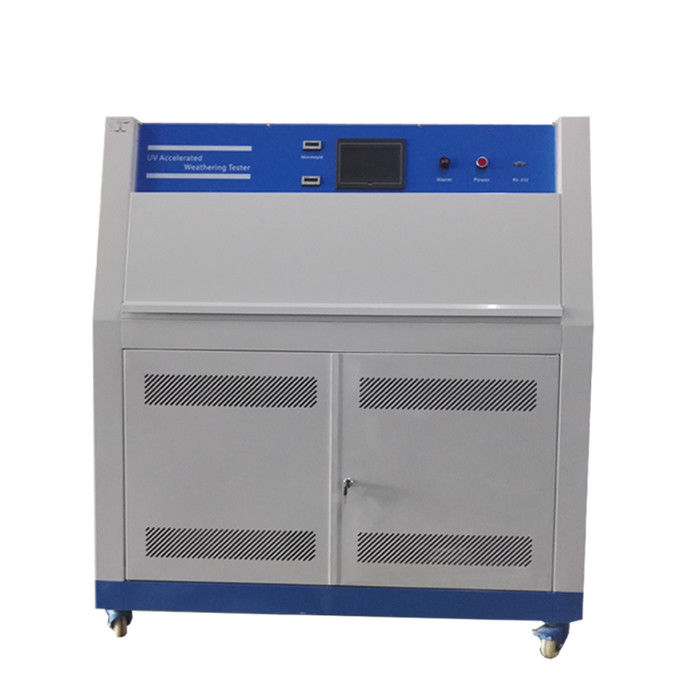

Programmable UV Accelerated Aging Chamber / UV Light Accelerator Test Machine
Standard accessories:
1. One copy of English user guide.
2. One CD of controller software and operation instruction video.
Kindly note:
1. Please advise whether 8 UVA or 8 UVB lamps are needed when order.
2. UVA-340 lamps can well simulate the natural outdoor exposure. UVB-313 lamps are able to do accelerated test more quickly via stronger irradiation.
Application
The UV weather stability test chamber can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
Uses
UV weather stability test chamber is the most widely used UV Weathering tester in the world,there are thousands of ultraviolet aging testers coming into use. It has become the standard of the UV test, fit standards of ISO,ASTM,DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT,ect. It can simulate the damage of sunshine, rain, dew to the material quickly and exactly. Damage types including bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation need to be engenderd in months or years but can engender in a few days or weeks.
Features
After directly exposed to the sun in the shipping container, some materials, like rubber & shoes, may fade, discolor, and age. And UV aging test machine can simulate the circumstances of sunshine radiation in containers to test the resistance to discoloration of materials.
1.The UV weather stability test chamberis designed according to uses’ operation , it’s easy to operate, safe and reliable.
2.The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3.The door rotating up does not interfere with the operation and the tester takes a very small space only.
4. UV weather stability test chamber is unique condensating system can be contented by tap water.
5.The heater is under the container rather than in the water, which is long life, easy to mainten.
6.The water level controller is outside the box, easy to monitor.
7. UV weather stability test chamber has truckles, convenient to move.
8.Computer programming is convenient, automaticly alarming when incorrect operated or faulted.
9. UV weather stability test chamberhas irradiance calibrator to extend the life of the lamp tube(more than 1600h).
10. UV weather stability test chamber has Chinese and English instruction book, convenient to consult.
11. UV weather stability test chamber Divided into three types: common, light irradiance controlling, spraying.
Mode | LY-ZW | |
Inside Dimensions (CM) | 45×117×50 | |
Outer Dimensions (CM) | 70×135×145 | |
Rate of Work | 4.0(KW) | |
Performance Index
|
Temperature Range | RT+10°C~70°C |
Himidity Range | ≥95%R.H | |
Distance Between Lamps | 35mm | |
Distance Between Samples and Lamps |
50mm | |
Specimen Number | L300mm×W75mm, about 20pics | |
Ultraviolet Wavelength |
290nm~400nm UV-340,UV-313,UV-351 (state clearly in your order ) |
|
Rate of the Lamp | 40W | |
Controlling System |
Controller |
South Korean imported touch screen programmable controller |
Illumination Heating System |
all independent system, nickel chrome alloy electrical heating type heater |
|
Condensation Humidifying System |
stainless steel shallow evaporative humidifier | |
Blackboard Temperature | double metal blackboard mometer | |
Water Supplying System | Humidification water supplying automatic control | |
Exposure Way |
moisture condensation way exposure, light radiation exposure |
|
Safety Device |
leakage, short circuit, super temperature, water shortage and over current protection |
Standard accessories:
1. One copy of English user guide.
2. One CD of controller software and operation instruction video.
Kindly note:
1. Please advise whether 8 UV-A or 8 UV-B lamps are needed when order.
2. UV-A340 lamps can well simulate the natural outdoor exposure. UV-B313 lamps are able to do accelerated test more quickly via stronger irradiation.
