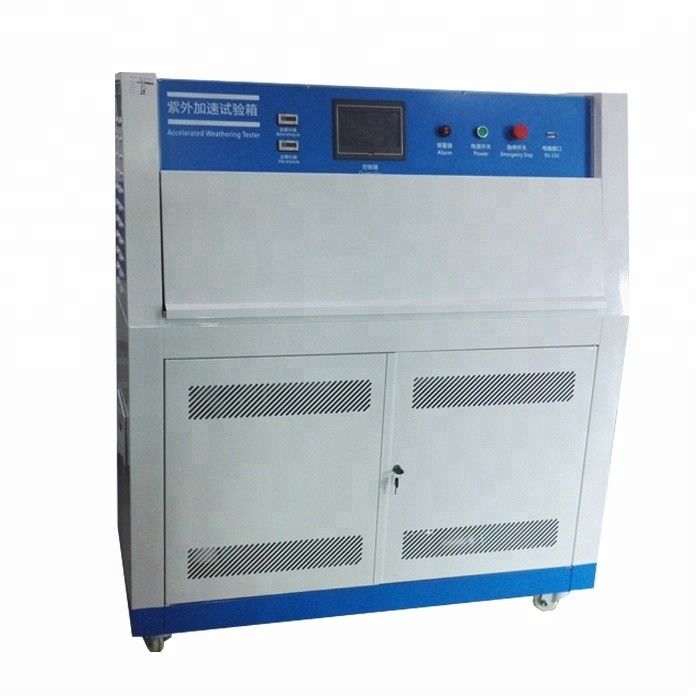

Uv Accelerated Aging Test Machine Touch Screen Uv Lamp Accelerated Weathering Tester

Uv Accelerated Aging Test Machine Touch Screen Uv Lamp Accelerated Weathering Tester
Uv Accelerated Aging Test Machine Touch Screen Uv Lamp Accelerated Weathering Tester Uv Accelerated Aging Test Machine Touch Screen Uv Lamp Accelerated Weathering Tester Uv Accelerated Aging Test Machine Touch Screen Uv Lamp Accelerated Weathering Tester Uv Accelerated Aging Test Machine Touch Screen Uv Lamp Accelerated Weathering Tester Uv Accelerated Aging Test Machine Touch Screen Uv Lamp Accelerated Weathering Tester

Large Image :  Uv Accelerated Aging Test Machine Touch Screen Uv Lamp Accelerated Weathering Tester

Product Details:
Place of Origin: Guangdong Province, China
Brand Name: LIYI
Certification: CE, ISO
Model Number: LY-ZW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD+2500~4000+piece
Packaging Details: Standard export package
Delivery Time: within 15 business days after deposit
Payment Terms: Western Union, L/C, T/T

Uv Accelerated Aging Test Machine Touch Screen Uv Lamp Accelerated Weathering Tester

Description
Name: Standard UV Accelerated Weathering Tester ASTM D4587 , Automatical PID SSR Control Inside Dimensions: 45 * 117 * 50 Cm
Outer Dimensions: 70 * 135 * 145 Cm Controller: South Korean Imported Touch Screen Programmable Controller
Temperature Range: RT + 10 °C ~ 70 °C Rate Of Work: 4.0 (KW)
Himidity Range: ≥ 95% R.H Distance Between Lamps: 35 Mm
Distance Between Samples And Lamps: 50 Mm Rate of the Lamp: 40 W
High Light:

accelerated uv testing

,

accelerated weathering machine

UV Accelerated Aging Test Machine Touch Screen UV Lamp Accelerated Weathering Tester





Product Introduction:



1. The UV weathering testing machine is used to simulate the damage of the sunlight,rain and dew to the non-metal materials which is widely used in the industry such as rubber, printing ink, plastic, paint, packaging, medical and so on.



2. The testing materials are placed in a certain environment which the light and moisture are alternating. For the reason that the ultraviolet rays in the sunlight are the main factors causing the oxidative degradation of the polymer and the water an important factor in accerating aging.



3.  the UV weathering testing machine can easily simulate the aging process during the outdoor exposure.Owing to the reasons above, the UV weathering testing machine has practical value in testing the relative weathering resistance of the different test specimen.



Functions:



1. Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.


2. The radiometer probe is fixed so as to avoid the frequent installation and disassembly.


3. The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.


4. The radiation intensity is not more than 50W/m2.


5. The illumination and condensation can be controlled independently or alternating and circularly.





Chamber Structure:



1. The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate


2. The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.



Control System:



Hot Sale Accelerated Aging Test Machine+UV Aging Test Chamber



Specifications:



Mode LY-ZW
Inside Dimensions (CM) 45×117×50
Outer Dimensions (CM) 70×135×145
Rate of Work 4.0(KW)

Performance Index



Temperature Range RT+10℃~70℃
Himidity Range ≥95%R.H
Distance Between Lamps 35mm
Distance Between Samples and Lamps 50mm
Specimen Number L150mm*W75mm, 48pcs in total
Ultraviolet Wavelength 290nm~400nm UV-A340,UV-B313,UV-C351(state clearly in your order )
Rate of the Lamp 40W/Piece, 1200mm/Piece
Lamp amount 8pcs

Controlling

System

Controller touch screen programmable controller
Illumination HeatingSystem all independent system, nickel chrome alloy electrical heating type heater
Condensation Humidifying System stainless steel shallow evaporative humidifier
Blackboard Temperature double metal blackboard mometer
Water Supplying System Humidification water supplying automatic control
Exposure Way moisture condensation way exposure, light radiation exposure
Safety Device leakage, short circuit, super temperature, water shortage and over current protection





Photo show:



Uv Accelerated Aging Test Machine Touch Screen Uv Lamp Accelerated Weathering Tester 0Uv Accelerated Aging Test Machine Touch Screen Uv Lamp Accelerated Weathering Tester 1Uv Accelerated Aging Test Machine Touch Screen Uv Lamp Accelerated Weathering Tester 2





We have professional workers to pack your products!



Packing:


1. Out packing: Standard export wooden case.


2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.


3. Checking teams: Specialized staff to inspect and classified your goods.


Shipping:


1. You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order.



2.  It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.Test Aging Tester Equipment Used Universal Tensile Uv Weathering Testing Machine
