Extrusion Plastometer Plastic Testing Equipment MFI Themoplastic Melt Flow Index Machine

China Extrusion Plastometer Plastic Testing Equipment MFI Themoplastic Melt Flow Index Machine supplier
Extrusion Plastometer Plastic Testing Equipment MFI Themoplastic Melt Flow Index Machine supplier Extrusion Plastometer Plastic Testing Equipment MFI Themoplastic Melt Flow Index Machine supplier

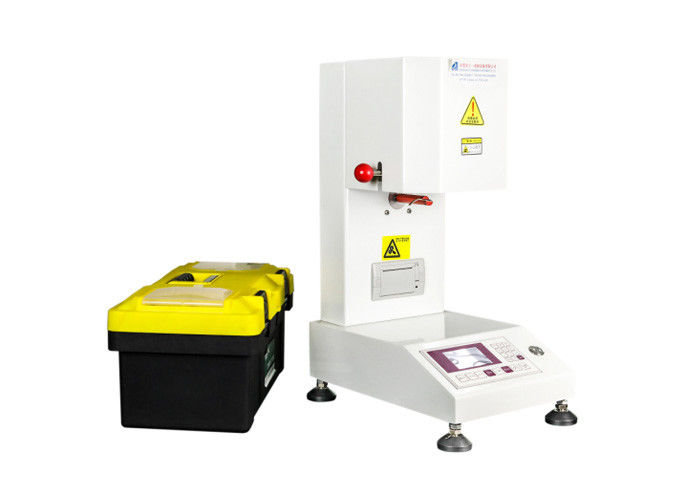

Large Image :  Extrusion Plastometer Plastic Testing Equipment MFI Themoplastic Melt Flow Index Machine

Product Details:

Place of Origin: CHINA
Brand Name: LIYI
Certification: CE ISO
Model Number: LY-RR

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Standard Export Wooden Case
Delivery Time: 10 Work Days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 Sets Per Month
Contact Now
Detailed Product Description
Model: LY-RR Usage: Plastic Testing Machine
Temperature: 400℃ Temperature Accuracy: ±0.2 ℃
Machine Size: 250*510*350mm Pistons Parameters: Piston Head:9.475+-0.015mm
Piston Length: H=6.35±0.1mm Paramters: Extrusion Hole 1=2.095±0.005mm
Temperature Recovery Time: Less Than 4 Power: AC220V±10% 50HZ



Extrusion Plastometer Melt Flow Rate Index Equipment,MFI Themoplastic Plastic measuring and test instruments



Description:

This machine can be used for ABS, polystyrene, polyethylene, polypropylene, polyamide, fiber resin, acrylate, POM, fluorine plastic, polycarbonate and other plastic materials, the melt flow rate (MFR) or the melt volume flow rate (MVR) to be determined.

​It's is a high precise melt testing instruments for the measurement of melt flow rate (MFR)/(MI) and melt volume rate (MVR) in quality control and research applications.
It's suitable to measure melt flow character of PP, PE, POM, ABS plastics and plastic productions, widely used in factories, products quality testing station, scientific and research institutes, and concerned industries.



Standards:

GB/T3682-2000,

ISO1133-97,

ASTM1238





Specification:

Machine size(W*H*D) 250*510*350mm
Power AC220V±10% 50Hz
Barrel parameters Inner hole 9.55±0.025mm
Pistons parameters Piston head: 9.475±0.015mm
Piston length H=6.35±0.1mm
Paramters Extrusion hole 1=2.095±0.005mm
Temperature parameter

With intelligent temperature control instrument,

with four pairs of significant temperature setting

control, PID parameters can be automatically set,

precision up to ± 0.1 degree centigrade

Temperature rangeradius 400℃
Temperature accuracyblade to jawand dust collector ±0.2 ℃
Display resolution 0.1℃
Maximum comsuption < 600W
Temperature recovery time less than 4 min.
Weight parameters
Weight accuracy ±0.5%
Basic configuration

0.325kg, 1.2kg, 2.16kg, 3.8kg, 5.kg, 10.0kg, 12.kg,

21.6kg

Position detection
Loop distance from up and down 30mm
Control precision ± 0.1mm
Test flow control
Times of cutting the material 0~10 times
Material cutting interval 0~999s(set reference Table 2)
Control flow reaches the set temperature without volatility
Barrel temperature time 15 min.
Material be installed 1 min
Material sample temperature recovery time 4 min.
When binder set 1min



Characteristics:

1. Fast heating speed, very small overshoot.

2. High precision of constant temperature.

3. Can fastly recover to constant temperature condition after padding.

4. Can use maunal and automatical material trimming test method.

5.LCD display, equipment with built-in micro printer, test result can be printed automaticaly.



Our Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 380V, insurance indicator.

2. Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4. Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



prodcut-image
