Product Details:
|
| Power: | AC220V±10% 50Hz | Usage: | Plastic Testing Machine |
|---|---|---|---|
| Ignite Time: | 0~99 Minutes And 99 Seconds Can Be Set | Residual Burn Time: | 0~99 Minutes And 99 Seconds Can Be Set |
| After Flame Time: | 0~99 Minutes And 99 Seconds Can Be Set | Standards: | UL94, IEC60695 |
| High Light: | impact test equipment,material testing equipment |
||

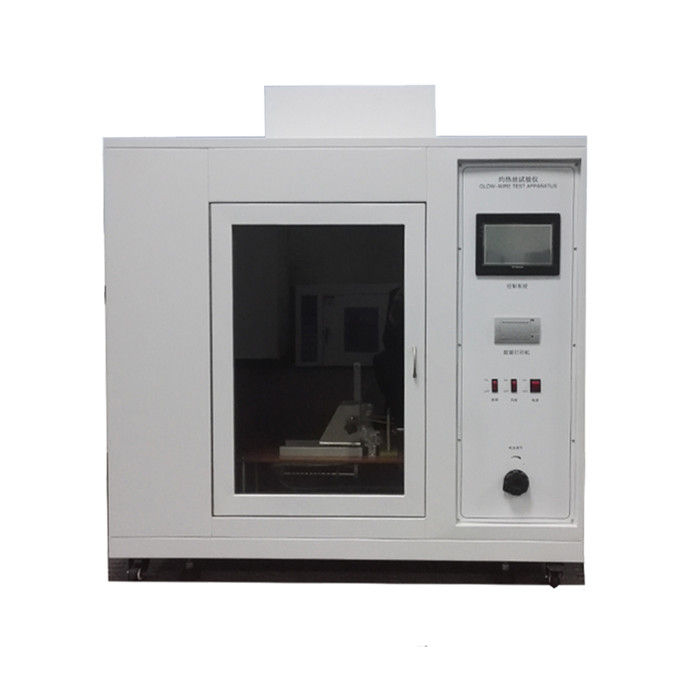

UL94 Standard Lab Instrument, Burning Tester Plastic Testing Machine
Product introduction:
The test equipment apply to the electrical and electronic product components of household appliances, spare parts and components, such as: household appliances insulation shell, Panel switches, printed circuit boards and insulation materials and so on.
This High quality low price plastic burning resistance tester is suitable for measuring and evaluating the combustion characteristics of plastic materials. It is designed and made based on the America UL94 standard the combustion characteristics’ testing of plastic materials used for device and equipment parts. It tests the horizontal and straight combustion characteristics of plastic parts used for device and equipment, and equipped with gas flow meter to adjust size of flame. It use motor driving mode to make the operation easy andsafe.
The High quality low price plastic burning resistance tester use PLC + colorized LCD touch screen or LCD meter to control, with fine and easy understanding operation interface and testing data printer, can print the testing conditions and result, which is convenient to record the testing results. The table size has several specifications like 0.5, 0.75, and 1 cubic meter. The special size can be customer-made, you can choose touch screen control or touch tone control.
Specification:
|
Cabinet capacity |
≥0.5 cubic meters, with glass watch door |
|
Ignite time |
0~99 minutes and 99 seconds can be set |
|
After flame time |
0~99 minutes and 99 seconds can be set |
|
Residual burn time |
0~99 minutes and 99 seconds can be set |
|
Timer |
0~99 minutes and 99 seconds can be adjusted, burning time can be set, and burning duration can be recorded. |
|
Burning angle |
20°,45°,90°(equal to 0°) can be adjusted |
|
Burner size parameter |
Nozzle diameter Ø9.5±0.3mm, nozzle effective length is 100±10mm, with air adjust hole. |
|
Power |
AC 220V, 50 Hz |
Product Effects
Company Information
LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years.
LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
