|Rated Voltage:||220V (110V For Optional)||Hardness Conversion Scale:||Yes|
|Turret:||Manual||Test Force:||0.3-10 Kgf|
|Eyepiece:||10X Digital Eyepiece With Inbuilt Encoder||Calibrating Method:||Length Scale And Standard Hardness Blocks|
|Quality Judgement Function:||Yes||Easy Calibration Function:||Yes|
|Data Output:||Inbuilt Printer, RS232 Port||Magnification:||100X, 200X|
|Communication With Computer:||Yes, Via RS232 Transfer Test Data To PC||HS Code:||9024102000|

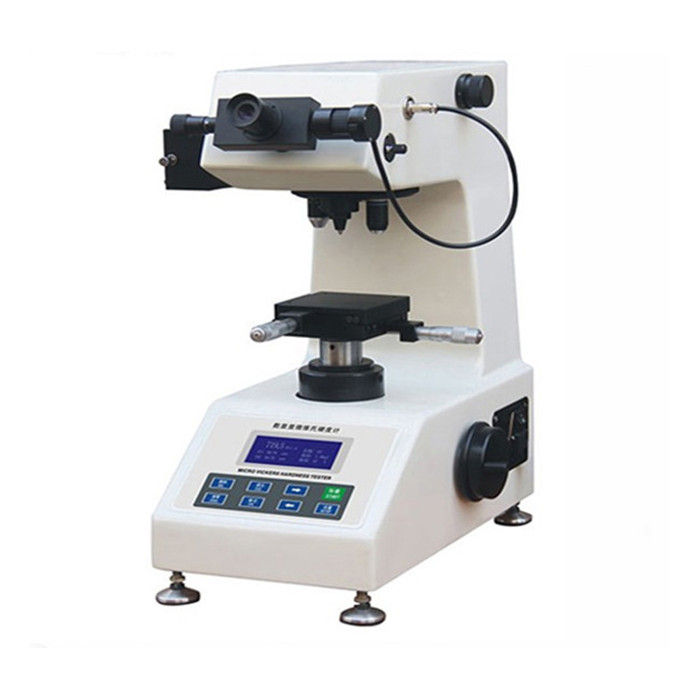

Hv0.3 - Hv10 Manual Turret Digital Vickers Hardness Testing Machine
Digital Macro Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. It improves the precision of the test force and the repeatability and stability of the indicating value. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly shows the test force, indentation length, dwell time, test numbers, conversion scale, date and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen.
With built-in printer & RS232 interface, and equipped with data statistic and storage function.
|Turret||Automatic turret||Manual turret|
|Hardness scale||HV0.3, HV0.5, HV1, HV3, HV5, HV10|
|Test Force||0.3kgf, 0.5kgf, 1kgf, 3kgf, 5kgf, 10kgf
2.94N, 4.90N, 9.80N, 29.4N, 49N, 98N9.8N, 49.0N, 98.0N, 196N, 294N, 490N
|Hardness conversion||HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T|
|Min measuring unit||0.01µm|
|Force loading||Automatic loading - dwell - unloading|
|Eyepiece||10X digital eyepiece with built-in encoder, auto calculate|
|Objective||Standard: 10X, 20X (both lens can be used measuring & observe)|
|Magnification||Standard: 100X, 200X|
|Data output||8 inches touch screen, Built-in Printer, RS232 Interface|
|Test space||160*135MM (H*D)|
|Standard||ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2|
|Main Instrument||1 set|
|10X Digital Micro Eyepiece||1 piece|
|10X Objective lens||1 piece|
|20X Objective lens||1 piece|
|Vickers diamond indenter||1 piece|
|Large testing table||1 piece|
|Middle testing table||1 piece|
|V shape testing table||1 piece|
|Horizontal Regulating Screw||4 pieces|
|Power Cable||1 piece|
|Fuse 2A||2 pieces|
|Dust cover||1 piece|
|Warranty card||1 piece|
|Manual book||1 piece|
