|Usage:||Plastic Testing Machine||Uv Lamp:||40W|
|Uv Wavelength:||290 - 400nm||Uv Temperature:||40℃~60℃|
accelerated uv testing,
accelerated weathering machine
IEC61215, ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN 534;prEN 1062-4, BS 2782;JIS D0205;SAE J2020,ect.

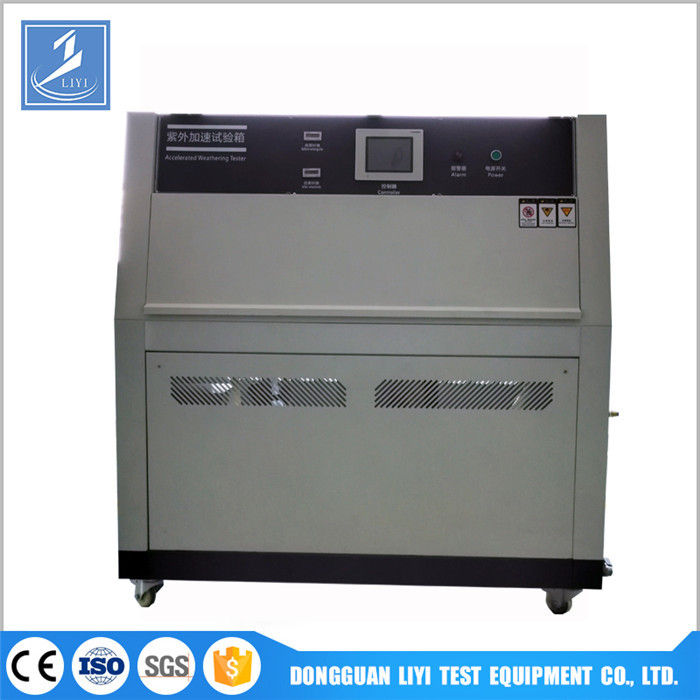

The uv accelerated weathering tester as per astm g154 can provide reliable aging test data to make the exact prediction of products' weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
uv accelerated weathering tester as per astm g154 is the most widely used UV Weathering tester in the world,there are thousands of ultraviolet aging testers coming into use. It has become the standard of the UV test, fit standards of ISO,ASTM,DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT,ect. It can simulate the damage of sunshine, rain, dew to the material quickly and exactly. Damage types including bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation need to be engenderd in months or years but can engender in a few days or weeks.
IEC61215, ASTM D4329, D499, D4587, D5208, G154, G53, ISO4892-3, ISO11507, EN534, prEN1062-4, BS2782, JIS D0205, SAE J 2020, etc.
1. According to uses’ operation , it’s easy to operate, safe and reliable.
2.The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3.The door rotating up does not interfere with the operation and the tester takes a very small space only.
4. Can be contented by tap water.
5.The heater is under the container rather than in the water, which is long life, easy to maintenance.
6.The water level controller is outside the box, easy to monitor.
7. Provide truckles, convenient to move.
8. Computer programming is convenient, automatically alarming when incorrect operated or faulted.
9. Provide irradiance calibrator to extend the life of the lamp tube(more than 1600h).
10. Have Chinese and English instruction book, convenient to consult.
11. Three types: common, light irradiance controlling, spraying.
|Inside Dimensions (CM)||45 * 117 * 50 cm|
|Outer Dimensions (CM)||70 * 135 * 145|
|Rate of Work||4.0 (KW)|
|Temperature Range||RT+10 °C ~ 70 °C|
|Humidity Range||≥ 95 % R.H|
|Distance Between Lamps||35 mm|
Distance Between Samples
|Specimen Number||L300 mm * W75 mm, about 20 pieces|
(state clearly in your order )
|Rate of the Lamp||40 W|
South Korean imported touch screen
All independent system,
nickel chrome alloy electrical heating type heater
|Stainless steel shallow evaporative humidifier|
|Blackboard Temperature||Double metal blackboard meter|
|Water Supplying System||Humidification water supplying automatic control|
Moisture condensation way exposure,
light radiation exposure
Leakage, short circuit, super temperature, water shortage and
over current protection.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
