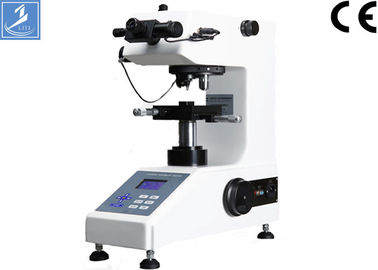

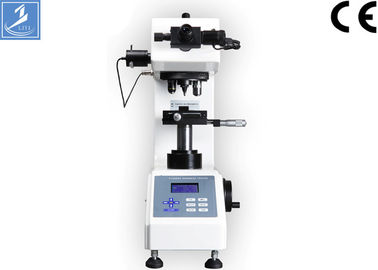

Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece

Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece
Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece

Large Image :  Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece

Product Details:
Place of Origin: Dongguan
Brand Name: LIYI
Certification: ISO/CE
Model Number: V-5M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Pending negotiation
Packaging Details: Plywood Box
Delivery Time: 5-20 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 100 units per month

Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece

Description
Data Output: Inbuilt Printer Magnification: 100X, 200X
Hardness Scale: Hv0.2 - Hv5 Calibrating Method: Length Scale And Standard Hardness Blocks
Turret: Manual Turret Test Force: 200g - 5 Kgf
Dwell Time: 5-99 Seconds Specification: 490x330x515mm
High Light:

automatic hardness tester

,

digital hardness tester

Manual Turret Vickers Hardness Tester with Analog Reading Eyepiece



Main Features:
1. The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
2. According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
3. With Vickers hardness and Knoop hardness testing capabilities, and testing range from HV0.2 to HV5. By measuring the indentation diagonal length, the hardness will show on the screen directly, no need to check hardness table.
4. Industrial digital screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, testing times and testing process;

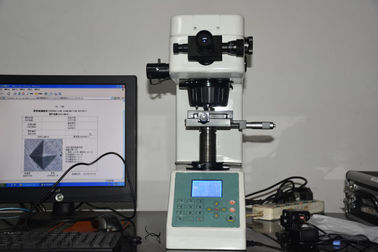

5. Reserved CCD camera optical path, support machine work with computer and hardness measuring software system.

Main purpose and application:
1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
3. Glass, chip and ceramic material.

Specification:
Model                                V-5A                              V-5M
Turret                             Automatic                             Manual
Test force 200g (1.96N), 500g (4.9N), 1000g (9.8N), 2000g (19.6N), 3000g (29.4N), 5000g (49N)
Hardness scale HV0.2, HV0.5, HV1, HV2, HV3, HV5
Hardness conversion scale HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T
Loading speed ≤50μm/sec
Min. Measuring Unit 0.5μm
Indenter Standard Rectangular pyramid diamond indenter (136º±0.5º)
Hardness Value Range 5-3000HV, 8-4500HK
Hardness Value of Reading Digital LCD Screen
Total Magnification 100X (For Observation), 200X (For Measurement)
Loading Method Automatically (Load, dwell and unload)
Dwell Time 5-99s (each step is 1 second)
Maximum Height 85mm
Throat depth 120mm
Light Source LED Cold light source
Power Supply 220V + 5%, 50/60 Hz (110V is available)
X-Y Testing Table Dim.: 100×100 mm, Max. Travel Range: 25×25mm,
Moving Resolution Ratio: 0.01mm
Instrument size and Net weight 490×330×515mm 35kg
Executed Standard GB/T4340, ASTM E384 & E92, EN-ISO 6507-2, JIS B-7734
Standard Accessories 1 piece:
10X micrometer eyepiece ; 10X and 20X objective lens; Vickers indenter; Flat fixture; Gradienter; X-Y Testing Table; Power line; Dust proof cover; Manual Book; Hardness Conversion Tables; Quality certificate; Warranty Card; Accessory case
2 pieces: Standard block of hardness
4 pieces: horizontal adjusting screw
Optional Purchase Accessories Image analysis software; Metallographic equipment; Knoop Indenter; hardness block; 15X micrometer eyepiece





Product Effects



Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece 0



Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece 1



Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece 2





Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece 3



Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece 4



Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece 5



Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece 6



Manual Turret Vickers Hardness Testing Machine With Analog Reading Eyepiece 7
