Product Details:
|
Power: | Electronic | Himidity Range: | ≥95%R.H |
---|---|---|---|
Material: | #SUS 304 Stainless Steel | Controller: | TATO |
UV Lamp: | UVA/UVB/UVC | Dimensions: | 70*135*145cm |
Certificate: | CE ISO | Rate Of The Lamp: | 40W |
Highlight: | accelerated uv testing,accelerated weathering machine |

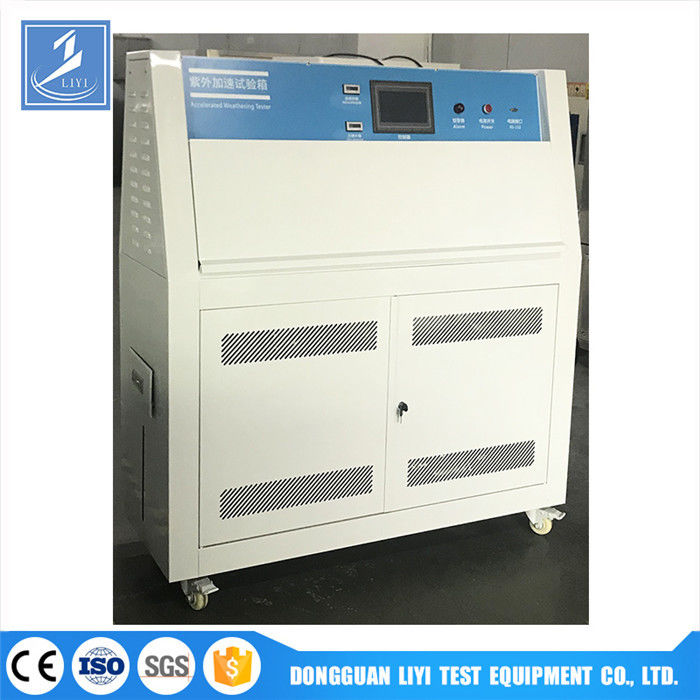

40W Programmable UV Accelerated Wearthering Lab Tester
Accelerated Weathering Tester,Accelerated Aging Chamber,Uv Tester Test Equipment is the world's most widely used ,can be used in more labs throughout the world than any other accelerated weathering tester. It's used widely in the industry, such as printing ink, paint, pastics, print, packaging,motor van, metal, electron, medical, and so on.
This tester can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance), which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
1. The ultraviolet aging tester is designed according to uses’ operation , it’s easy to operate, safe and reliable.
2. The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3. The door rotating up does not interfere with the operation and the tester takes a very small space only.
4. It’s unique condensating system can be contented by tap water.
5. The heater is under the container rather than in the water, which is long life, easy to mainten
6. The water level controller is outside the box, easy to monitor.
7. The machine has truckles, convenient to move.
8. Computer programming is convenient, automaticly alarming when incorrect operated or faulted.
9. It has irradiance calibrator to extend the life of the lamp tube(more than 1600h)
10. It has Chinese and English instruction book, convenient to consult.
11. Divided into three types: common, light irradiance controlling, spraying
Specications:
Model | LY-ZW | |
Inside Dimensions (CM) | 45×117×50 | |
Outer Dimensions (CM) | 70×135×145 | |
Rate of Work | 4.0(KW) | |
Performance Index
|
Temperature Range | RT+10℃~70℃ |
Himidity Range | ≥95%R.H | |
Distance Between Lamps | 35mm | |
Distance Between Samples and Lamps | 50mm | |
Specimen Number | L300mm×W75mm, about 20pics | |
Ultraviolet Wavelength | 290nm~400nm UV-340,UV-313,UV-351(state clearly in your order ) | |
Rate of the Lamp | 40W | |
Controlling System |
Controller | touch screen programmable controller |
Illumination Heating System | all independent system, nickel chrome alloy electrical heating type heater | |
Condensation Humidifying System | stainless steel shallow evaporative humidifier | |
Blackboard Temperature | double metal blackboard mometer | |
Water Supplying System | Humidification water supplying automatic control | |
Exposure Way | moisture condensation way exposure, light radiation exposure | |
Safety Device |
leakage, short circuit, super temperature, water shortage and over current protection |
