Product Details:
|
| Impact Energy: | 1J,2J,4J,5J,7.5J,15J,25J,50J | Impact Speed: | 3.5m/s; 3.8m/s |
|---|---|---|---|
| Distance: | 230mm/395mm | Dimension: | 420*250*650mm |
| Standard: | ISO 179; GB/T 1043 | Controller: | Full Touch Screen Panel |
| Power Supply: | 220V 50HZ 0.1kw | Material: | 304 Stainless Steel |
| High Light: | 3.5m/s Notch Charpy Impact Tester,Touch Screen Hard Plastic Testing Machine,ISO 179 Hard Plastic Testing Machine |
||

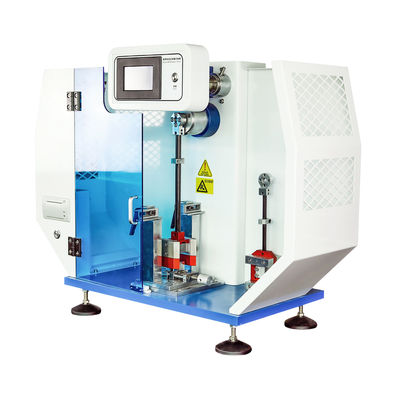

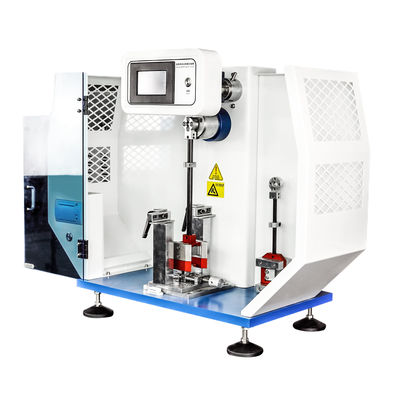

ISO 179 Charpy Impact Tester Pendulum Impact for plastic products
Application:
Notch Charpy Impact Tester Price is mainly used in hard plastic (including plank, materials, plastic profile), the increase of nylon, glass
fiber reinforced plastic, ceramic, and cast stone, electrical insulating materials etc. Nonmetal material impact toughness is determined.
Characteristics:
1. Chinese/English characters LCD shows the results, the storage of test results.
2. Use the energy loss to be automatic correction function.
3. Simple structure, convenient operation, data accurate and reliable.
Standards: ISO 179, GB/T 1043 and the equivalent
Parameter:
| Type | LY-XJJD5 | LY-XJJD50 |
| Impact energy | 0.5 J,1 J,2 J,4 J,5 J | 7.5 J,15 J,25 J,50 J |
| Impact speed | 2.9 m/s | 3.8 m/s |
| Starting angle | 115° | |
| Torque of striker |
M0.5=0.26795 Nm M1=0.53590 Nm M2=1.07180 Nm M4=2.14359 Nm M5=2.67949 Nm |
M7.5=4.01924 Nm M15=8.03848 Nm M25=13.39746 Nm M50=26.79492 Nm |
| Distance between shaft and center of specimen | 230 mm | 395 mm |
| Corner radius of striking edge | (2.0 ± 0.5) mm | |
| Included angle of striking edge | (30 ± 1)º | |
| Corner radius of vice | (1.0 ± 0.1) mm | |
| Support span | 62 mm | |
| Accuracy | ± 0.1 % | |
| resolution | ± 0.05 % | |
| Energy loss | 0.5J—4%;1.0J—2%; 2.J—1%;4.0J—0.5% | 7.5 J-50 J—0.5%; |
| Dimensions | L x W x H=(420 x 250x 650) mm | L x W x H=(550 x 300 |

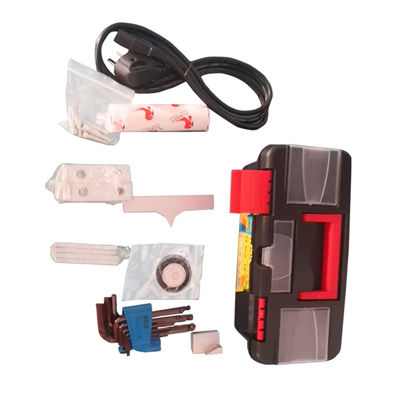

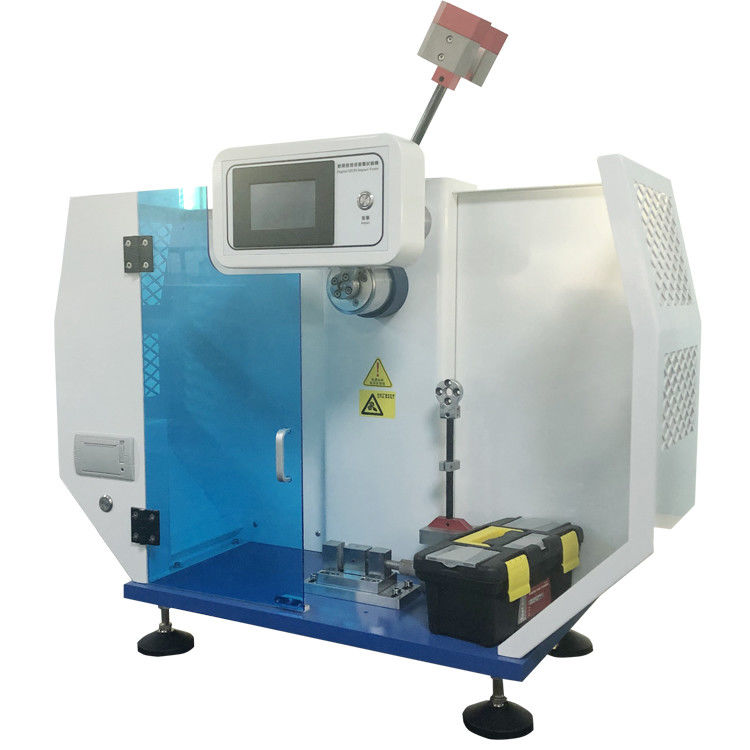

Photo Show:
The printer for your reference....
About Us:
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing,marketing all kinds of environmental equipment.Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system. To strengthen the quality awareness,perfect management system,improve product credit,meet customers increasing requirements,
our company brought into ISO9001:2008 international quality management system and obtained the certificate: N0006997-1.Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
Our Team:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
