0.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester

0.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester
0.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester
0.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester 0.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester 0.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester 0.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester 0.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester

Large Image :  0.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester

Product Details:
Place of Origin: CHINA
Brand Name: LIYI
Certification: CE ISO
Model Number: LY-XJUD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Plywood case
Delivery Time: 15 days after receiveing deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25 pieces per month

0.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester

Description
Pendulum Energy: 1J,2.75J,5.5J,11J,22J Impact Speed: 3.5m/s
Pendulum Angle: 150℃ Impact Center Distance: 335mm
External Size: 830*300*890mm Power: 220V 50HZ 0.1KW
Standard: ISO180 Material: #304 Stainless Steel
High Light:

0.1KW Plastic Testing Equipment

,

220V 50HZ Plastic Testing Equipment

,

180 Izod Pendulum Charpy And Impact Tester

ISO 180 Izod Impact Tester Pendulum Impact for Plastic products



Product Description

impact testing machine used to measure plastic, enhance nylon, glass fiber reinforced plastic, ceramic, and cast stone, plastic appliances, insulating materials and nonmetal material impact toughness.This tester can be used for research agencies, universities and colleges, nonmetallic material factory and other units or the inspection department for the laboratory experiment. The machine has the characteristics of big energy range, simple beam and cantilever generally use, which is a kind of simple structure, convenient operation, high measurement precision instruments.



Application

High Accuracy Plastic izod impact test instrument is mainly used in hard plastic (including plank, materials, plastic profile), the increase of nylon, glass fiber reinforced plastic, ceramic, and cast stone, electrical insulating materials etc. Nonmetal material impact toughness is determined.



Test StandardGB/T1843, ISO180, GB/T21189, GB/T2611, JB/T8761



Characteristics

English characters LCD shows the results, the storage of test results, and has the energy loss to be automatic correction function. Simple structure, convenient operation, data accurate and reliable.



Parameter:



Model: LY-XJUD 5.5 LY-XJUD22
Impact speed: 3.5m/s
Pendulum energy: 1.0J, 2.75J, 5.5 J 11J 22J
Pendulum up angle: 150degree
Impact center distance 335mm
Test accuracy: ±0.1%
Resolution: 1%
Distance from impact blade to clamp: 22.0mm±0.2mm
Blade fillet radius: R=0.8mm±0.2mm
Energy loss: 1.0J-2%, 2.75J-1%, 5.5J-0.5% 11J,22J-0.5%
Tester size(L*W*H) (830x300x890)mm

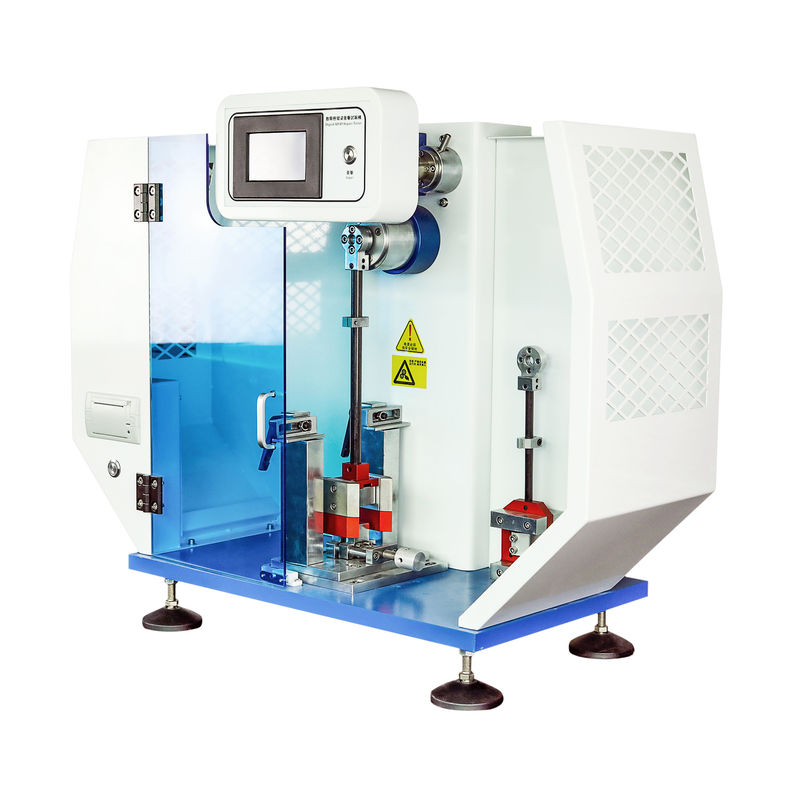

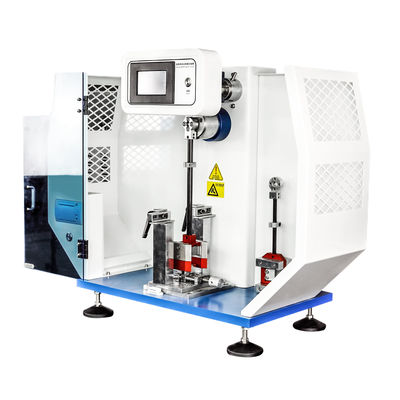

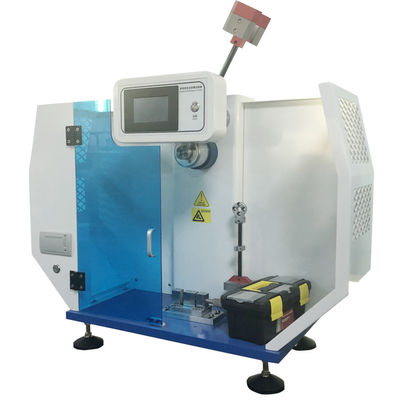

Photo Show:

0.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester 00.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester 10.1KW Plastic Testing Equipment 180 Izod Pendulum Charpy And Impact Tester 2
