Product Details:
|
| Warranty:: | 12 Months | Machine Type: | Ring Loop Stiffness Flexibility Tester/pvc Pipe Testing Equipment |
|---|---|---|---|
| Max Load: | 100KN(can Be Customized) | Accuracy Degree:: | Better Than 1degree |
| Power Supply: | AC220V | Force Accuracy:: | Within ±1 Of The Value |
| Effective Force Testing Range:: | 0.2%-100% | Effective Testing Wid: | 600mm(can Be Customized) |
| Certificate: | CE ISO | Range Of Testing Spe: | Servo Motor Speed:0.01-500mm/min |
| High Light: | Tubal Ring Loop Plastic Testing Equipment,100KN Pvc Plastic Testing Equipment,0.75KW plastic testing machine |
||
The plastic pipe ring stiffness testing machine price is widely used in thermoplastic plastic tubing with circular cross section, and the stiffness for grass steel tube. The tester can meet the standard requirement of PE arms bellows,winding pipe, and all kinds of tubular product standards, at the same time, can do the tubular product ring stiffness,ring flexibility,flat,tensile test.With the function of key adjust, digital display for test force displacement, value keeping, broken automatically stop, overflow, overload automatical protection.
Application industries
Be widely used in measuring and quality test: rubber plastic, metallurgy ans steel, mechanical manufacture, electronics, car production, textile and chemical fiber,wire and cable, packing material and food, instrument, medical apparatus and instruments,civilian nuclear energy,civilian aviation,institution of higher learning, scientific research,arbitration,technical supervision department,building material ceramic,petrochemical engineering and so on.
Specification
| Model | LY-1078 |
| Max loading | 100KN(customized) |
| Accuracy degree | Better than 1 grade |
| Effective force testing range | 0.2%~100% |
| Force accuracy | Within ±1 of the Value |
| Effective testing width of pipe | 600mm (can be widen according to customers’ requirement ) |
| Effective testing diameter of pipe |
3000mm (Can be customized according to customers’ requirement) |
| Range of testing speed | Servo motor speed:0.01~500mm/min |
| easuring accuracy of displacement | Within ±1% of the Value |
| Deformation measuring accuracy | ≤±(50+0.15L) |
| Testing bench safety device | Electronic limit protection |
| Testing bench return function |
Manual or automatic two choices, after finishing test, can return to the testing initial position with the highest speed by automatical and manual control. |
| Overload protection |
If overload 10% of the max loading, the machine will turn on the automatically protection. |
| Jigs | Compression fixture( one set) |
| Mechanical dimension | 900×800×4380mm(L*W*H)[Customized] |
| Power supply | 220V,50HZ, |
| Power |
0.75KW(Equipped with different power motor, according to the force requirement) |

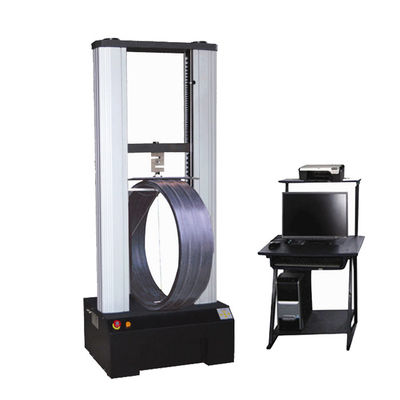

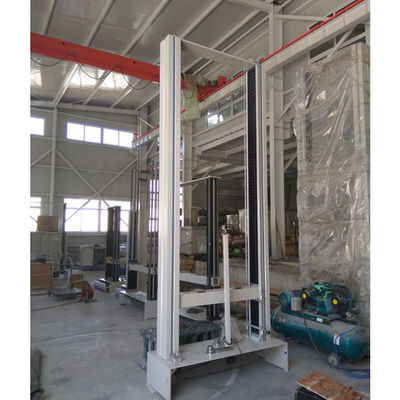

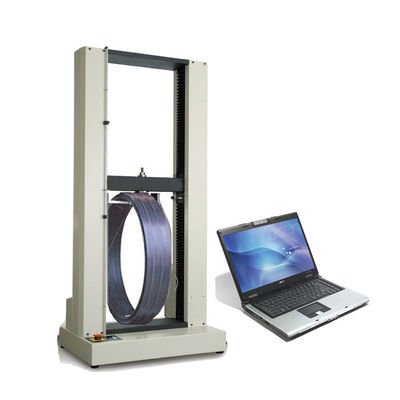

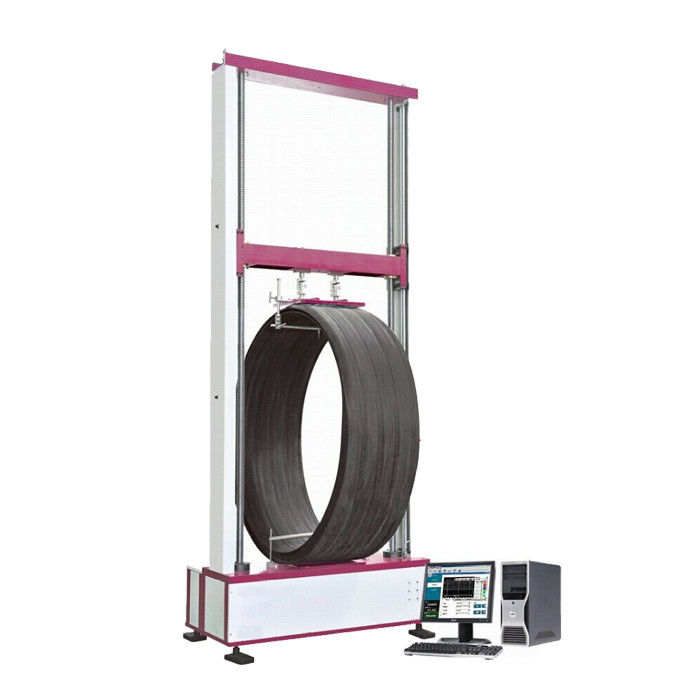

Product Effects
Company Information
Guangdong LIYI Technology Co.,Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.
Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
FAQ
1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional and biggest Manufacturer for Customized Industrial Drying Oven, Hot Air Oven, Laboratory Oven, vacuum oven, Universal Tensile testing machine, Environmental Climatic chamber, Muffle furnace etc. in China .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.
Moreover, If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What’s the delivery term?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4.How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
