Product Details:
|
| Material: | #SUS 304 Stainless Steel | Refrigerater: | French Tecumseh |
|---|---|---|---|
| Temperature Range: | -70~150C | Fluctuation: | ±0.5C ±2.5%RH |
| Cooling Time: | 5.0 °C /minute | Controller: | Touch Screen Programmable Controller |
| Color: | Customize | Humidity Range: | 20%~98% |
| Controller Accuracy: | ±0.3C ±2.5%RH | Cooling System: | Water-cooled / Two-stage Compressor |
| High Light: | IEC60068 Constant Temperature And Humidity Chamber,ODM Constant Temperature And Humidity Chamber,Walk In Temperature And Humidity Chamber |
||

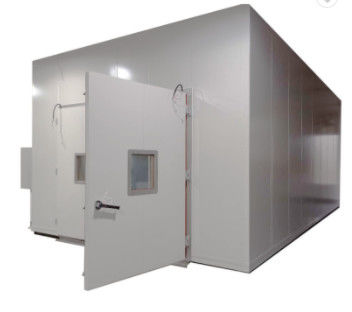

Liyi Environmental Temperature Humidity Test Chamber Walk In Climate Chamber
Liyi Walk-In Chamber serves as a test site for large components, assemblies, and finished products in electrical and electronics, aerospace, batteries and automobiles, etc. Liyi manufactures both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.
Walk-in temperature and climate test chambers are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally forspecific application.
Standard Met and Implemented:
| IEC60068-2-1 low temperature test method |
| IEC60068-2-38 temperature cycle |
| IEC60068-2-78 constant humidity temperature |
| Volume | 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer Requirements |
| Temperature Range | -70~150C |
| Humidity Range | 20%~98%RH |
| Accuracy/Uniformity | ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H. |
| Accuracy/Volatility | ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H. |
| Cooling Time | 5.0 °C /minute |
| Inside Material | SUS#304 Stainless Steel |
| Insulation Material | High-temperature high-density amino acid ethyl ester foam insulation materials |
| Cooling System | Water-cooled / two-stage compressor |
| Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system |
| Accessories | Recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball |
| Controller | Touch screen programmable controller |
| Compressor | France's Tecumseh Brand or Germany Bitzer |
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
