Product Details:
|
Warranty: | 12 Months, 12 Months | Place Of Origin: | Guangdong, China |
---|---|---|---|
Keyword: | Shoe Flex Tester | Test Speed: | 50~150r/min |
Motor: | DC1/2HP | Weight: | About 236Kg |
Design Standards: | SATRA-TM92 | Felxing Angle: | 30°,45°,50°,60°,90° Adjustable |
Counter: | LCD 0-999,999 Times | Machine Dimensions: | 97x77x70cm(LxWxH) |
Power Supply: | 220V | ||
High Light: | SATRA-TM92 Shoe Flex Tester,Rubber Sole Flexing Testing Equipment |

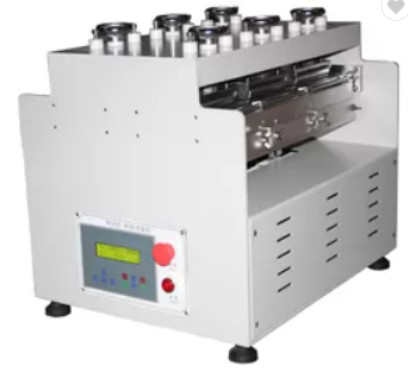

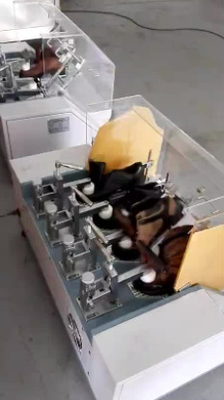

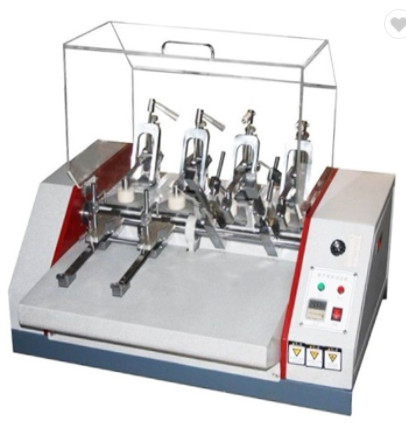

LIYI Rubber Sole Flexing Shoe Flex Tester
This tester is used for testing all kinds of finished shoes after flexing for a certain times in certain angle and frequency, observation shoes and shoe soles damage condition, or check the crack position and degree, to improve quality. Determines the fatigue durability and services life of shoes by simulating the walking state of a person.
Design standards: SATRA-TM92
Model | LY-S512 |
Test sample | 4 shoes(can test 4 shoes simultaneously) |
Felxing angle | 30°,45°,50°,60°,90° adjustable |
Test speed | 50~150r/min |
Test sample size | 150~400mm length Max 150mm width |
Counter | LCD 0-999,999 times |
Motor | DC1/2HP |
Machine dimensions | 97×77×70cm(L×W×H) |
Weight | About 236Kg |
Power | AC220V,2.8A |
