Product Details:
|
| Warranty: | 12 Months | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Keyword: | Drop Ball Impact Test Machine | Test Range: | Mode A 50~2000g; Mode B 300~2000g |
| Dart Weight: | Mode A 30g; Mode B 260g | Weights: | 5g, 15g, 30g, 45g, 80g, 90g, 8pcs For Each |
| Impact Height: | Mode A 66cm; Mode B 150cm | Power: | Electronic |
| Test Mode: | Mode A, Mode B, Optional | Test Precision: | 1g |
| Dart Size: | Mode A 38mm; Mode B 50mm | Size Of Weights: | Mode A 30mm; Mode B 45mm |
| Size Of Clips: | Outer 150mm, Inner 125mm | ||
| High Light: | LCD Display Ball Drop Test Equipment,Electronic Falling Ball Impact Tester |
||

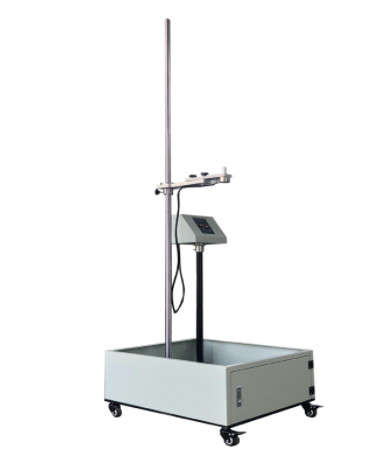

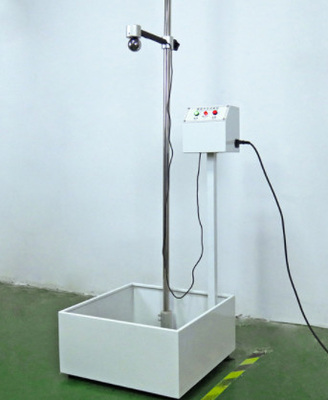

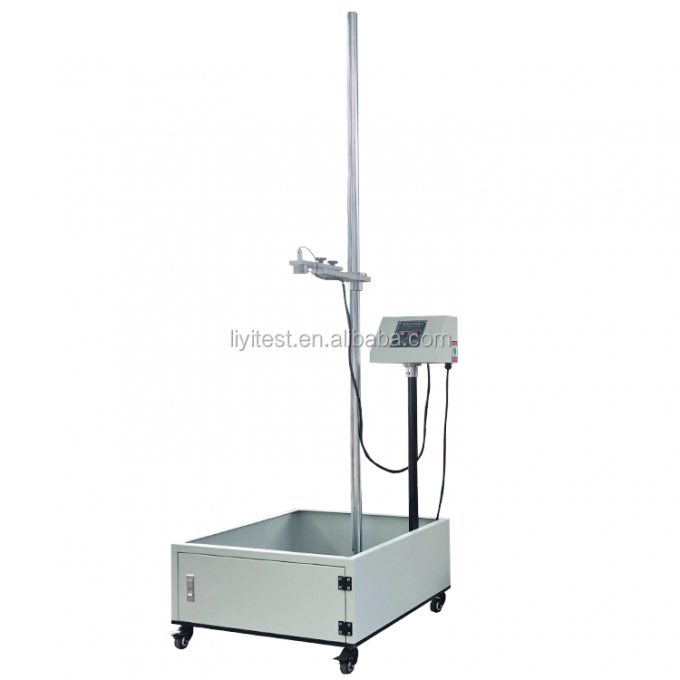

LIYI Reasonable Price Drop Ball Impact Test Equipment / Falling Ball Impact Testing Machine Supplier
The machine is suitable for plastic film or sheet do the Free Falling Dart Impact Test under certain height,measure 50% plastic film or sheet sample breakage when the impact of the mass and energy.
Working Principle
The dart freely falls and impact test sample; measure the weight needed to damage 50% of the number of samples to evaluate impact resistance.
Features
u LCD display test data.
u Easy operation, auto process data.
u Pneumatic clips.
u Auto clip and release dart.
u Built-in printer, can print report.
u Two test modes: Mode A and Mode B.
Configuration
Falling Dart Impact Tester, clips, weights, power cable
User provide: compressed air
| Test mode | Mode A, Mode B, optional |
| Test range | Mode A 50~2000g; Mode B 300~2000g |
| Test precision | 1g |
| Dart weight | Mode A 30g; Mode B 260g |
| Dart size | Mode A Φ38mm; Mode B Φ50mm |
| Weights | 5g, 15g, 30g, 45g, 80g, 90g, 8pcs for each |
| Size of weights | Mode A Φ30mm; Mode B Φ45mm |
| Impact height | Mode A 66cm; Mode B 150cm |
| Size of clips | outer Φ150mm, inner Φ125mm |
| Sample size | 180×180mm |
| Gas source | compressed air, 0.6~0.8Mpa |
| Gas port | Φ8mm gas pipe |
| Instrument size | 62×40×121/204cm |
