Free Falling Dart Impact Test / Drop Dart Impact Test For Plastic Flim

Free Falling Dart Impact Test / Drop Dart Impact Test For Plastic Flim
Free Falling Dart Impact Test / Drop Dart Impact Test For Plastic Flim Free Falling Dart Impact Test / Drop Dart Impact Test For Plastic Flim Free Falling Dart Impact Test / Drop Dart Impact Test For Plastic Flim Free Falling Dart Impact Test / Drop Dart Impact Test For Plastic Flim Free Falling Dart Impact Test / Drop Dart Impact Test For Plastic Flim

Large Image :  Free Falling Dart Impact Test / Drop Dart Impact Test For Plastic Flim

Product Details:
Place of Origin: Guangdong, China
Brand Name: Liyi
Certification: ISO, CE
Model Number: LY-3020
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: $580.00 - $1,980.00/ Set
Packaging Details: Standard export case
Delivery Time: 1 sets needs 15 days,>1 sets to be negotiated
Payment Terms: T/T
Supply Ability: 100 Set/Sets per Month

Free Falling Dart Impact Test / Drop Dart Impact Test For Plastic Flim

Description
Test Range: Mode A 50~2000g; Mode B 300~2000g Dart Weight: Mode A 30g; Mode B 260g
Weights: 5g, 15g, 30g, 45g, 80g, 90g, 8pcs For Each Impact Height: Mode A 66cm; Mode B 150cm
Power: Electronic Test Mode: Mode A, Mode B, Optional
Test Precision: 1g Dart Size: Mode A 38mm; Mode B 50mm
Size Of Weights: Mode A 30mm; Mode B 45mm Size Of Clips: Outer 150mm, Inner 125mm
High Light:

Dart Impact Test For Plastic Film

,

LCD Display Falling Dart Impact Tester

,

Electronic Falling Dart Impact Tester

Free Falling Dart Impact Test/ Drop Dart Impact Test For Plastic Flim

Product Description



Introduction:

The machine is suitable for plastic film or sheet do the Free Falling Dart Impact Test under certain height,measure 50% plastic film or sheet sample breakage when the impact of the mass and energy.


Working Principle:

The dart freely falls and impact test sample; measure the weight needed to damage 50% of the number of samples to evaluate impact resistance.



Features:

u LCD display test data.

u Easy operation, auto process data.

u Pneumatic clips.

u Auto clip and release dart.

u Built-in printer, can print report.

u Two test modes: Mode A and Mode B.



Configuration:

Falling Dart Impact Tester, clips, weights, power cable



User provide: compressed air

Specification



Test mode Mode A, Mode B, optional
Test range Mode A 50~2000g; Mode B 300~2000g
Test precision 1g
Dart weight Mode A 30g; Mode B 260g
Dart size Mode A Φ38mm; Mode B Φ50mm

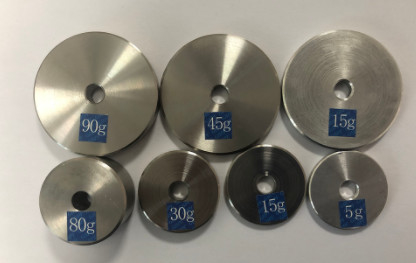

Weights 5g, 15g, 30g, 45g, 80g, 90g, 8pcs for each
Size of weights Mode A Φ30mm; Mode B Φ45mm
Impact height Mode A 66cm; Mode B 150cm
Size of clips outer Φ150mm, inner Φ125mm
Sample size 180×180mm
Gas source compressed air, 0.6~0.8Mpa
Gas port Φ8mm gas pipe
Instrument size 62×40×121/204cm
