Product Details:
|
| Warranty: | 12 Months, 12 Months | Power: | Electronic |
|---|---|---|---|
| MOQ: | 1 Set | Test Condition: | Standard Test Environment |
| Air Pressure: | ≤0.7Mpa | Keyword: | Heat Seal Tester |
| Power Supply: | AC220V±10% 50HZ | Accuracy: | ±1℃ |
| Net Weight: | 25kg | Heat Sealing Time: | 0.01~9999.99s |
| High Light: | Plastic Film Heat Seal Tester,Digital Display Heat Seal Tester,AC220V Heat Seal Tester |
||

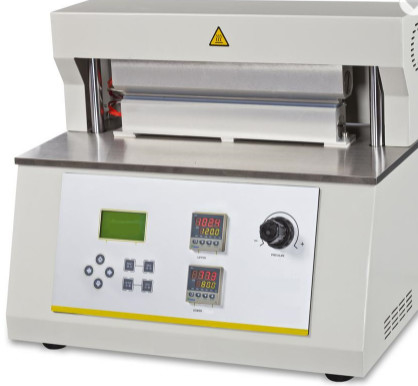

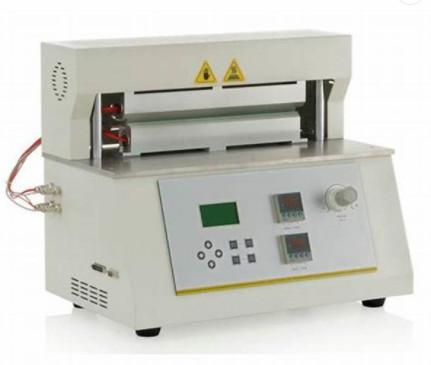

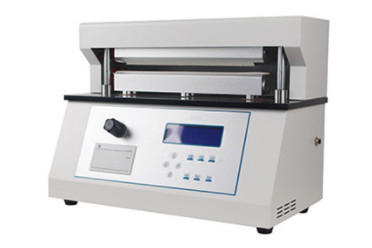

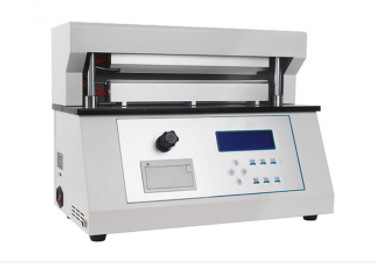

LIYI ASTM F2029 Gradient Laboratory Heat Sealer Plastic Packaging Film Heat Seal Tester
This machine is accurate measure the heat-sealable composite heat seal temperature range, heat seal strength, a suitable the thermal encapsulation speed, sealing pressure of plastic film substrate, flexible packaging composite film, aluminum foil and other heat-sealable composite.
Characteristics:
This product can be a determination of plastic film base material, flexible packaging composite film , coated paper and other heat sealing compound film in a hot sealing pressure and heat sealing parameters of five kinds of heat sealing temperature, make the user more efficiently to obtain optimal heat sealing performance parameters.This machine fully digital control system, the key components adopt international famous brand products, a high degree of automation, easy operation.
Features:
1. Digital display control system, fully automated equipment.
2. Digit P.I.D.temperature control,high accuracy.
3. Six groups of heat sealing head independent temperature control.
4. Combination of setting temperature, gradient, five times test efficiency.
5. Selection of heat sealing knife material, heat sealing surface temperature uniformity.
6. Double cylinder structure, the inner mechanism of pressure balance.
7. Pneumatic control components of high precision, complete set adopt international famous brand.
8. Against the hot design and electric leakage protection, safe operation.
9. Heating element design, uniform heat dissipation, long service life.
10. Mechanical design is concise, friendly man-machine interaction.
| Model | GBB-H |
| Heat sealing temperature | Room temperature ~300℃ |
| Heat sealing pressure | 0~0.7Mpa |
| Heat sealing time | 0.01~9999.99s 1/250,000 |
| Accuracy | ±1℃ |
| Surface | 300*10mm |
| Air pressure | ≤0.7Mpa |
| Test condition | Standard test environment |
| Outside size | 550mm*330mm*460mm(L×B×H) |
| Net weight | 25kg |
| Power |
AC220V±10% 50HZ |
