Product Details:
|
| Warranty: | 12 Months | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Method: | Elmondorf | Testing Accuracy: | 0.2% F.S |
| Cut Length: | 20±0.2mm | External Dimension: | 400*210*530mm |
| Type Of Sample Clamping: | Pneumatic Clamping | Tearing Range: | A:0~16N B:0~32N C:0~64N |
| Sample Size: | 100*63mm | Tearing Length: | 43mm |
| Weight: | 30kg | Power Source: | AC220V 50Hz 100W |
| High Light: | Film Tear Strength Testing Machine,ISO 1974 Tearing Strength Tester,Elmendorf Tearing Strength Tester |
||

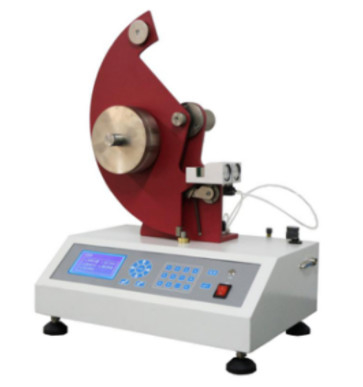

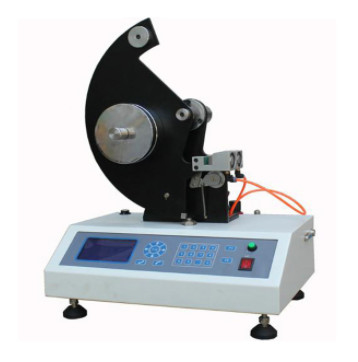

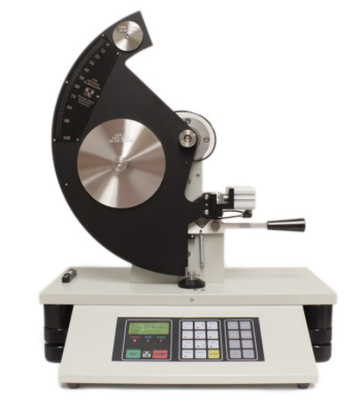

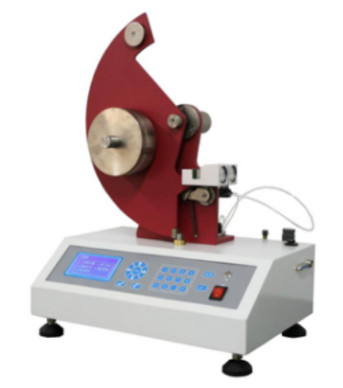

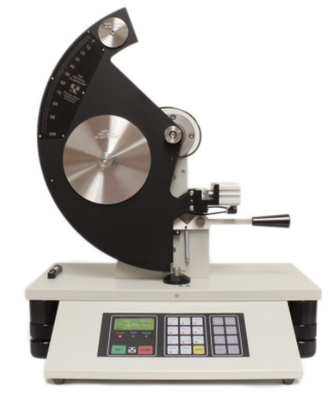

ISO 1974 Elmendorf Method Tearing Resistance Tester Film Tear Strength Testing Machine
It adopts tearing theory, according to Elmendorf methods,used to test tear strength of film,sheet,soft polyvinyl chloride, PVDC,waterproof roll, weave material,polyolefin,fabric.....
Test Standards:ISO6383/2-1983,GB11999-89 ,ISO1974,TAPPI414,GB455 and etc.
| Testing range | A hammer: 0~16N |
| B hammer: 0~32N | |
| C hammer: 0~64N | |
| Testing accuracy | less than ±0.2%F·S |
| Tearing length | 43mm |
| Length of automatic cut | 20±0.2mm |
| Sample size | 100×63mm |
| Type of sample clamping | pneumatic clamping |
| Power source | AC220V 50Hz 100W |
| External dimension | 400x210x530mm |
| Weight | 58kg |
Product Features
1.Use High accuracy angular transducer,resolution is 0.1mN,can make sure testing error within ±1%,user can use weight to check the equipment indicating value.
2.Inside has the balance staff compensating device,reducing effects caused by friction,make testing results more stable and accurate.
3.Liquid English menu,friendly human-computer interface, can finish testing automatically.Has testing data statistics and disposing function,output testing result with miniprinter,can show and record test result automatically.Can reduce error caused by users,and make sure test result stable and accurate.
4.Providing professional calibration weights,has calibration program inside equipment.Enter calibration menu,put calibration weights in the calibration bolts,you can calibrate it directly
