Product Details:
|
| Laser Power: | 220V/50HZ/5KW | Cutting Format: | 250mm*500mm (Double Light Path And Double Work Station) |
|---|---|---|---|
| Laser Cutting Accuracy: | ±20um | Laser Wavelength: | 355nm |
| XY Platform Running Speed: | ≤1000mm/s | CCD Positioning Accuracy: | ±5um @1.3 Megapixels |
| High Light: | CO2 Laser Spot Welding Machine,355nm Laser Spot Welding Machine,1000mm/s Laser Cutting Machine |
||

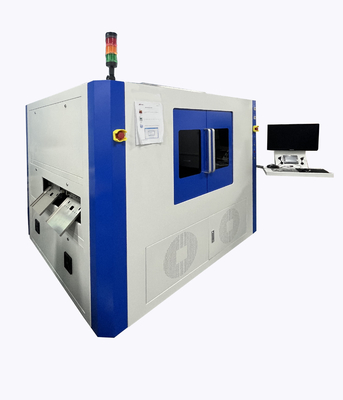

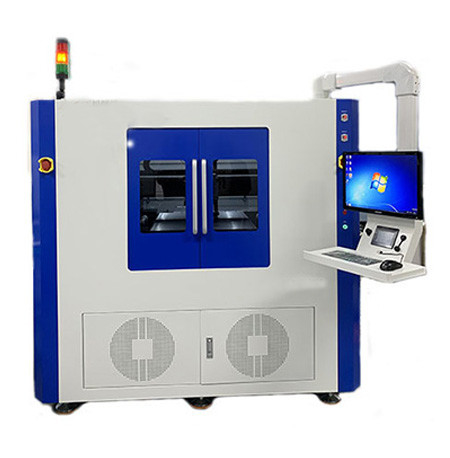

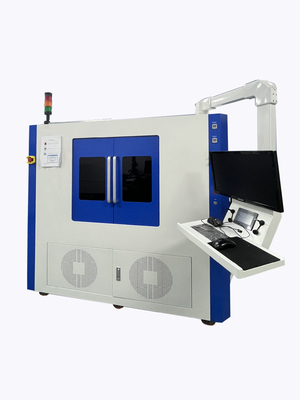

Roll To Roll Sheet Covering Film Color Co2 Laser Cleaning Cutting Spot Welding Machine
Meaing:
The laser cutting machine focuses the laser emitted from the laser into a laser beam with high power density through the optical path system. The laser beam irradiates the surface of the workpiece to make the workpiece reach the melting point or boiling point. At the same time, the high-pressure gas coaxial with the beam will blow away the molten or vaporized metal.
With the movement of the relative position between the beam and the workpiece, the material will eventually form a slit, so as to achieve the purpose of cutting.
It is suitable for high precision, high efficiency and high quality laser cutting fields of various covering films (CVL) and FPC/R-FPC.
Sample Pictures:
Specification:
| Item name | Specification |
| laser power | 20W/30W |
| Laser wavelength | 355nm |
| Laser linewidth |
≤25um(Depending on material and thickness) |
| Cutting format | 250mm*500mm(Double light path and double work station) |
| Laser cutting accuracy | ±20um |
| Cutting thickness | ≤2mm(Depending on power and material) |
| XY platform running speed | ≤1000mm/s |
| CCD positioning accuracy | ±5um @1.3 megapixels |
| Equipment weight | 2800kg |
| Equipment size | 1400mm*1500mm*1850mm |
| Laser power | 220V/50HZ/5KW |
Reference Pictures:
Our advantages:
1.15 years professional experience, 8 years Alibaba gold supplier.
2.Supply test equipment to international testing organizations. Such as TUV and SGS.
3.Supply research and development equipment to famous universities.
Such as, University of Cambridge, University of Ghana ,Tsinghua University,National University of defense Technology etc.
Packing: (Use standard export wooden case)
Our factory:
Guangdong LIYI Technology Co.,Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing,marketing all kinds of environmental equipment.Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
To strengthen the quality awareness,perfect management system,improve product credit,meet customers increasing requirements, our company brought into ISO9001:2008 international quality management system and obtained the certificate: N0006997-1.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing inductry.
