Product Details:
|
| Materials: | Printed | Color: | Black, White And Blue |
|---|---|---|---|
| Laser Power: | 30W/55W/100W | Laser Wavelength: | 9.3-9.4um |
| Laser Linewidth: | ≤0.1mm (Depending On Material And Thickness) | Laser Cutting Accuracy: | ±0.03mm |
| Cut Film Thickness: | ≤1mm Depending On The Material | Power Demand: | 220V/50HZ/4KW |
| High Light: | Ss Sheet Laser Cutting Machine,0.03Mm Ss Sheet Laser Cutting Machine,55W Stainless Steel Laser Cutter |
||

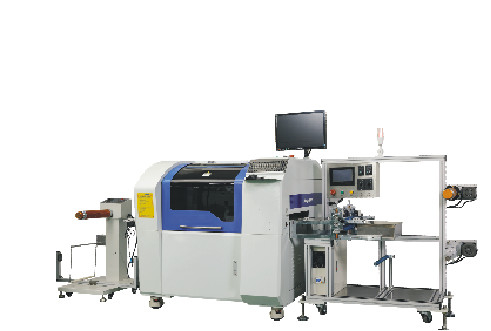

High Precision Metal Stainless Steel Laser Cutting Machine Customizable
Use:
Laser cutting is to replace the traditional mechanical knife with invisible light beam. It has the characteristics of high precision, fast cutting, not limited to the limitation of cutting pattern, automatic typesetting, material saving, smooth incision, low processing cost and so on. It will gradually improve or replace the traditional metal cutting process equipment. The mechanical part of the laser cutter head has no contact with the workpiece and will not scratch the surface of the workpiece during work; Laser cutting speed is fast, the incision is smooth and flat, and generally there is no need for subsequent processing; The cutting heat affected zone is small, and the plate deformation is small; The notch has no mechanical stress and shear burr; High machining accuracy, good repeatability, and no damage to the material surface; NC programming, can process any plan, can cut the whole board with a large format, no need to open a mold, economical and time-saving.
Lasers can cut through many materials and are typically used on a select few types of metal — in particular, carbon steel, mild steel, stainless steel, steel alloys and aluminum
Application:
Cutting materials; Pet, OCA, PMMA, petlog, explosion-proof film, peep proof film, naked eye 3D grid film, hard film, 9h film, flexible glass film, handwritten dimming film, camera lens paste, electronic paper, guide
Precision cutting of light plate, backlight, polarizer, cold light sheet, conductive film and optical film, ceramic substrate, it plastic components, electronic insulation materials, switch film, dust-free cloth, conductive cloth, foam, leather cover, leather, plastic, carbon fiber, injection molding nozzle parts, high-density board, printed circuit board, 3M, ABS, PC, PS, PCR, ITO, El, Nomex, paper insulation materials, plexiglass, acrylic and other non-metallic materials.
Sample pictures:
Specifications:
| Item | Specification |
| Laser power | 30W/55W/100W |
| Laser wavelength | 9.3-9.4um |
| Laser linewidth | ≤0.1mm(Depending on material and thickness) |
| Cutting format | 600*500mm Customizable |
| Laser cutting accuracy | ±0.03mm |
| Cut film thickness | ≤1mmDepending on the material |
| X/y platform repetition accuracy | ±0.01mm |
| CCD visual range | 6*8mm |
| Processing drawing file | Dxf |
| XY platform running speed | Max 10 m/min |
| Power demand | 220V/50HZ/4KW |
Reference Pictures:
