Product Details:
|
| Inner Material: | #SUS 304 Stainless Steel | Controller: | PID Thermostat Or PLC Controller |
|---|---|---|---|
| Heating Speed: | Heating Speed: RT~100C, 10min | Accuracy: | 0.3 Degree |
| Uniformity: | 1% | Circulation System: | Air Force Level Cycle |
| High Light: | custom industrial oven,hot air circulating oven |
||

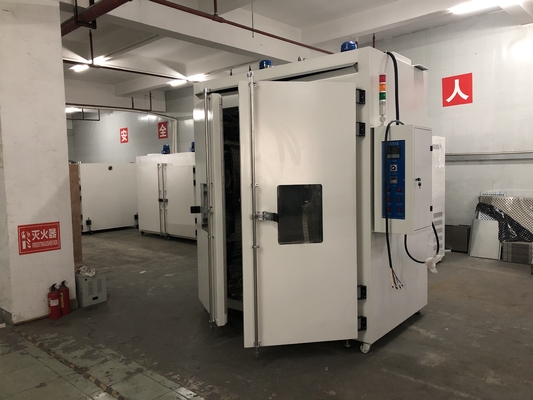

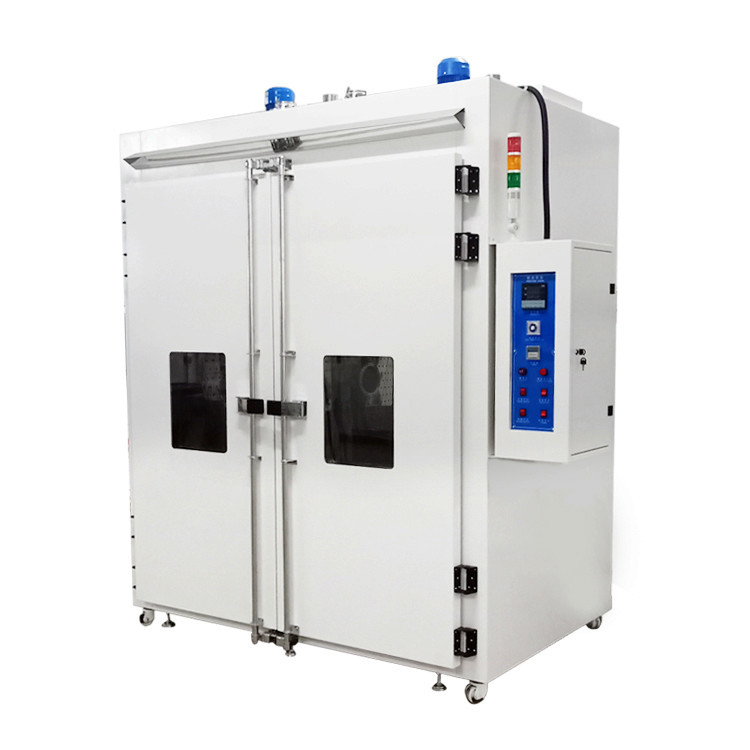

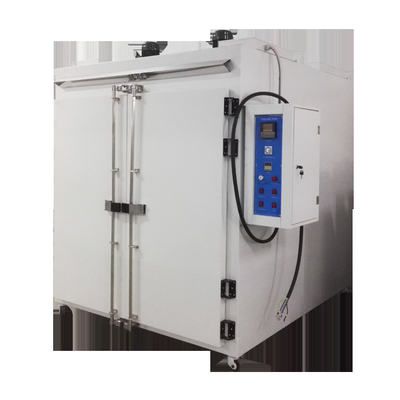

Customize Constant Hot Air Circulating Oven Climatic Double Door Oven
This machine can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . It supplys precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution.
Characteristics:
1. Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2. Use new high temperature resistant long shaft motor
3. use Turbine fan.
4. Silicone forced tight
5. Overtemperature protection, super load automatic power system.
6. Circulation system: air force level cycle.
7. Heating system: PID+S.S.R.
8. The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function
9. Timer: temperature to time, when the power failure alarm indication.
10. According to customer demand matching glass window can be customized according to customer specifications specified.
Specifications: All requirements can customize
|
Model |
Inner Size W*H*D(cm) |
External Size W*H*D(cm)
|
Temperature Range(°C) | Heating up Time |
Accuracy (°C) |
Uniformity (°C) |
Power |
Rate of work (kw) |
| LY-645 | 45×40×40 | 66×92×55 |
(A-D) A:200°C B:300°C C:400°C D:500°C
|
RT~100°C About 10min |
±0.3 | ±1% |
220V Or 380V |
3.5 |
| LY-660 | 50×60×50 | 70×125×65 | ±0.3 | ±1% | 4.5 | |||
| LY-690 | 60×90×50 | 80×156×65 | ±0.3 | ±1% | 5.5 | |||
| LY-6100 | 80×100×60 | 100×166×75 | ±0.3 | ±1% | 8 | |||
| LY-6120 | 90×120×60 | 110×186×75 | ±0.3 | ±1% | 10 | |||
| LY-6140 | 140×120×60 | 160×186×75 | ±0.3 | ±1% | 12 | |||
| LY-6160 | 160×140×80 | 180×206×97 | ±0.3 | ±1% | 14 | |||
| LY-6180 | 180×140×100 | 200×200×118 | ±0.3 | ±1% | 16 |
Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
