Product Details:
|
| Laser Power: | 15W/20W/30W... | Laser Wavelength: | 355nm/532nm/1064nm |
|---|---|---|---|
| Laser Linewidth: | Depending On Material And Thickness | Color: | White |
| Materials: | Printed | Cutting Format: | 350mm*300mm (Single Table) |
| Laser Cutting Accuracy: | ±20um | Equipment Weight: | About 1300kg |
| Cutting Sample: | Metal / Non-metal | CCD Positioning Accuracy: | ±5um1.3 Megapixels |
| High Light: | CO2 PCB Laser Cutting Machine,UV PCB Laser Cutting Machine,Nanosecond Laser Cutting Machine |
||

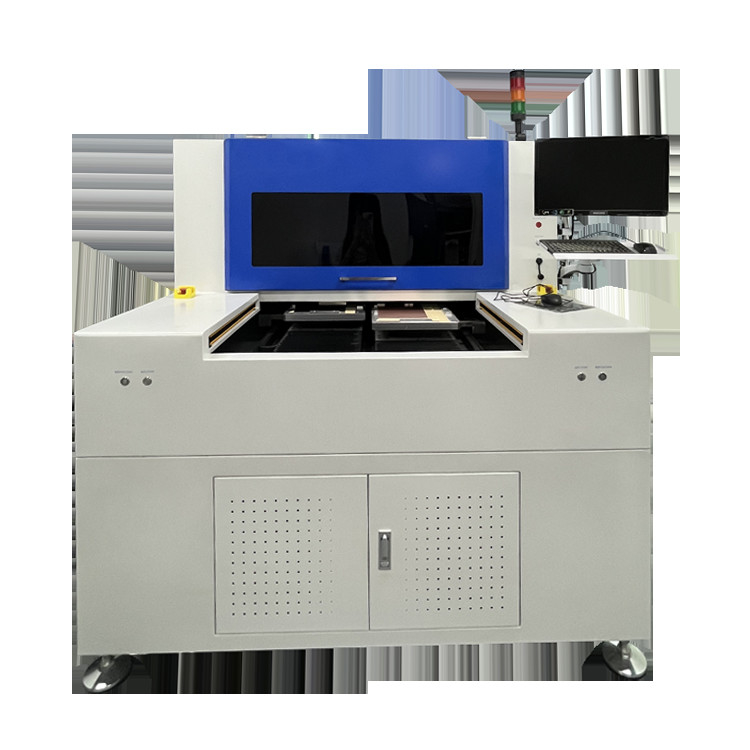

Uv Single Table High Precision Nanosecond UV Co2 Laser Spot Engraver Plate Splitting Machine
Used:
Laser is the core equipment of PCB laser cutting machine, and the core technology also comes from it. Laser beam quality, average power, pulse energy, pulse frequency, pulse width and other parameters directly affect the processing effect and efficiency. According to the differences of PCB materials, the types of lasers are also different. For example, QCW fiber laser is generally selected for aluminum substrate, and UV laser or green laser is generally selected for cutting FR4, copper clad laminate, glass fiber board, etc.
Application:
FPC/PCB laser plate splitting and cutting; Laser plate splitting and cutting of camera module; Laser cutting of covering film shape; Laser cutting of fingerprint packaging chip; Laser precision cutting of metal / non-metal sheet.
Sample Pitures:
Specification:
| Item | Specification |
| laser power | 15W/20W/30W... |
| Laser wavelength | 355nm/532nm/1064nm |
| Laser linewidth | ≤25um Depending on material and thickness |
| Cutting format | 350mm*300mm |
| Laser cutting accuracy | ±20um |
| Cutting thickness | Depending on power and material |
| XY platform running speed | ≤1000mm/s |
| CCD positioning accuracy | ±5um@1.3 megapixels |
| Equipment weight | 1300kg |
| Equipment size | 1200mm*1100mm*1650mm |
| Power | 220V/50HZ/5KW |

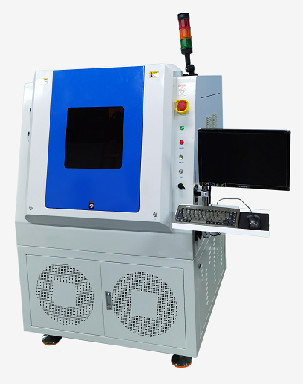

Reference Pictures:
Our advantages:
1.15 years professional experience, 8 years Alibaba gold supplier.
2.Supply test equipment to international testing organizations. Such as TUV and SGS.
3.Supply research and development equipment to famous universities.
Such as, University of Cambridge, University of Ghana ,Tsinghua University,National University of defense Technology etc.
Packing: (Use standard export wooden case)
