Product Details:
|
| Materials: | Printed | Color: | White |
|---|---|---|---|
| Laser Power: | 30W/55W/100W | Laser Wavelength: | 9.4um |
| Laser Linewidth: | Depending On Material And Thickness | Laser Cutting Accuracy: | ±0.03mm |
| Cut Film Thickness: | Depending On The Material | Power Demand: | 220V/50HZ |
| Processing Drawing File: | Dxf | XY Platform Running Speed: | Max 10 M/min |
| High Light: | 100W Laser Cutting Machine,PMMA Laser Cutting Machine,220V Laser Marking Machine |
||
High Precision Metal Stainless Steel Laser Cutting Machine Customizable
Introduction:
The laser cutting machine focuses the laser emitted from the laser into a laser beam with high power density through the optical path system. The laser beam irradiates the surface of the workpiece to make the workpiece reach the melting point or boiling point. At the same time, the high-pressure gas coaxial with the beam will blow away the molten or vaporized metal.
With the movement of the relative position between the beam and the workpiece, the material will eventually form a slit, so as to achieve the purpose of cutting.
Application:
Cutting materials; Pet, OCA, PMMA, petlog, explosion-proof film, peep proof film, naked eye 3D grid film, hard film, 9h film, flexible glass film, handwritten dimming film, camera lens paste, electronic paper, guide
Precision cutting of light plate, backlight, polarizer, cold light sheet, conductive film and optical film, ceramic substrate, it plastic components, electronic insulation materials, switch film, dust-free cloth, conductive cloth, foam, leather cover, leather, plastic, carbon fiber, injection molding nozzle parts, high-density board, printed circuit board, 3M, ABS, PC, PS, PCR, ITO, El, Nomex, paper insulation materials, plexiglass, acrylic and other non-metallic materials.
Sample pictures:
Specifications:
| Item | Specification |
| Laser power | 30W/55W/100W |
| Laser wavelength | 9.3-9.4um |
| Laser linewidth | ≤0.1mm(Depending on material and thickness) |
| Cutting format | 600*500mm Customizable |
| Laser cutting accuracy | ±0.03mm |
| Cut film thickness | ≤1mmDepending on the material |
| X/y platform repetition accuracy | ±0.01mm |
| CCD visual range | 6*8mm |
| Processing drawing file | Dxf |
| XY platform running speed | Max 10 m/min |
| Power demand | 220V/50HZ/4KW |

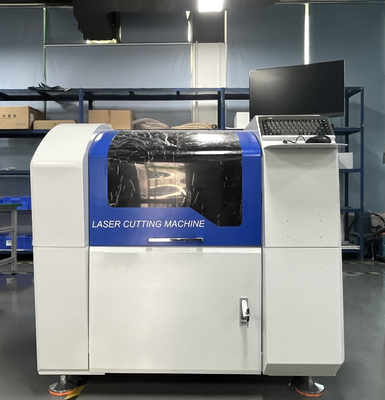

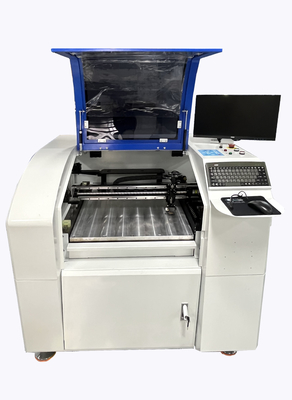

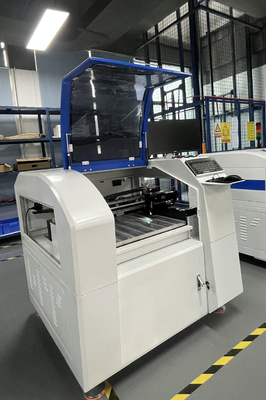

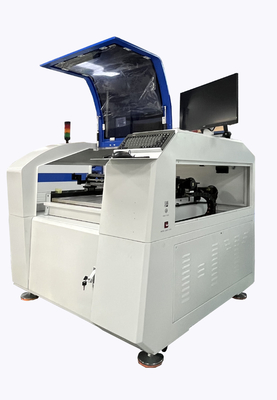

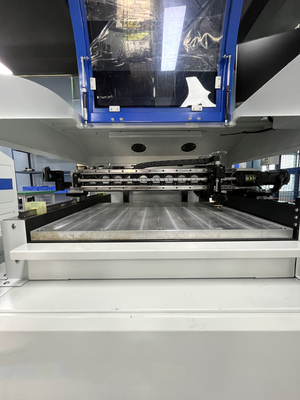

Reference Pictures:
Our advantages:
1.15 years professional experience, 8 years Alibaba gold supplier.
2.Supply test equipment to international testing organizations. Such as TUV and SGS.
3.Supply research and development equipment to famous universities.
Such as, University of Cambridge, University of Ghana ,Tsinghua University,National University of defense Technology etc.
Packing: (Use standard export wooden case)
Out factory:
1.15 years professional experience, 8 years Alibaba gold supplier.
2.Supply test equipment to international testing organizations. Such as TUV and SGS.
3.Supply research and development equipment to famous universities.
Such as, University of Cambridge, University of Ghana ,Tsinghua University,National University of defense Technology etc.
