Plastic Pipe Hydrostatic Pressure Testing Machine 3 stations with 20Mpa

Plastic Pipe Hydrostatic Pressure Testing Machine 3 stations with 20Mpa
Plastic Pipe Hydrostatic Pressure Testing Machine 3 stations with 20Mpa
Plastic Pipe Hydrostatic Pressure Testing Machine 3 stations with 20Mpa Plastic Pipe Hydrostatic Pressure Testing Machine 3 stations with 20Mpa Plastic Pipe Hydrostatic Pressure Testing Machine 3 stations with 20Mpa

Large Image :  Plastic Pipe Hydrostatic Pressure Testing Machine 3 stations with 20Mpa

Product Details:
Place of Origin: CHINA
Brand Name: LIYI
Certification: ISO , CE
Model Number: LY-3088
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: US$1999~9999
Packaging Details: export polywood case
Delivery Time: 5-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100set per month

Plastic Pipe Hydrostatic Pressure Testing Machine 3 stations with 20Mpa

Description
Pressure Range: 0~10MPa (can Customize) Control Range Of Water Box: RT~95C
Pressure Resolution: 0.001MPa Temperature Control Accuracy: 0.5C
Timing Range: 0~9999.59 Hours Timing Accuracy: 0.1%
Test Stations: 50 Roads At Most For Single Machine Power Supply: AC220V
Test Pipe Range: All Size Can Customize Station: 3
High Light:

impact test equipment

,

material testing machine



Precision Plastic Testing Equipment , Plastic Pipe Hydrostatic Pressure Testing Machine





Product Overview
      Plastic Pipe Hydrostatic Pressure Testing Machine is nice in appearance, smiple in structure and of high precision and stability as well as easy to operate, it is the it is the necessary testing machine for quality inspection department of kinds of research institutes and pipes manufacturers.





Accordant Standards: ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599 ISO13479





Performance Introduction:
1),   Plastic Pipe Hydrostatic Pressure Testing Machine Each road has a“microcomputer control unit”(real branch control—prevent from influencing all of the roads if use a set of system control many roads and have problems—now some instrument uses a set of system controls many roads )to have microcomputer control, and the parameters like pressure, accuracy, time of the road can be set and control independently in the case of high-position system computer shut down, real time display pressure, time, status(eight)and store each parameter.(In case pressure data lost when system computer off line—now for some instruments, when the computer is offline, there will be no data, thus the tests done in this period are in vain); at the same time, judge 8 test status, i.e, pressure rise,pressure supplement,decompression, over pressure, working, finish, leakage and burst;automatic distinguish time parameters like“effective test time”“ineffective time”“ remaining time”.Meanwhile automatic adjust the relationship between“set time”and “effective time”, enable the test stop automatically when the “effective time”reaches “set time”(in case the system in the “fault time” and “ineffective time”stop before it reaches the time during nights and holidays ).



2). Magnetic valve, each road has two branches. Thanks to advanced pressure method synchronize with Germany and Denmark, a pressure rise and supplement electric valve can respectively change operating frequency and time according to program and test, so that quick and accurate pressure supplement can be realized for large caliber PE sample. Thus the instrument can be widely used(r20—r630 PE pipe)and has high accuracy of pressure control(superior to±1%, maximum can reach ±0.001Mpa)



3). A set of water pressure station imported from Denmark is superior to homemade water pressure test pump and gas drive water pump(use gas to drive water) equipped by some manufactures which has large flow and good performance,as well as longer service life and low noise, and air pump is not required.



4). Plastic Pipe Hydrostatic Pressure Testing Machine Each road has a high precision sensor from the department of space guarantees 0.001Mpa resolution and highest press accuracy can reach set value±0.001Mpa.



5). Plastic Pipe Hydrostatic Pressure Testing Machine Each road also has many one-way pipe regulating vales.



6). Multiline digital display LCD screen,multi storage communication(include U disk storage) , more extensive protocol, so that it can communicate with PC, PLC, touch screen and many other display terminal.



7). a set of brand computer





Technical Parameter
1,pressure range of the main engine:0~10MPa (adjust at random)
2,control range of water box:room temperature~95℃
3,pressure resolution of main engine:0.001MPa
4,temperature control accuracy of water box: ±0.5℃.
5,constant pressure range of main engine:<+2%,-1% of the set value
6,temperature uniformity of the water box:±0.5℃.
7,constant pressure accuracy of main engine:no lower than ±1%
8,temperature resolution of water box: 0.1℃.
9,timing range:0~9999.59 hours
10,timing accuracy:≤0.1%
11,water box is equipped with short-circuit protection device, the material is stainless steel
12,insulating layer thickness of the water box:: thicker than 83mm,thinner than 95 mm
13,test stations:50 roads at most for single machine
14,power supply of pressure control system:AC220V,1.5kw
15,power supply of temperature control system:AC380V,18kw





Specifications of pipe clamps:  (All size can customize)

Specification

Unit

D25

set

D32

set

D40

set

D50

set

D63

set

D75

set

D90

set

D110

set

D125

set

D160

set

D200

set

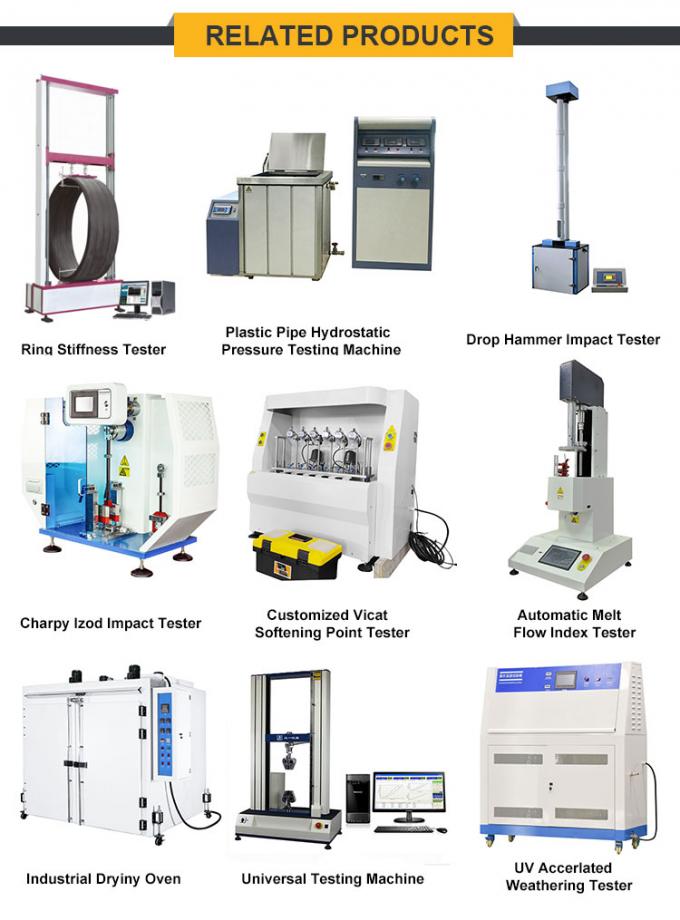

Related Products
