Tack Tape Primary Computer Control Loop Tack Tester Less Than 1% Error

Tack Tape Primary Computer Control Loop Tack Tester Less Than 1% Error
Tack Tape Primary Computer Control Loop Tack Tester Less Than 1% Error Tack Tape Primary Computer Control Loop Tack Tester Less Than 1% Error

Large Image :  Tack Tape Primary Computer Control Loop Tack Tester Less Than 1% Error

Product Details:
Place of Origin: Guangdong , China
Brand Name: LIYI
Certification: ISO
Model Number: LY-6031
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 days after receving deposit
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 Pieces per Month

Tack Tape Primary Computer Control Loop Tack Tester Less Than 1% Error

Description
Name: Computer Control Loop Tack Tester Measure Range: 100N
Measure Accuracy: Less Than 1% Error Test Plate Size: L(100.0mm)*W(24.0mm)*T(2.0mm)
Sample Roughness: 50nm±25nm Power: Power:220V, 50HZ
High Light:

abrasion testing machine

,

adhesion testing equipment



Tack Tape Primary Computer Control Loop Tack Tester Less Than 1% Error



Introduction:



It is used to do the loop tack test of kinds of adhesive,tape,can meet FINAT (FINAT Test Method

No. 9:measurement), ASTM D6195, PSTC 16 test standards.



 Work Theory:



The loop tack specimen with touch with standard glass plate with constant speed 300mm/min,then the

loop tack specimen will separate from test plate with 300mm/min,it will have a max force,this force is

the loop tack force.



Technical Parameters:



Measure range

0-100N (can choose one)

Measure accuracy

1 level

Test speed

300mm/min(1-500mm/min,adjustable)

Speed and accuracy

Less than 1%

Specimen size

L(125.0mm)*W(25.0mm)

Test plate size

L(100.0mm)*W(24.0mm)*T(2.0mm)

Sample roughness

50nm±25nm

Machine size

(H)55cm*(W)30cm*(D)35cm

Weight

18kg

Power

220V, 50HZ



Product Features



1. Menu interface and PVC operation panel

2. Microcomputer control, computer control and software are free

3. Compact structure, exquisite, humanized structure design

4. Sensing system adopts the world famous imported components, stable and reliable performance

5. According to maximum, minimum, average

6. The micro printer, print test results at any time

7. Humanized fixture, adhesion can be arbitrarily altered substrate

8. Standard RS232 interface, convenient external connection and data transmission system with

computer

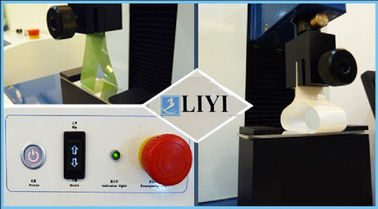

Photo Reference Software
Tack Tape Primary Computer Control Loop Tack Tester Less Than 1% Error 0
