Product Details:
|
| Material: | Inner Stainless Steel | Ozone Concentration Range: | 0-500pphm |
|---|---|---|---|
| Related Standards: | JIS K 6259 , ASTM1149 , ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003 , GB 2951 | Temperature Range: | RT+10℃～60℃ |
| Test Chamber Size: | All Size Can Customize | Temperature Deviation: | ±0.5℃ |
| Temperature Uniformity: | ±2℃ | ||
| High Light: | environmental room,environmental testing equipment |
||

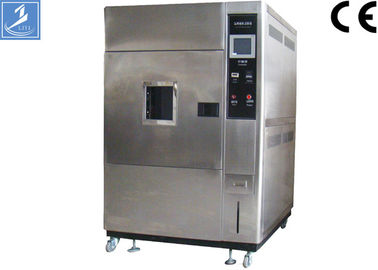

Stainless Steel Ozone Accelerated Weathering Tester To Test Rubber Products
Product Introduction:
Product introduction
Rubber Stainless Steel Ozone Accelerated Weathering Testing Chamber is a major factor in rubber cracking although it is rare in the atmosphere,Rubber Stainless Steel Ozone Accelerated Weathering Testing Chamber simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products.
Quick Detail
Inner Size (W*H*D) | 40*50*40cm |
External Size (W×H×D) | 85*140*95cm |
Inner material | SUS 304 stainless steel |
Outer material | SPCC Painted |
Temperature range | RT+10℃～60℃ |
Temperature deviation | ±0.5℃ (no load) |
Temperature uniformity | ±2℃ (no load) |
Ozone concentration range | 0～500pphm (or custom made) |
Corresponding standards:JIS K 6259 , ASTM1149 , ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003 , GB 2951
Applicable industries:
Rubber Stainless Steel Ozone Accelerated Weathering Testing Chamber is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.
Characteristics:
Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.
Specifications:
Model | LY-CY-80 | LY-CY-150 | LY-CY-225 | LY-CY408 | LY-CY-800 | LY-CY-1000 |
Inner size W*H*D(cm) | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 80*100*100 | 100*100*100 |
Outer size W*H*D(cm) | 85*140*95 | 95*150*115 | 95*165*115 | 105*175*135 | 145*190*135 | 155*195*150 |
Inner material | SUS 304 stainless steel | |||||
Outer material | SPCC Painted | |||||
Temperature range | RT+10℃～60℃ | |||||
Temperature deviation | ±0.5℃ (no load) | |||||
Temperature uniformity | ±2℃ (no load) | |||||
Ozone concentration range | 0～500pphm (or custom made) | |||||
Ozone concentration deviation | 10% | |||||
Ozone flow rate | 12~16mm/s | |||||
Sample shelf roating speed | 20~25mm/s | |||||
Controller | TEMI 880 touch screen programmable controller | |||||
Ozone generator | using voltage silent discharge tube produce ozone | |||||
Power | AC 220V or 380V ±10%, 50/60HZ | |||||
