Product Details:
|
Warranty: | 1 Year, 1 Year | Power Supply: | 220V 50Hz |
---|---|---|---|
Keyword: | Cold Hot Impact Chamber | Test Standard: | QC/T17-92,EIA 364-32,SJ/T10186-91Y73,GJB |
Temperature Conversion Time: | Less Than 10S | Uses: | Thermal Shock Chamber |
Power: | Electronic | Color: | Customer Required |
Temperature Recovery Time: | Less Than 5mins | Temperature Deviation: | Less Than 2℃ |

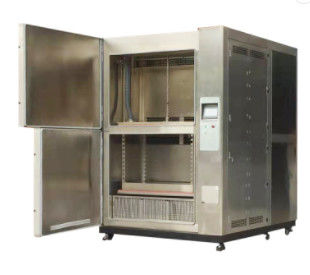

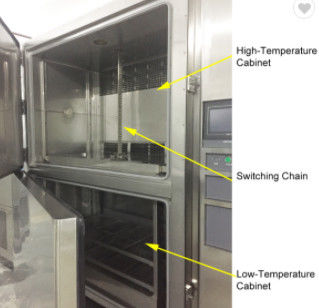

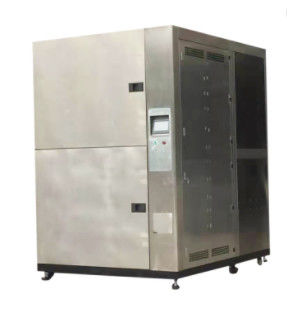

LIYI Auto Cold Hot Impact Thermal Temperature Shock Cycling Chamber
Model | LY-TS-42 | LY-TS-80 | LY-TS-150 | LY-TS-225 |
Inner Size(mm) | 400×350×300 | 400×500×400 | 500×600×500 | 500×750×600 |
Temperature Range | High temperature chamber:RT~+150°C Low temperature:RT~-40°C | |||
Temperature Fluctuation | Less than ±0.5°C | |||
Temperature Deviation | Less than ±2°C | |||
Temperature Conversion Time | Less than 10S | |||
Temperature Recovery Time | Less than 5min | |||
Material |
External material: SUS#304 Stainless steel plate or Cold rolled steel sheet fine powder baking paint Internal material:SUS#304Stainless steel plate |
|||
Cooling System |
Water-cooled or air-cooled, Tecumseh compressor in France, environment friendly refrigerant |
|||
Controller | Programmable temperature controller | |||
Temperature Sensor | PT 100 *3 | |||
Setting Range |
TEMPERATURE : -100.00+200.00°C / TIME : OH1M ~ 999H 59M / CYCLE 0~ 999 CYCLE |
|||
Cooling System | Water-cooled/air-filled type | |||
Power | AC380V/50HZ |
