Product Details:
|
| Name: | Fabric UV Aging Test Chamber,Accelerated UV Lamp Tester For Sunlight Resistant Test | Inside Dimensions: | 45 * 117 * 50 Cm |
|---|---|---|---|
| Outer Dimensions: | 70 * 135 * 145 Cm | Controller: | South Korean Imported Touch Screen Programmable Controller |
| Temperature Range: | RT + 10 °C ~ 70 °C | Rate Of Work: | 4.0 (KW) |
| Himidity Range: | ≥ 95% R.H | Distance Between Lamps: | 35 Mm |
| Distance Between Samples And Lamps: | 50 Mm | Rate of the Lamp: | 40 W |
| High Light: | aging test chamber,accelerated weathering machine |
||
Fabric UV Aging Test Chamber,Accelerated UV Lamp Tester For Sunlight Resistant Test
Product description:
This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
Standards:
It has become the standards of the UV test, fit standards of ISO, ASTM, DIN, JIS, SAE, BS, ANSI, GM, U.S.
GOVT, etc.
Product description:
The surface of the specimen from the lights from the nearest parallel to the surface: about 50mm
Wavelength range: UV-A wavelength range of 315 ~ 400nm
Within the radiation intensity 1W/m2/340nm
Temperature Resolution: 0.1 ℃
Light Temperature range: 50 ℃ ~ 70 ℃ / temperature tolerance of ± 3 ℃
Condensing temperature range: 40 ℃ ~ 60 ℃ / temperature tolerance of ± 3 ℃
Blackboard thermometer measuring range: 30 ~ 80 ℃ / tolerance of ± 1 ℃
Temperature control: PID self-tuning temperature control mode
Humidity range: about 45% ~ 70% R.H
Sink requirements: water depth less than 50mm, and a water supply automatic controller
Standard Specimen size: 75 × 150mm 48pcs
Recommended instrument environment: 5 ~ 35 ℃, 40% ~ 85% R • H, 300mm from the wall
Voltage: 220V ± 5%, single-phase three-wire, 50Hz, 10A, 15A GFCI requirements
Specifications:
|
Model |
LY-ZW |
|
|
Inside Dimensions (CM) |
45 * 117 * 50 cm |
|
|
Outer Dimensions (CM) |
70 * 135 * 145 |
|
|
Rate of Work |
4.0 (KW) |
|
|
Performance Index
|
Temperature Range |
RT+10 °C ~ 70 °C |
|
Humidity Range |
≥ 95 % R.H |
|
|
Distance Between Lamps |
35 mm |
|
|
Distance Between Samples and Lamps |
50 mm |
|
|
Specimen Number |
L300 mm * W75 mm, about 20 pieces |
|
|
Ultraviolet Wavelength |
290nm~400nm UV-340,UV-313,UV-351 (state clearly in your order ) |
|
|
Rate of the Lamp |
40 W |
|
|
Controlling System |
Controller |
South Korean imported touch screen programmable controller |
|
Illumination Heating System |
All independent system, nickel chrome alloy electrical heating type heater |
|
|
Condensation Humidifying System |
Stainless steel shallow evaporative humidifier |
|
|
Blackboard Temperature |
Double metal blackboard meter |
|
|
Water Supplying System |
Humidification water supplying automatic control |
|
|
Exposure Way |
Moisture condensation way exposure, light radiation exposure |
|
|
Safety Device |
Leakage, short circuit, super temperature, water shortage and over current protection |
|

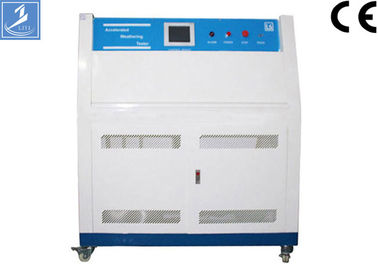

Photo show:
