Product Details:
|
| Name: | Programmable Accelerated Weather Testing UV Aging Test ChamberWith PID SSR Control | Inside Dimensions: | 45 * 117 * 50 Cm |
|---|---|---|---|
| Outer Dimensions: | 70 * 135 * 145 Cm | Controller: | South Korean Imported Touch Screen Programmable Controller |
| Temperature Range: | RT + 10 °C ~ 70 °C | Rate Of Work: | 4.0 (KW) |
| Himidity Range: | ≥ 95% R.H | Distance Between Lamps: | 35 Mm |
| Distance Between Samples And Lamps: | 50 Mm | Rate of the Lamp: | 40 W |
| High Light: | accelerated uv testing,accelerated weathering machine |
||
Programmable Accelerated Weather Testing UV Aging Test ChamberWith PID SSR Control
Product description
Accelerated Weather UV test machine is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
Standards:
It has become the standards of the UV test, fit standards of ISO, ASTM, DIN, JIS, SAE, BS, ANSI, GM, U.S.
GOVT, etc.
Product description:
SUS 304 Steel UVB Accelerated Weathering Testing Chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and SUS 304 Steel UVB Accelerated Weathering Testing Chambers can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
Specifications:
|
Model |
LY-ZW |
|
|
Inside Dimensions (CM) |
45 * 117 * 50 cm |
|
|
Outer Dimensions (CM) |
70 * 135 * 145 |
|
|
Rate of Work |
4.0 (KW) |
|
|
Performance Index
|
Temperature Range |
RT+10 °C ~ 70 °C |
|
Humidity Range |
≥ 95 % R.H |
|
|
Distance Between Lamps |
35 mm |
|
|
Distance Between Samples and Lamps |
50 mm |
|
|
Specimen Number |
L300 mm * W75 mm, about 20 pieces |
|
|
Ultraviolet Wavelength |
290nm~400nm UV-340,UV-313,UV-351 (state clearly in your order ) |
|
|
Rate of the Lamp |
40 W |
|
|
Controlling System |
Controller |
South Korean imported touch screen programmable controller |
|
Illumination Heating System |
All independent system, nickel chrome alloy electrical heating type heater |
|
|
Condensation Humidifying System |
Stainless steel shallow evaporative humidifier |
|
|
Blackboard Temperature |
Double metal blackboard meter |
|
|
Water Supplying System |
Humidification water supplying automatic control |
|
|
Exposure Way |
Moisture condensation way exposure, light radiation exposure |
|
|
Safety Device |
Leakage, short circuit, super temperature, water shortage and over current protection |
|

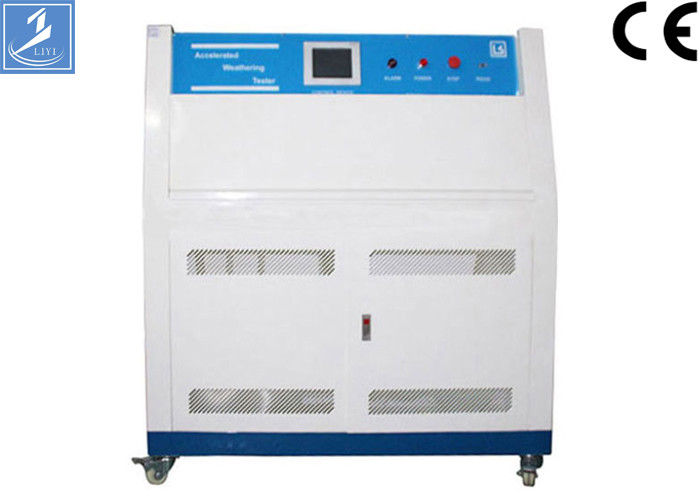

Photo show:
