Product Details:
|
| Model: | LY-RR | Usage: | Plastic Testing Machine |
|---|---|---|---|
| Temperature: | 400℃ | Temperature Accuracy: | ±0.2 ℃ |
| Machine Size: | 250*510*350mm | Pistons Parameters: | Piston Head:9.475+-0.015mm |
| Piston Length: | H=6.35±0.1mm | Paramters: | Extrusion Hole 1=2.095±0.005mm |
| Temperature Recovery Time: | Less Than 4 | Power: | AC220V±10% 50HZ |
| High Light: | impact test equipment,material testing equipment |
||

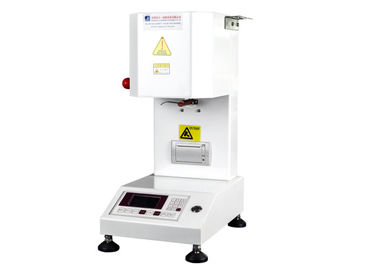

Plastic Testing Machine MFI Themoplastic Plastic Melt Flow Rate Index Tester
Description:
This Instrument can be used for ABS, polystyrene, polyethylene, polypropylene, polyamide, fiber resin, acrylate, POM, fluorine plastic, polycarbonate and other plastic materials, the melt flow rate (MFR) or the melt volume flow rate (MVR) to be determined.
It's is a high precise melt testing instruments for the measurement of melt flow rate (MFR)/(MI) and melt volume rate (MVR) in quality control and research applications.
It's suitable to measure melt flow character of PP, PE, POM, ABS plastics and plastic productions, widely used in factories, products quality testing station, scientific and research institutes, and concerned industries.
Standards:
GB/T3682-2000,ISO1133-97, ASTM1238
Specification:
| Machine size(W*H*D) | 250*510*350mm |
| Power | AC220V±10% 50Hz |
| Barrel parameters | Inner hole 9.55±0.025mm |
| Pistons parameters | Piston head: 9.475±0.015mm |
| Piston length | H=6.35±0.1mm |
| Paramters | Extrusion hole 1=2.095±0.005mm |
| Temperature parameter |
With intelligent temperature control instrument, with four pairs of significant temperature setting control, PID parameters can be automatically set, precision up to ± 0.1 degree centigrade |
| Temperature rangeradius | 400℃ |
| Temperature accuracyblade to jawand dust collector | ±0.2 ℃ |
| Display resolution | 0.1℃ |
| Maximum comsuption | < 600W |
| Temperature recovery time | less than 4 min. |
| Weight parameters | |
| Weight accuracy | ±0.5% |
| Basic configuration |
0.325kg, 1.2kg, 2.16kg, 3.8kg, 5.kg, 10.0kg, 12.kg, 21.6kg |
| Position detection | |
| Loop distance from up and down | 30mm |
| Control precision | ± 0.1mm |
| Test flow control | |
| Times of cutting the material | 0~10 times |
| Material cutting interval | 0~999s(set reference Table 2) |
| Control flow reaches the set temperature without volatility | |
| Barrel temperature time | 15 min. |
| Material be installed | 1 min |
| Material sample temperature recovery time | 4 min. |
| When binder set | 1min |
Characteristics:
1. Fast heating speed, very small overshoot.
2. High precision of constant temperature.
3. Can fastly recover to constant temperature condition after padding.
4. Can use maunal and automatical material trimming test method.
5.LCD display, equipment with built-in micro printer, test result can be printed automaticaly.
Our Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 380V, insurance indicator.
2. Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
