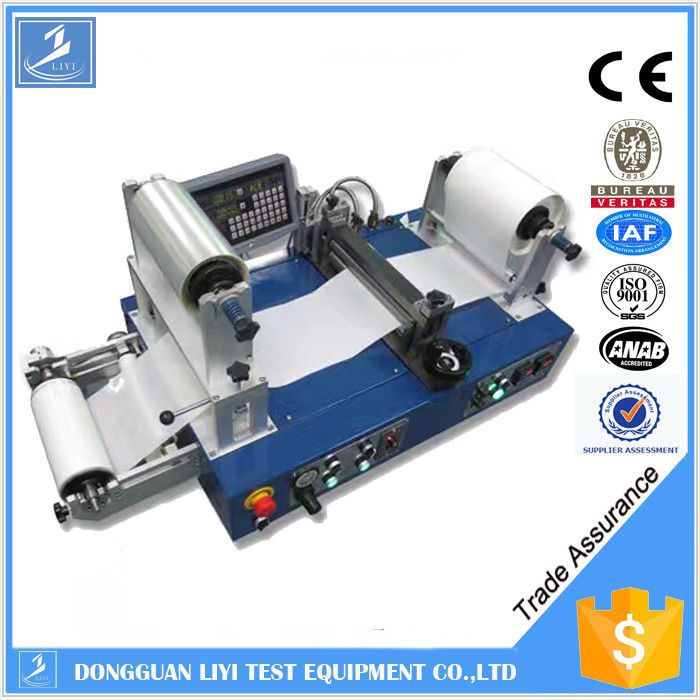

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

China Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine supplier
Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine supplier Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine supplier Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine supplier Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine supplier

Large Image :  Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Product Details:

Place of Origin: Dongguan
Brand Name: LIYI
Certification: CE ISO
Model Number: TUJ-1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Pending negotiation
Packaging Details: plywood case
Delivery Time: 5-20 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Power: Electronic Packaging Material: Plastic
Maximum Coating: 280mm Dimension: 1200*620*550mm(L*W*H)
Coating Speed: Adjustable Power Source: 1 Phase, AC 220V/330V
Application: Commodity Commodity: Film

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Product Application


The precision laboratory benchtop Hot Melt Coater is capable of producing coated samples or small production of hot melt adhesives, and then laminating to a variety of foils, films, and papers. Lab scale simulations of production processes can be easily set up and studied.

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine


Main Features


1) Self contained brake unwinds for adhesive carrier and facestock
2) Requires a 110V/20A circuit and compressed air source
3) Pivot control on adhesive carrier and facestock to control web alignment
4) Laminating speed and pressure are controllable
5)Maximum operating temperature 482℉(250℃)
6)Clean up is easily accomplished through quick, uncomplicated disassembly
7)Generates sample laminates as long as needed
8)Precision ground coating bars
9)Both coating bars and the back reservoir are heated independently
10)Width of coating can be controlled by teflon insert side dams
11)Durable aluminum and steel construction means a long machine life with consistent performance
12)Variable speed controller can be adjusted
13)Non rotating bars is separated from the reservoir, with PT-100 high-precision PID temperature control mode
14)There is a large diameter High precise micrometer to adjust the coating gap to control coating thickness, and show the coating thickness through grating scale. The resolution is 0.005mm, that is the minimum coating thickness is 0.005mm.
15)The maximum coating width is 280mm. Width of coating can be controlled by teflon insert side dams. The precision hot melt coator is capable of producing coated samples, and small production. it can coat for a unlimited length tape, and automatic winding.
16)Reversible speed controller can be adjusted , the best coating speed: 4.5m / min
17)The coated liner bar can be adjusted to control the roll tension
18)The heating bar, the rubber roller and reservoir can be quickly disassembled separated from the host, it is perfect to clean adhesive residue.


Specifications


Maximum coating width
280mm
Coating length
unlimited
Coating speed
adjustable, the best coating speed is 4.5m/min
Dimension
1200×620×550mm(L*W*H)
Weight
about 120kg
Power source
1 phase, AC 220V
Rate of power
1050W



Product Effects

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating MachineAutomatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating MachineAutomatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine


Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine
Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine
Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine


Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Company Information



LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years.
LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine



Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine


Automatic Coater Hot Melt Adhesive Tape Film Roller Coating Machine

Our Services


If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.


3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.


4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
