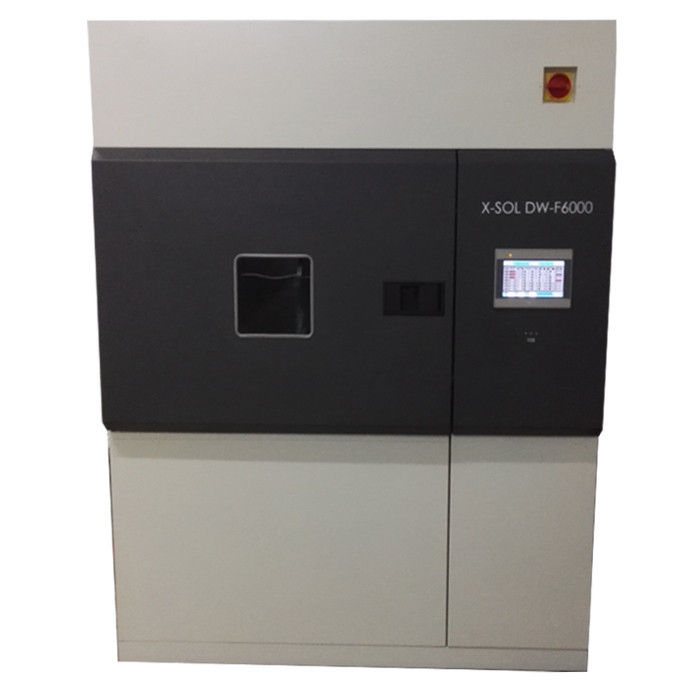

Electronic Programmable Xenon Arc Weathering Climatic Test Chamber

Electronic Programmable Xenon Arc Weathering Climatic Test Chamber
Electronic Programmable Xenon Arc Weathering Climatic Test Chamber Electronic Programmable Xenon Arc Weathering Climatic Test Chamber Electronic Programmable Xenon Arc Weathering Climatic Test Chamber Electronic Programmable Xenon Arc Weathering Climatic Test Chamber

Large Image :  Electronic Programmable Xenon Arc Weathering Climatic Test Chamber

Product Details:
Place of Origin: Dongguan
Brand Name: LIYI
Certification: ISO
Model Number: XD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Pending negotiation
Packaging Details: plywood case
Delivery Time: 5-20days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 100 units per month

Electronic Programmable Xenon Arc Weathering Climatic Test Chamber

Description
Power: Electronic, AC380V±10% 50±0.5HZ Material: SUS304 Stainless Steel
Sensor: Platinum Resistance Pt 100Ω/mv Temperature Range: RT~80°C
Certificate: CE ISO Power Supply: 220V 50Hz
High Light:

environmental room

,

environmental cabinet

Electronic Programmable Xenon Arc Weathering Climatic Test Chamber



Product Description


Xenon Arc Testing machine is a comprehensive climate testing machine, can do climatic aging test and the

lightfastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature,

rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existingmaterials, or assessment of change in material composition.



Corresponding standard:



GB12831-86 Vulcanized rubber artificial climate (xenon lamp) Aging Test Method

GB/T1644.2-1999Plastics laboratory light exposure test method

GB/T8427-89 textile color fastness test, resistance to artificial light fastness xenon arc

GB/T8430-98 textile color fastness test, resistance to artificial light fastness xenon arc

GB/T1865-97 Paints, varnishes, artificial weather aging and artificial radiation exposure

GB/T16991-97 textile color fastness test,

GB/T5137.3-96 simulated climate test method of resistant to radiation, heat, humidity, burning

GB/T16259-96 color building materials, artificial climate accelerated aging test method.

GB/T2423.24-95 Electronic and Electrical Products Environmental Testing Part II: test method, testing SQ: Simulation of solar

radiation on the ground



Applicable industries:



Xenon Arc Testing machine applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ... and so on.



Specifications



Model LY-XD150
Test Chamber Size D×W×H 500*600*500mm
Index Temperature range RT~80°C
Humidity range 65% to 98%R·H
Spray time 1 to 9999min, abjustable
Spray cycle 1-240min, interval adjustable
Spectral wavelength 290nm to 800nm (550w/m2)
light source Full spectrum xenon lamp (air-cooled)
Xenon lamp power 2.5 kw (longevity: 1600H)

Control

system

Time controller Import controller from Moeller
Accourate range Temperature: ±0.1 degree / humidity: ±0.1R·H
Sensor Platinum resistance Pt 100Ω/mv
Heating system

Independent system,

nickel chromium alloy electric heating type heater

Humidity system stainless steel, external Isolated humidifier
Blackboard temperature Bimetal thermometer blackboard 55~75 degree
Water supply

Humidification water supply with automatic control,

xenon lamp cooled by water recycling

Temperature controller Imported controller
humidity Irradiation: 30%~65%RH darkly: up to 90%RH
Cycle system low-noise air-conditioning-type motors, multi-leaf-type centrifugal wind wheel
material Outside material Advanced spray color plate /SUS304 stainless steel
Inside material SUS304 stainless steel
Sample holder material SUS304 stainless steel
insulation High and low temperature aging of silicone rubber
standard

a set of radiation-proof glass window,

dynamic testing sample shelf 1, xenon lamp tube 2

protector

Leakage, short circuit, over-temperature, water shortages, motor overheating,

over-current protection.

Power AC380V±10% 50±0.5HZ , Three-phase five-wire system
Environmental temperature ±5+30 ≤85%R·H



Working conditions:

Item Instruction
Power 380±10%v;50Hz, 3 phase 5 lines;
Environment temperature RT.+5~+35°C
Environment humidity ≤85%R.H;



Product Effects



Electronic Programmable Xenon Arc Weathering Climatic Test Chamber 0Electronic Programmable Xenon Arc Weathering Climatic Test Chamber 1

Electronic Programmable Xenon Arc Weathering Climatic Test Chamber 2

Electronic Programmable Xenon Arc Weathering Climatic Test Chamber 3

Electronic Programmable Xenon Arc Weathering Climatic Test Chamber 4



Electronic Programmable Xenon Arc Weathering Climatic Test Chamber 5





Electronic Programmable Xenon Arc Weathering Climatic Test Chamber 6



Electronic Programmable Xenon Arc Weathering Climatic Test Chamber 7



Company Information



LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



Electronic Programmable Xenon Arc Weathering Climatic Test Chamber 8



Electronic Programmable Xenon Arc Weathering Climatic Test Chamber 9



Electronic Programmable Xenon Arc Weathering Climatic Test Chamber 10



Electronic Programmable Xenon Arc Weathering Climatic Test Chamber 11



Our Services


If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.



1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.



2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.



3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
