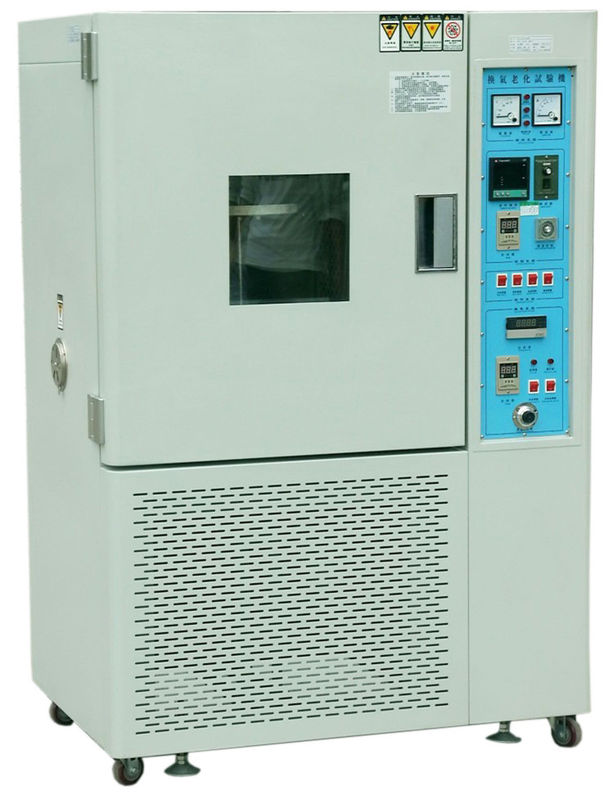

Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven

Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven
Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven

Large Image :  Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven

Product Details:
Place of Origin: Dongguan
Brand Name: LIYI
Certification: ISO
Model Number: CY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Pending negotiation
Packaging Details: plywood case
Delivery Time: 5-20days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 100 units per month

Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven

Description
Power: Electronic Usage: Process Testing Machine
Temperature Range: RT+10°C~60°C Ozone Concentration Range: 0~500pphm (or Custom Made)
Ozone Flow Rate: 12~16mm/s Inner Material: SUS 304 Stainless Steel
Inner Chamber Size: All Size Customize OEM: Offered
High Light:

environmental room

,

environmental testing equipment

Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven



Instructions:
supplier rubber ozone aging test chamber is mainly suitable for polymer materials and products (rubber) of the resistance to ozone aging performance test. Ozone content in the atmosphere is very low, but it is the main factors of polymer materials aging. Ozone aging test chamber simulating and strengthen the ozone condition in the atmosphere, get approximate to actual use or reproduction of the test results in a short time. The studay of ozone effect regulation to rubber products, quickly identify and evaluate rubber materials resistance to ozone and antiozonant protection efficiency method,and then take effective aging proof measures to improve the service life of rubber products.



Corresponding standards:

JIS K 6259 , ASTM1149 , ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003, GB 2951



Applicable industries:
supplier rubber ozone aging test chamber is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.

Characteristics:

supplier rubber ozone aging test chamber Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.



Specifications:

Model LY-CY-80 LY-CY-150 LY-CY-225 LY-CY408 LY-CY-800 LY-CY-1000
Inner size W*H*D(cm) 40*50*40 50*60*50 50*75*60 60*85*80 80*100*100 100*100*100
Outer size W*H*D(cm) 85*140*95 95*150*115 95*165*115 105*175*135 145*190*135 155*195*150
Inner material SUS 304 stainless steel
Outer material SPCC Painted
Temperature range RT+10°C~60°C
Temperature deviation ±0.5°C (no load)
Temperature uniformity ±2°C (no load)
Ozone concentration range 0~500pphm (or custom made)
Ozone concentration deviation 10%
Ozone flow rate 12~16mm/s
Sample shelf roating speed 20~25mm/s
Controller TEMI 880 touch screen programmable controller
Ozone generator using voltage silent discharge tube produce ozone
Power AC 380V 3 phase 4 lines



Safty device:
1. Power overload, short circuit protection
2. Grounding protection
3. Water protection
4. In order to protect the equipment, all alarm will automatically cut off the power supply, and an audible tip.



Environmental conditions:
1. The temperature: 15 °C ~ 35 °C
2. Relative humidity: no more than 85% RH
3. No around strong vibration, no strong electromagnetic field effect
4. No dust and high concentration around the corrosive substance
5. No direct sunlight or other heat source direct radiation
6. Around without strong airflow, when the surrounding air need compulsory stream.
7. Test box should be placed smooth, maintain a level.
8. Test box around the there shall be a certain distance, convenient maintenance operation



Product Effects

Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven 0



Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven 1



Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven 2



Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven 3



Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven 4



Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven 5



Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven 6

Company Information



LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven 7



Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven 8



Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven 9



Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven 10



Our Services



If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.



1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

3.Commitment:We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Environmental Test Chamber / Stainless Steel Ozone Aging Test Oven 11
