Product Details:
|
| Power Supply: | Electronic, 220V/50HZ Or 110V/60HZ | Motor: | Panasonic Sevor Motor |
|---|---|---|---|
| Operation: | Computer Windows Operation | Capacity: | 1,2,5,10,20,50,100,200,500kg Optional |
| Test Speed: | 0.1~500mm/min | Stroke: | 850mm (contain Grips, Can Customize) |
| Accuracy: | 0.5% Or Better | Resolution: | 1/250,000 |
| Highlight: | tensile strength testing machine,tensile testing equipment |
||

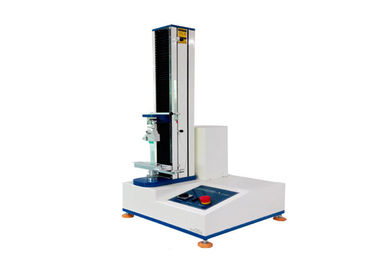

Tensile Strength And Elongation Test Equipment With Panasonic Sevor Motor
Uses:
This Windows Operation Tensile Strength And Elongation Test Equipment is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Design Standards:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, ASTM D638, ISO527
Characteristics:
1. That Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2. Have steady performace, high accuracy, powerful software function and easy operation.
3. Use the USA high-precision load cell.
| Model | LY-1068 | 1065 |
| Range of speed | 50~500mm/min | 0.1~500mm/min |
| Motor | AC motor | Panasonic sevor motor |
| Resolution | 1/150,000 | 1/250,000 |
| Capacity choice | 1,2,5,10,20,50,100,200,500kg optional | |
| Whole stroke | 850mm (contain grips, can customize) | |
| Accuracy | ±0.5% | |
| Force relative error | ±0.5% | |
| Displacement relative error | ±0.5% | |
| Test speed relative error | ±0.5% | |
| Effective testing space | 120mmMAX | |
| Accessories | computer, printer, system operation manual | |
| Optional accessories |
stretcher, air clamp
|
|
| Operation method | Windows operation | |
| Weight | 70kg | |
| Dimention | (W×D×H)58×58×145cm | |
| Power | 1PH, AC220V, 50/60Hz | |
Safety Device:
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics
Product Effects
Company Information
LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
