Product Details:
|
| Weight: | About 85 Kg | Power: | Electronic, 220V/50HZ |
|---|---|---|---|
| Capacity: | 5,10,20,50,100,200,500,1000,2000,5000KG Optional | Senor: | Imported High Accuracy Sensor |
| Optional Parts: | Lenovo Computer | Lifting Control: | Computer Control Or Manual Button Control |
| Certificate: | CE ISO | Operation System: | TM2012 |
| High Light: | tensile strength testing machine,tensile testing equipment |
||

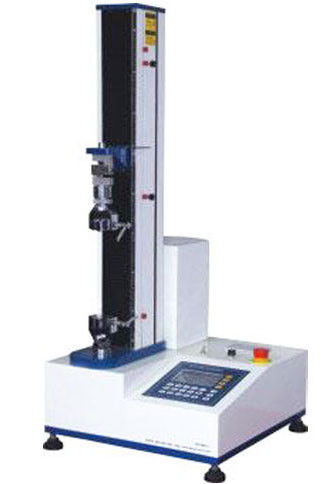

LIYI Digital Display Universal Tensile Tester Peel Testing Machine
Application
The tensile strength testing machine also known as a materials testing machine , is applicable to testing tensile stress , compressive stress , shearing force , peeling force , and elongation of materials , components , and finished product for metal , plastic , rubber , textile , synthetic chemicals , wire and cable , leather , ect.
1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.

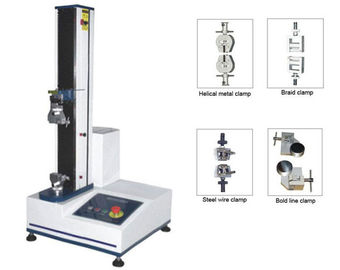

2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression
strength, etc.
Standards
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7,ect.
Characteristics
1. The structure of tensile strength testing machine is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Paper tensile strength testing machine use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.

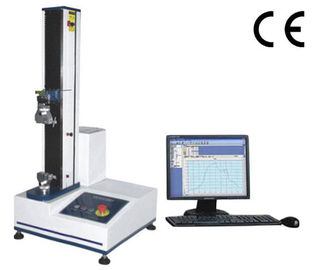

3. Paper tensile strength testing machine use the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
| Model | LY-1065 | LY-1068 |
| Capacity | 1,2,5,10,20,50,100,200,500,1000,2000 optional(or customize) | |
| Accuracy level | 0.5 | |
| Effective pull space | 1200mm(contain grips) | |
| Effective test width | 400mm | 320mm |
| Effective test force range | 0.02/100~100% | |
| Speed accuracy | Less than ±0.5% | |
| Displacement accuracy | Less than ±0.5% | |
| Deformation test accuracy | Less than ±0.5% | |
| Sensor | high accuracy sensor | |
| Test force resolution | 1/250,000 | 1/150,000 |
| Test Speed | 0.1~500mm/min | 50~500mm/min |
| Motor system | Panasonic servo motor + Panasonic sevor drive | AC motor + AC drive |
| Software controlling system | Fully computer control, can do constant stress, constant strain, constant displacement,ect. test | |
| Lifting control | Computer control or manual button control | |
| Grips | Customize according to customer requirements | |
| Optional parts | Lenovo computer | |
| Dimension | 80×50×150cm | |
| Weight: | About 85 kg | |
| Operation method | computer control | |
| Operation system | TM2102 | |
| Power | 1Ø,220V/50HZ | |
Safety device:
Stop way: the upper and lower limit safety set, the emergency stop button, strength and elongation elongation program set, the specimens are damaged sensor.
