Product Details:
|
Power: | Electronic, 220V/50HZ | Usage: | Tensile Tester Machine |
---|---|---|---|
Weight: | About 145 Kg | Capacity: | 5,10,20,50,100,200,500,1000,2000,5000KG Optional |
Accuracy Level: | 0.5% | Senor: | Imported High Accuracy Sensor |
Lifting Control: | Computer Control Or Manual Button Control | Operation System: | TM2012 |
Highlight: | tensile strength testing machine,tensile testing equipment |

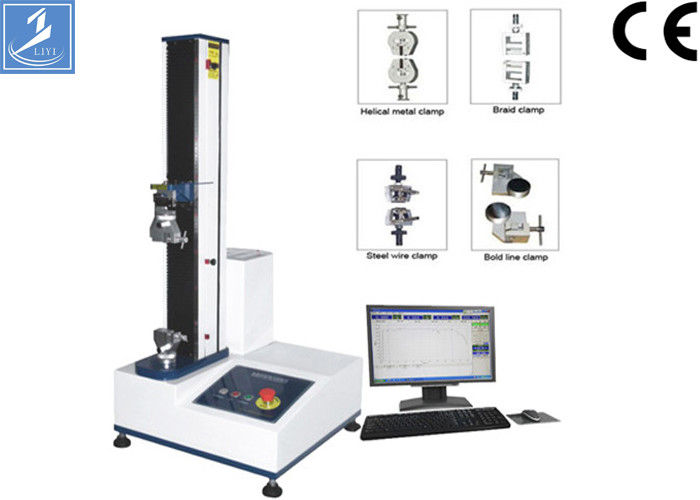

Digital Display Testing Machine Computer Metal Tensile Strength Test Equipment laboratory
This machine also known as a materials testing machine , it is applicable to testing tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, ect.
Computer Metal Tensile Strength Test Equipment specially configured to evaluate tensile strength of specimens. Our tensile testers will measure characteristics such as ultimate tensile strength, yield strength, elongation and modulus. Each tensile test machine is configured to your testing needs by our application engineers with the correct controller, grips, and accessories. Due to our modular machine design, your tensile tester can also be equipped to perform other applications such as compression, cyclic, shear, flexure, bend, peel, and tear just by adding fixtures.
Application Industries
Computer Metal Tensile Strength Test Equipment is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.
Specification:
Model | LY-1065 | LY-1068 |
Range of speed | 0.1~500mm/min | 50~500 mm/min |
Motor | Panasonic sevor motor | AC motor |
Resolution | 1/250,000 | 1/150,000 |
Capacity choice | 1, 2, 5,10, 20, 50,100, 200, 500 kg optional | |
Stroke | 850 mm (can be customized) | |
Accuracy | ± 0.5 % | |
Force relative error | ± 0.5 % | |
Displacement relative error | ± 0.5 % | |
Test speed relative error | ± 0.5 % | |
Effective testing space | 120 mm | |
Accessories | Computer, printer, system operation manual | |
Optional accessories | Stretcher, air clamp | |
Operation method | Windows operation | |
Weight | 70 kg | |
Dimension | (W * D * H) 58 * 58 * 145 cm | |
Power | 1 PH, AC 220 V, 50/60 H |
Safety Device:
Stroke protection | Machinery, computer double protection, prevent over preset |
Force protection | system setting |
Emergency stop device | Handling emergencies |
