Product Details:
|
| Power: | Electronic, AC380V±10% 50±0.5HZ | Material: | SUS304 Stainless Steel |
|---|---|---|---|
| Sensor: | Platinum Resistance Pt 100Ω/mv | Temperature Range: | RT~80°C |
| Certificate: | CE ISO | Power Supply: | 220V 50Hz |
| High Light: | environmental room,environmental cabinet |
||

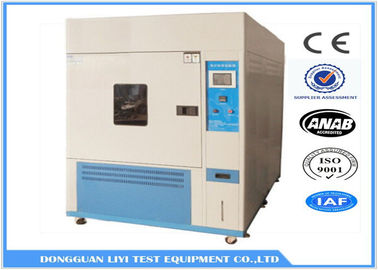

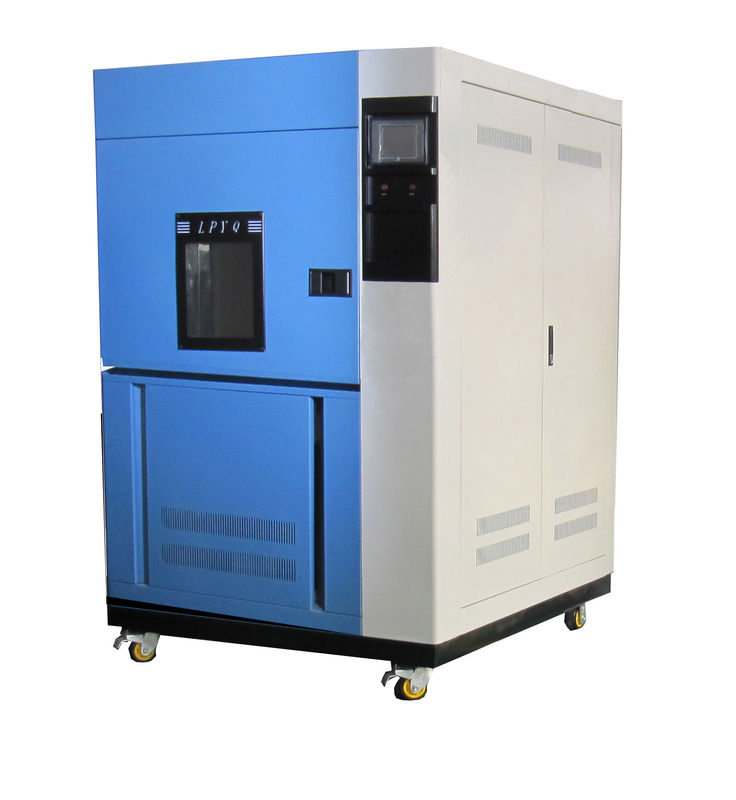

Weathering Aging Environmental Test Chamber Stainless Steel Xenon Lamp
Xenon Arc Testing machine is a comprehensive climate testing machine, can do climatic aging test and the
lightfastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature,
rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existingmaterials, or assessment of change in material composition.
Corresponding standard:
GB12831-86 Vulcanized rubber artificial climate (xenon lamp) Aging Test Method
GB/T1644.2-1999Plastics laboratory light exposure test method
GB/T8427-89 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T8430-98 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T1865-97 Paints, varnishes, artificial weather aging and artificial radiation exposure
GB/T16991-97 textile color fastness test,
GB/T5137.3-96 simulated climate test method of resistant to radiation, heat, humidity, burning
GB/T16259-96 color building materials, artificial climate accelerated aging test method.
GB/T2423.24-95 Electronic and Electrical Products Environmental Testing Part II: test method, testing SQ: Simulation of solar radiation on the ground
Applicable Industries:
Xenon Arc Testing machine applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ... and so on.
| Model | LY-XD150 | ||
| Test Chamber Size D×W×H | 500*600*500mm | ||
| Index | Temperature range | RT~80°C | |
| Humidity range | 65% to 98%R·H | ||
| Spray time | 1 to 9999min, abjustable | ||
| Spray cycle | 1-240min, interval adjustable | ||
| Spectral wavelength | 290nm to 800nm (550w/m2) | ||
| light source | Full spectrum xenon lamp (air-cooled) | ||
| Xenon lamp power | 2.5 kw (longevity: 1600H) | ||
|
Control system |
Time controller | Import controller from Moeller | |
| Accourate range | Temperature: ±0.1 degree / humidity: ±0.1R·H | ||
| Sensor | Platinum resistance Pt 100Ω/mv | ||
| Heating system |
Independent system, nickel chromium alloy electric heating type heater |
||
| Humidity system | stainless steel, external Isolated humidifier | ||
| Blackboard temperature | Bimetal thermometer blackboard 55~75 degree | ||
| Water supply |
Humidification water supply with automatic control, xenon lamp cooled by water recycling |
||
| Temperature controller | Imported controller | ||
| humidity | Irradiation: 30%~65%RH darkly: up to 90%RH | ||
| Cycle system | low-noise air-conditioning-type motors, multi-leaf-type centrifugal wind wheel | ||
| material | Outside material | Advanced spray color plate /SUS304 stainless steel | |
| Inside material | SUS304 stainless steel | ||
| Sample holder material | SUS304 stainless steel | ||
| insulation | High and low temperature aging of silicone rubber | ||
| standard |
a set of radiation-proof glass window, dynamic testing sample shelf 1, xenon lamp tube 2 |
||
| protector |
Leakage, short circuit, over-temperature, water shortages, motor overheating, over-current protection. |
||
| Power | AC380V±10% 50±0.5HZ , Three-phase five-wire system | ||
| Environmental temperature | ±5+30 ≤85%R·H | ||
Working conditions:
| Item | Instruction |
| Power | 380±10%v;50Hz, 3 phase 5 lines; |
| Environment temperature | RT.+5~+35°C |
| Environment humidity | ≤85%R.H; |
Product Effects
