Product Details:
|
| Warranty: | 1 YEAR, 12 Months | Key Selling Points: | High Productivity |
|---|---|---|---|
| Accuracy: | ±0.5°C, ±2.5%RH | Heating Rate: | ≤3°C/min |
| Cooling Rate: | Average 1°C/min | Operating Interface: | Touch Screen |
| Controller: | TATO | Temperature: | -70~150 |
| High Light: | constant temperature and humidity chamber,stability test chamber |
||

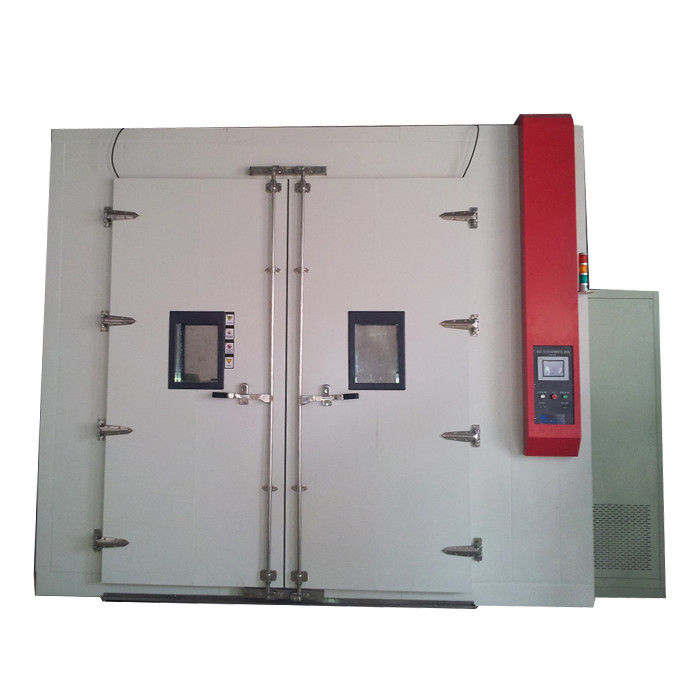

LY-WR White Walk Freezer Tester Temperature And Humidity Control Cabinet
The usage:
It is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
Characteristics :
Step-in high and low temperature test box is a necessary test equipment in the new energy industry. It can carry out high temperature, low temperature, temperature cycle, rapid temperature change, high and low temperature alternating humidity and heat test according to GB/T 10589,GBT/10586,GB/T 2423.1 and other standards. Its characteristics are as follows:
1. It can adopt integral structure or combination of reservoir plate units, the content area can be arbitrarily expanded and easy to disassemble and
assemble
2. The insulating layer adopts high-strength polyurethane (PU) foaming and high-density glass fiber cotton, which can avoid energy loss
3. Multilayer filtration and water replenishing device and automatic water replenishing device. There is no need for manual water addition and automatic water scarcity protection.
4. Cases are equipped with test holes, which can be used for external test power lines or signal lines;
5. Modular refrigeration units can ensure manufacturing quality, and maintenance and replacement are very convenient;
6. Low temperature and continuous effective operation for 1000 hours without frost, and temperature does not return. Rise.
Warranty:
1.12 months warranty after delivery.
2. Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
3. Over 10 engineers available to service machinery overseas.
4. Free spare parts replacement within warranty period.
5. Beyond guarantee period, we will charge market price for spare parts.
The Main Technical Parameters:
| Model | LY-5200T Walk In Environmental Chamber |
| System | Balanced Temperature & Humidity Control System |
| Temp. range | -70°C~150°C |
| Humid. range | 20 ~ 98 percent R.H. |
| Temp. & Humid. accuracy | ± 0.3°C; ± 2 percent R.H |
| Temp. & Humid. regularity | ± 1°C; ± 3 percent RH |
| Resolution | 0.1°C, 1 percent, P.I.D control |
| Heating up | -40°C ~ +100°C within 45 min |
| Heating down | 20°C~ -20°Cwithin 40min |
| Interior dimension(W×D×H) | 60×80×85cm |
| Exterior dimension(W×D×H) | 120×135×175cm |
| Interior material | Stainless steel plate(SUS304) |
| Exterior material | Stainless steel plate(SUS304) |
| Insulation | Rigid foam |
| Refrigeration system | Air cooled, Hermetic compressor, single stage refrigeration system. |
| Display | LCD |
| Safety devices | No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
| Accessories | Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp. |
| Weight | Approx. 400kg |
| Power | AC220V±10 percent 50/60Hz |
