Product Details:
|
| Temp&Humi Fluct: | ±0.5℃;±2.5%RH | Temperature Contro: | A: -40℃~150℃,B: -60℃~150℃ ,C: -70℃~150℃ |
|---|---|---|---|
| Color: | White, Blue And No-painted | Volume: | 408L |
| Inner Size(cm): | 60x85x80 | Humidifier: | Semi-closed Steam |
| High Light: | 80L Temperature Humidity Test Chamber,Touch Screen Temperature Humidity Test Chamber,CE Temperature Humidity Test Chamber |
||

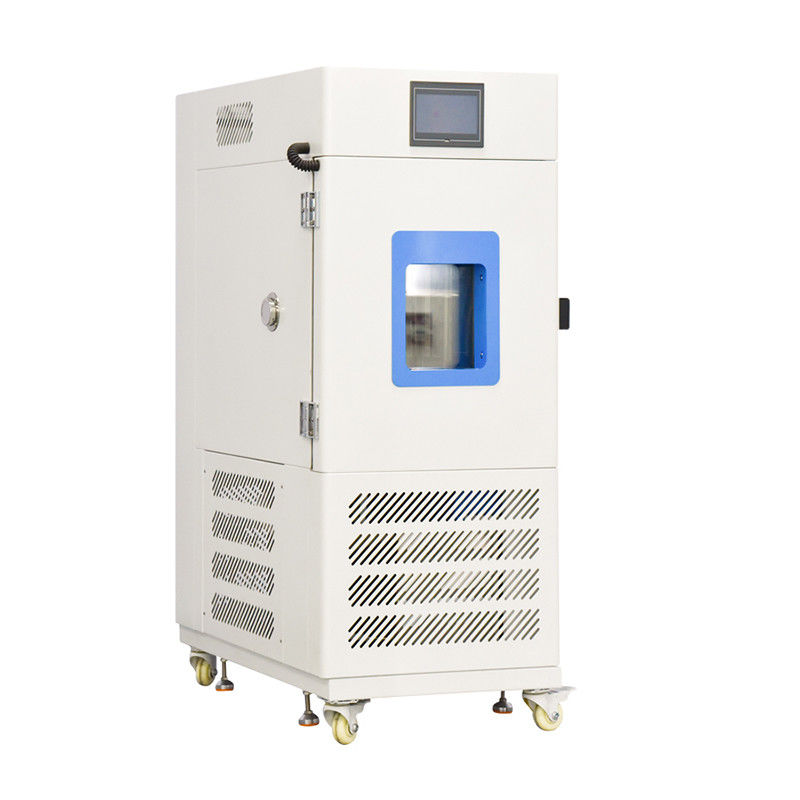

80L Temperature and Humidity Test Chamber with touch screen controller
Introduction:
Temperature and Humidity Test Chamber mainly used in aerospace, information and electronic fields. This equipment is applied to test environmental adaptability and reliability of instruments or meters, electrical products, materials, spare parts and equipment when they are in high, low temperature or low pressure these three condition separately or simultaneously. Meanwhile, it can also test electrical performance parameters of the test specimens after switching on the current.It is able to simulate a wide range of temperature and humidity environment condition for testing various products and components. It is widely used for basic thermal cycling test and accelerated stress test. We provide 6 standard models, test cabinet from 80L to 1000L, customized size is also available.
Standards:
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566 etc.
Characteristics:
· High performance and quiet operation
· Space-saving designed for flush installation to wall
· Full thermal break around doorframe
· One 50mm diameter cable port o left, with flexible silicone plug
· Direct water supply connection for continuous operation
· Accurate wet/dry-bulb humidity measurement system for easy maintain
Specifications:
| Model | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 | |
|
Inner Size W×H×D(cm) |
40×50×40 | 50×60×50 | 60×85×80 | 60×85×80 | 100×100×80 | |
|
Outside Size W×H×D(cm) |
93×155×95 | 100×148×106 | 117×166×91 | 140×176×101 | 170×186×111 | |
| Volume (V) | 80 L | 150L | 225L | 408L | 800L | |
| Temp and Hum Range |
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
|||||
| Function | Fluctuation | ±0.5°C ±2.5%RH | ||||
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) | |||||
|
Controller Analytical Accuracy |
±0.3°C ±2.5%RH | |||||
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | |||||
| Refrigeration Way | Single stage compression refrigeration | |||||
| Refrigerator | French Tecumseh | |||||
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) | |||||
| Condensing Way | Air-cooled or water-cooled | |||||
| Water Supplying Way | Automatic cycling water supply | |||||
| Standard Accessories |
1 Observe window(double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
|||||
| Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system |
|||||
