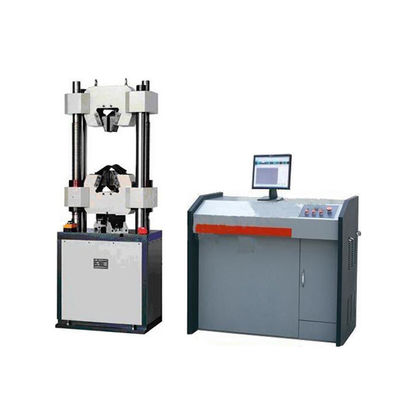

Large Image :  300kN 600kN High Force Super Tensile Testing Machine Built In Hydraulic Clamp

Product Details:
Place of Origin: China
Brand Name: LIYI
Certification: CE,ISO
Model Number: LYH-300D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 10,000-30,000/set
Packaging Details: wooden package
Delivery Time: 20 days
Supply Ability: 20sets per month

300kN 600kN High Force Super Tensile Testing Machine Built In Hydraulic Clamp

Description
Test Force Accuracy: ±1% Displacement Resolution: 0.01mm
Deformation Test Accuracy: ±0.5% Bending Test Branch Space: 450 Mm
Piston Stroke: 250mm Clamp Method: Built-in Hydraulic Clamp
Built-in Hydraulic Clamp: 6500kg Branch Width: 140 Mm
Branch Diameter: 30mm
High Light:

300kN Tensile Testing Machine

,

Tensile Testing Machine with Hydraulic Clamp

,

600kN Digital Tensile Testing Machine

High Performance Super Tensile Testing Machine Built - In Hydraulic Clamp



Material Compression Testing Apparatus



1. Material Compression Testing Apparatus is mainly used to execute the tension, compression, bending, shearing etc. test for metal materials. Attached simple accessories and devices, it can be used to achieve many kinds of mechanical performances.

2. The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression andbending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.

3. Material Compression Testing Apparatus adopts Load cell measure load, use computer control & display load,



Tester Model LYH-300D LYH-600D LYH-1000D LYH-2000D
Max load(kN) 300 600 1000 2000
Test range 6KN-300kN 12KN-600kN 20KN-1000kN 40KN-2000kN
Test force accuracy ±1%
Displacement resolution 0.01mm
Deformation test accuracy ±0.5%
Constant force/ displacement controlling accuracy

SV<10%FS, less than ±1.0% of SV

SV≥10%FS, less than ±0.5% of SV

Deformation rate control accuracy

Rate <0.05%FS, less than ±2.0% of SV

Rate ≥0.05%FS, less than ±0.5% of SV

Max drawing space 800mm 800mm 850mm 800mm
Max compressing space 700mm 700mm 700mm 700mm
Flat sample clamp thickness 0-15mm 0-15mm 0-40mm 0-60mm
Round sample clamp diameter φ6-φ26mm φ13-φ40mm φ13-φ60mm φ15-φ70mm
Bending test branch space 450 mm
Branch width 140mm
Branch diameter 30mm
Piston Stroke 250mm
Clamp method Built-in Hydraulic clamp
Outer demension Machine 990×600×2435mm 990×600×2453mm 1100×770×2490mm

1160×1100×

2600mm

Oil source 1100×700×950mm
Complete weight 2800kg 3000kg 4700kg 6500kg
