Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber

Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber
Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber

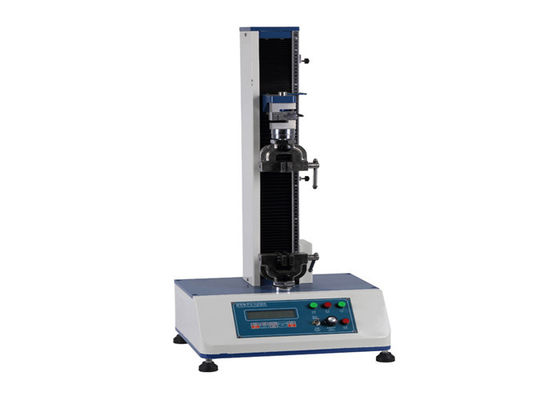

Large Image :  Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber

Product Details:
Place of Origin: CHINA
Brand Name: LIYI
Certification: CE ISO
Model Number: LY-1068
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Strong Plywood case
Delivery Time: 15 days after receiveing deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 pieces per month

Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber

Description
Model: LY-1068 Range Of Speed: 50~500mm/min
Motor: AC Motor Resolution: 1/150,000
Capacity Choice: 1、2、5、10、20、50、100、200、500kg Optional Whole Stroke: 850mm (can Customize)
Accuracy: ±0.5% Weight: 70kg
Dimension: (W×D×H)58×58×145cm Power: 1PH, AC220V, 50/60Hz
High Light:

Single Column Tensile Strength Testing Machine

,

Tensile Strength Testing Machine For Hardware

,

500kg Machine Used To Test Tensile Strength

Automatic Electronic Tensile Strength Testing Machine Universal Tensile Strength Testing Machine Price



Product Description

This series of Tensile Testing Equipment is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.



Application

This series of Tensile Testing Equipment is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,...etc. of specimen, semiproduct and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. , which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.



Specification of main engine

1. Motor system: Panasonic servo motor +Panasonic servo driver +ball screw (Taiwan) +Leeming reduction gears +synchronous belt driver

2,Computer servo system :Desktop computer servo control tensile tester dedicated system

3, Using windows interface to test software it can achieve to set speed, load, power time, Breakpoint proportion ,

much order control mode and meet different test requirement.

4.Displacement resolution: 0.001mm

5. Safety device: overload emergency stop device, fluctuation travel limit device, leakage automatic broken electricity

system, automatic breakpoint stop function

6, Display modes: Windows Interface display





Software functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7.With many units of measurement, the metric system and british system can switch;

8.Have automatic calibration function;

9.Have user-defined test method function

10.Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;

Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber 0





Parameter:



Model

LY-1068

Range of speed

50~500mm/min

Motor

AC motor

Resolution

1/150,000

Capacity choice

1,2,5,10,20,50,100,200,500kg optional

Whole stroke

850mm (can customize)

Accuracy

±0.5%

Force relative error

±0.5%

Displacement relative error

±0.5%

Test speed relative error

±0.5%

Effective testing space

650mmMAX

Accessories

computer, printer, system operation manual

Optional accessories

stretcher, air clamp



Operation method

Windows operation

Weight

70kg

Dimension

(W×D×H)58×58×145cm

Power

1PH, AC220V, 50/60Hz

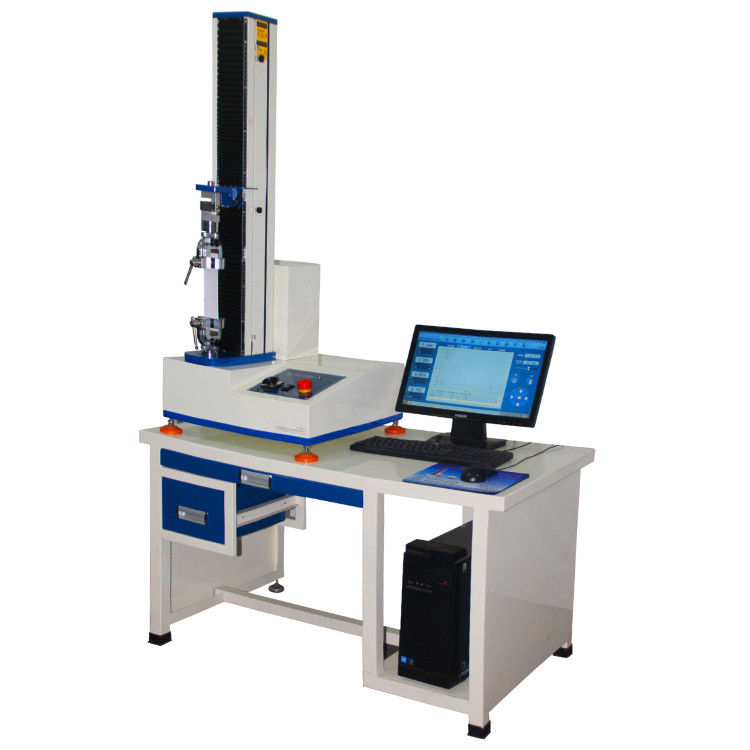

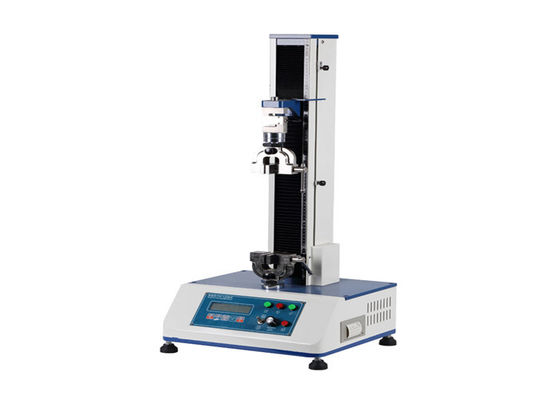

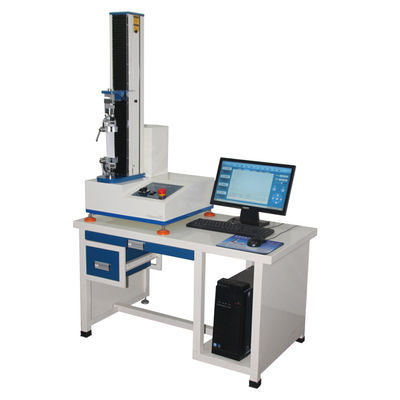

Photo Show:

Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber 1Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber 2



About Our Company:



Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing,marketing all kinds of environmental equipment.Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.



To strengthen the quality awareness,perfect management system,improve product credit,meet customers increasing requirements, our company brought into ISO9001:2008 international quality management system and obtained the certificate: N0006997-1.



Our company will continue to develop, innovate and keep faith. We combine with the international testing syandards and the specific demands of customers that may establish a new banner in Chinese testing industry.

Single Column Electronic Tensile Strength Testing Machine For Hardware Rubber 3



Q: Are your company a trading one or a factory ?

A: Factory + trade (integration),10 years focusing on test instruments field,1 years exporting experience.

OEM is also acceptable for us.

Q: How to choose the most suitable products?

A: Our professional team will give you the best suggestion as long as you tell us what kind of test you

need to do and the required specification.

Q: What's the delivery term?

A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to

arrange hotel and pick up you from airport.

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.

Q: What is the order process?

A: Inquiry - quotation - communication - order confirming - deposit payment - production - testing and

debugging - balance payment - packing - delivery - customer receiving - after service.

Q: How to install and use the product?

A: The product is shipped with an operatin. (English version)
