Product Details:
|
| Warranty: | 12 Months | Power: | Electronic, Electronic,220V,50HZ |
|---|---|---|---|
| Controller: | English Touch Screen Controller | Test Chamber Size: | Customize |
| Sample Shelf Size: | D700mm | Dripping Board Size: | 1000*1000mm |
| Swiping Pipe Size: | R400mm/500mm/600mm | Keyword: | Spray Test Room |
| Standard: | IEC60529 | Customized Support: | OEM, ODM |
IEC60529 ISO 20653 Rain Spray Simulation Resistance Pressure Water Splash Test Machine
Product Description:
This Programmable rubber/ plastic Rain Test Chamber is used to simulating the lighting , auto parts , household appliances and other products in condition of moisture or rain , to see the influence of water to the products. Through this can test the resistance to the rain penetration and moisture proof ability of products.
Standards:
Programmable rubber/ plastic Rain Test Chamber through a rigorous scientific design, making it can realistically simulate dripping rain , splashing water , water spray and other environment. It uses advanced controlling system and inverter technology , making the rotation angle of the specimen frame, the swing angle of the oscillating bar and the water swing rate can be automatically adjusted.
Specifications:
| Model | LY-IPX34 |
| Turntable size(L*D*H)mm | 1300*1300*1300 |
| Outer size(L*D*H)mm | 1800*1520*1950 |
| Pendulum size | R600mm(Additive matching R400mm,R200mm) |
| Nozzle size | Diameter 0.4mm |
| Pendulum diameter | 15mm |
| Sample turntable diameter | Diameter 600mm(Additive matching R400mm,R200mm) |
| Rate of flow | 0-3L/min |
| Turntable load bearing | 50KG |
| Turntable height range | 550-1000mm |
| Rotating speed of turntable | 1-5r/min (precise adjustable) |
| Turntable rotation mode | Continuous positive / reverse rotation |
| Pendulum angle | 120º (IPX3), 350º (IPX4) or custom |
| Swinging velocity | 240 °roundtrip 4S , 720 °roundtrip 12s (precision control) or custom |
| Device power supply (DPS) | 220V |
| Test sample power supply | 220V |
| Device capacity | 1.0KW |
| Safety protection function | Leakage protection, water shortage protection, short circuit protection Etc. |

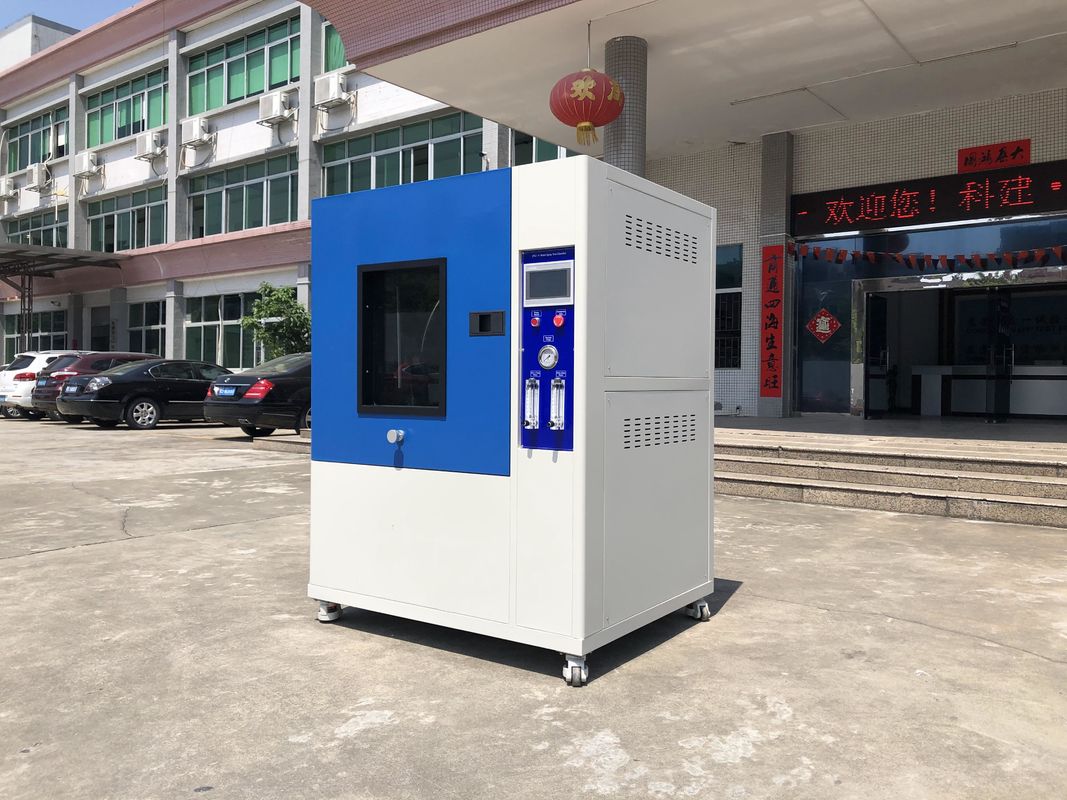

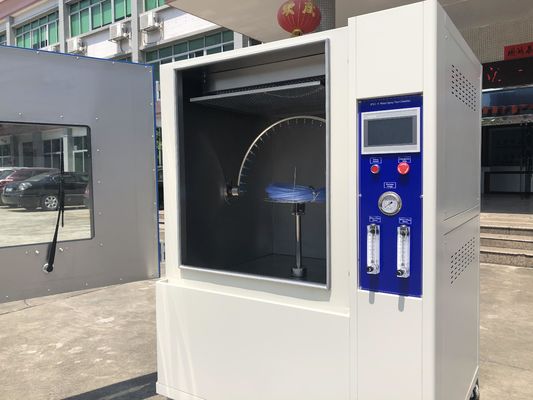

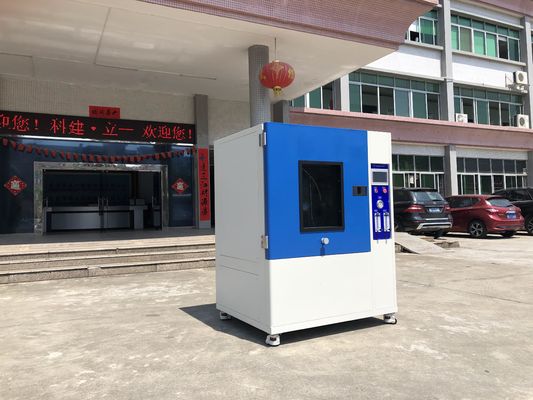

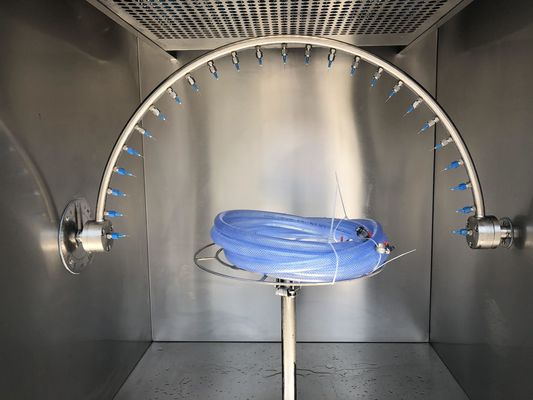

Reference Pictures:
