Product Details:
|
| Warranty: | 12 Months, 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Power: | Electronic, AC380V/50HZ Three-phase Four-wire Ac Power | Inner Size: | 400x350x300cm, Can Custom |
| Temperature Recovery Time: | Less Than 5min | Cooling System: | Water-cooled Or Air-cooled,Taikang Compressor In France |
| Controllor: | Programmable Temperature Controllor Imported From Japan | Resolution: | TEMPERATURE : 0.01centigrade/ TIME : 1 MIN |
| Temperature Deviation: | Less Than 2 Centigrade | Simulated Load IC（kg): | 3.5kg |
| Test Standard: | QC/T17-92,EIA 364-32,SJ/T10186-91Y73,GJB |

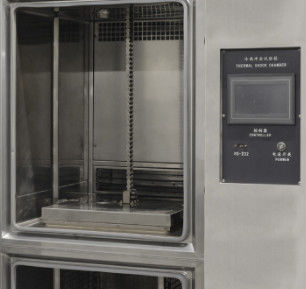

Liyi Heat Cold Cycling Chamber Temperature Tester Thermal Shock Machine
Thermal shock test chambers are used for “temperature shocking” a product under test. Usually a Thermal Shock Chamber consists of two chambers, one hot and another cold, with a test basket (which contains the product being tested) which moves between the two chambers (or zones) – either horizontally for vertically, depending on the configuration of the thermal shock chamber. This equipment is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.
| Inner Size(mm) | 400×350×300 | 400×500×400 | 500×600×500 | 500×750×600 |
| Temperature Range | High temperature chamber:RT~+150°C Low temperature:RT~-60°C | |||
| Temperature Deviation | Less than ±2°C | |||
| Temperature Conversion Time | Less than 10S | |||
| Temperature Recovery Time | Less than 5min | |||
| Material |
External material: SUS#304 Stainless steel plate Internal material:SUS#304 Stainless steel plate |
|||
| Coolting System |
Water-cooled or air-cooled, Tecumseh compressor in France, Environment friendly refrigerant |
|||

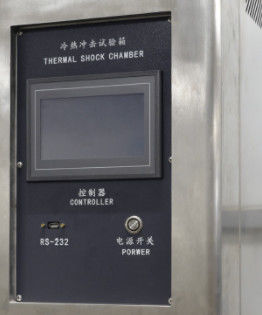

| Controllor | Programmable temperature controllor imported from Japan | |||
| Temperature Sensor | PT 100 *3 | |||
| Setting Range |
TEMPERATURE : -100.00+200.00°C / TIME : OH1M ~ 9999H 59M / CYCLE ~ 10000 CYCLE |
|||
| Resolution | TEMPERATURE : 0.01°C / TIME : 1 MIN | |||
| Output Mode | PID + PWM + SSR CONTROL METHOD | |||
| Simulated Load IC (KG) | 3.5kg | |||
| Standard Accessories | Cable hole, lighting equipment | |||
| Cooling System | Water-cooled/air-filled type | |||
| Power | AC380V/50HZ Three-phase four-wire ac power | |||
| Additional Features |
The outlet and return it checks for taste known control /CM BUS (RS-485) remote monitoring management system /Ln2 liquid nitrogen rapid cooling control device |
|||
| Remarks |
It can be customiazed according to customer demands. Technology index refer to product description.Delivery time within 45days. |
|||
