Product Details:
|
| Warranty: | 12 Months | Controller: | Touch Screen Controller |
|---|---|---|---|
| Temperature Deviatiation: | Less Than ±2°C | Temperature Recovery Time: | Less Than 5min |
| Temperature Sensor: | PT 100 *3 | Keyword: | Cold Shock Testing Chamber |
| Temperature Range: | -60~150℃ | Temperature Conversion Time: | Less Than 10S |
| Resolution: | TEMPERATURE : 0.01°C / TIME : 1 MIN | Cooling System: | Water-cooled/air-filled Type |
| Color: | Customer Required |

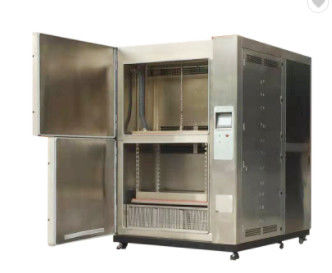

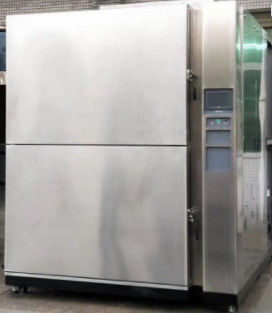

Liyi Hot Cold Shock Test Machine Caso de prueba de cambio de temperatura rapido Thermal Instruments Cold Shock Testing Chamber
Liyi thermal shock chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm, which is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality.
It meets the standard of MTL, IEC, JIS, GJB...
| Inner size(mm) | 400×350×300 | 400×500×400 | 500×600×500 | 500×750×600 |
| Temperature range | High temperature chamber: RT~+150°C Low temperature:RT~-60°C | |||
| Temperature deviation | Less than ±2°C | |||
| Temperature conversion time | Less than 10S | |||
| Temperature recovery time | Less than 5min | |||
| Material |
External material:SUS#304 Stainless steel plate Internal material:SUS#304 Stainless steel plate |
|||
| Coolting system |
Water-cooled or air-cooled, Tecumseh compressor in France, Environment friendly refrigerant |
|||
| Controllor | Programmable temperature controllor imported from Japan | |||
| Temperature sensor | PT 100 *3 | |||
| Setting range |
Temperature: -100.00 + 200.00°C Time: OH1M ~ 9999H 59M Cycle ~ 10000cycle |
|||
| Resolution | Temperature: 0.01°C / Time: 1min | |||
| Output mode | PID + PWM + SSR control method | |||
| Simulated load IC (kg) | 3.5kg | |||
| Standard accessories | Cable hole, lighting equipment | |||
| Cooling system | Water-cooled / air-filled type | |||
| Power | AC380V/50HZ Three-phase four-wire ac power | |||
| Additional features |
The outlet and return it checks for taste known control CM BUS (RS-485) remote monitoring management system Ln2 liquid nitrogen rapid cooling control device |
|||
