Product Details:
|
| Warranty: | 12 Months | Customized Support: | OEM, ODM |
|---|---|---|---|
| Material: | #SUS 304 Stainless Steel | UV Lamp: | UVA/UVB/UVC |
| Temperature Range: | RT+10°C~70°C | Ultraviolet Wavelength: | 290nm~400nm |
| Dimensions: | 70*135*145cm | Controller: | Touch Screen Programmable Controller |
| Function: | UV, Water Spray, Condensation | Himidity Range: | ≥95%R.H |
| Rate Of The Lamp: | 40W | Net Weight: | 70kg |

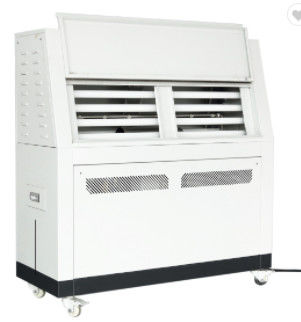

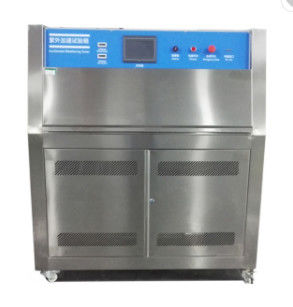

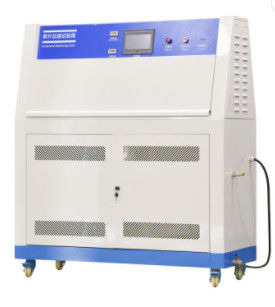

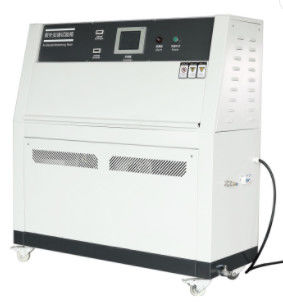

UV Weather Resistance Chamber Accelerated Weathering Tester Aging Testing Instrument
Liyi UV aging test machine can provide reliable aging test data to make the exact prediction of products' weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula.
Can be customized:
| Inside dimensions (cm) | 45×117×50 | |
| Outer dimensions (cm) | 70×135×145 | |
| Rate of work | 4.0(KW) | |
|
Performance index
|
Temperature range | RT+10℃~70℃ |
| Himidity range | ≥95%R.H | |
| Distance between lamps | 35mm | |
| Distance between samples and lamps | 50mm | |
| Specimen number | L300mm×W75mm, about 20pics | |
| Ultraviolet wavelength | 290nm~400nm UV-A340, UV-B313, UV-C351(state clearly in your order ) | |
| Rate of the lamp | 40W | |
| Controlling system | Controller | touch screen programmable controller |
| Illumination heating system | all independent system, nickel chrome alloy electrical heating type heater | |
| Condensation humidifying system | stainless steel shallow evaporative humidifier | |
| Blackboard temperature | double metal blackboard mometer | |
| Water supplying system | humidification water supplying automatic control | |
| Exposure way | moisture condensation way exposure, light radiation exposure | |
| Safety device | leakage, short circuit, super temperature, water shortage and over current protection | |
